Huawei E5788 Gigabit LTE Hotspot Available in Europe

The Huawei E5788u-96a Gigabit LTE Hotspot is now available for some network providers in Europe. The mobile WLAN router is currently the fastest mobile hotspot in Europe with speeds of up to 1 GBit/s. The modem chipset comes from HiSilicon, a subsidiary of Huawei. Also on board are a large color display and a WLAN extender function, the device is charged via USB type C interface.

Huawei E5788 E5788u-96a Gigabit LTE Hotspot

Gigabit LTE modem

The Huawei E5788’s modem supports LTE Cat16 (Category 16) at speeds of up to 1Gbps downlink and up to 100Mbps uplink, as long as the mobile network is able to handle those speeds as well. In addition to LTE, UMTS with up to 42.2 Mbit/s in the download (DC-HSPA+) and up to 5.76 Mbit/s in the uplink and GSM/EDGE are of course supported.



WLAN with offload function (extender)

The WLAN module in the Huawei E5788 operates in the frequency ranges around 2.4 GHz and 5 GHz. The WLAN Extender function is also available, so you can use an existing wireless network as Internet access and saves data volume from the mobile data plan. Once configured, the E5788 automatically connects to a known WLAN within range.

Huawei E5788 E5788u-96a Gigabit LTE Hotspot

Disadvantages of Huawei E5788

Even if the Huawei E5788 offers an extremely fast modem – some disadvantages are already apparent without a detailed test on the data sheet. So the battery is not changeable and there are no connections for an external LTE antenna. Also missing is a RJ45 Ethernet LAN port, which could easily pass on the extremely high speeds of the modem to other devices. Last but not least, of course, the high price of currently over 300 € is also a big disadvantage – similarly equipped devices with a slightly weaker modem, there are already for about half of the price.

Huawei E5788 E5788u-96a Gigabit LTE Hotspot

Alternatives to the Huawei E5788

If you really want a Gigabit LTE modem with LTE Cat16 or better, you only have one alternative to the Huawei E5788: the Netgear Nighthawk M1 MR1100. The router is about the same price and offers a LTE Cat16 Gigabit modem from Qualcomm, in contrast to the Huawei E5788, the Nighthawk M1 has a RJ45 Gigabit Ethernet LAN interface, a removable battery and connections for an external antenna. If you want to know more different between the two mobile 4G routers, Click here: Huawei E5788 vs netgear M1

Huawei E5788 E5788u-96a Gigabit LTE Hotspot

If you are also satisfied with a 600 Mbps LTE modem, you should definitely take a closer look at the Netgear AirCard 810 hotspot. This also offers a touch screen, but also has a removable battery and the ability to connect external mobile antennas. If even 300 Mbit/s or LTE Cat6 is sufficient, there are many more choices available. For example, you could look at the Huawei E5885 hotspot, which comes with a huge 6,400 mAh battery and also has a special RJ45 Ethernet LAN port integrated.

Huawei E5885 Mobile WiFi Pro2 Test

As a successor of the popular Huawei E5770 LTE hotspot, the Huawei E5885 Mobile WiFi Pro2 is now presented to market. The Huawei E5885 comes with a fast LTE Cat6 modem for speeds up to 300 Mbps in the downlink and up to 50 Mbps in the uplink. Compared to its predecessor, the battery has been increased again, it now offers a capacity of 6,400 mAh. Compared to other mobile hotspots, the integrated RJ45 Ethernet port is certainly the most important unique selling proposition. This review will highlight the strengths and weaknesses of the Huawei E5885 Mobile WiFi Pro2 for and pinpoint whether it is worth buying.



Before we take a close look at the technical data, we can see the model of the device: black Huawei E5885Ls-93a (this is the exact model name for the European version). Connected to the hotspot is a small hand strap, which is also a USB to micro USB cable. Furthermore, it comes with a power supply with an output of 5V/2A and the corresponding USB to Micro-USB cable to charge the device.



In addition, Huawei E5885 comes with a small adapter from Micro-USB to USB Type C, so that even modern smartphones can easily charge with the power bank function of the Huawei E5885. Finally, you will find in the packaging a printed warranty notice and a multilingual quick start guide.

Huawei E5885: technology

In my test, I used the Huawei E5885 in black color, the material on the front and on the back is reminiscent of synthetic leather and feels quite high quality. The back of the Huawei E5885 can be removed for insertion of the SIM card and optionally a MicroSD memory card. You need a MicroSIM card, but if you use it carefully, you can also use Nano-SIM cards with an adapter on MicroSIM.



Manufacturer & Model: Huawei E5885Ls-93a
Technologies: LTE / 4G (Cat6) | UMTS / 3G | GSM / 2G
Frequency ranges: * GSM: B2 / B3 / B8 / B5
* UMTS: B1 / B2 / B4 / B5 / B6 / B8 / B19
* LTE TDD: B38 / B40 / B41
* LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B19
Maximum speeds: * LTE: 300 Mbit/s download, 50Mbit/s upload

* UMTS: 42.2 Mbps down, 5.76 Mbps up (using DC-HSPA+)

* GSM: 236 kbps (when using EDGE)

Wireless Standard 802.11a/b/g/n/ac | 2 × 2 MIMO | 2.4 GHz or 5 GHz
Software in the test: Firmware version: 21.236.05.00.1217
Others: Monochrome display | NFC | Battery 6,400 mAh, Powerbank function |MicroUSB and full-size USB port

The battery is not changeable. On the back are important information about the device, including the WLAN name and various passwords. All ports are hidden under a cover on the side of the Huawei E5885. There you will find a micro-USB port for charging the device, a full-size USB port for using the Powerbank function and a RJ45 Ethernet LAN connection.



On the front there is a small monochrome display, which shows the most important information about the Internet connection and the device itself, such as the signal strength, the battery level and the number of connected WLAN devices. If you press the power button, which is located on the side of the E5885, you can display the WLAN password in plain text. There is also a WPS button on the side of the hotspot and an NFC antenna on the front for easy Wi-Fi connection without the hassle of entering the password.



Compared to other mobile LTE hotspots like the Huawei E5787 or the Netgear AirCard 810, the Huawei E5885’s display is very small. In addition, the information displayed is often difficult to read due to strong reflections of the cover.



The configuration of the Huawei Mobile WiFi Pro2 E5885 must be done either via the browser Web Interface or the Huawei HiLink App, which is available for iOS and Android. Both the smartphone app and the web interface are easy to use and available in various languages. Much more detailed setting options are available via the web interface clearly, but the app is completely sufficient for everyday use; the most important functions such as SMS, memory card access or configuration of the WLAN extender are also available via the app.

Huawei E5885: Details about the WLAN

The maximum of 32 devices can be supplied with an internet connection at the same time. Both the frequency range around 2.4 GHz and the 5 GHz is supported, the maximum speed on my Apple MacBook Pro was just below 600 Mbit/s. That’s enough to use the maximum modem speed of theoretically 300 MBit/s on the laptop. Of course, the WLAN range depends on various factors, in my test I was able to receive the WLAN signal in the 2.4 GHz band but also over 10m distance and through two walls and surf the Internet fluently. For some users certainly a negative point: there is no way to completely disable the WLAN. Even if only USB or LAN is used for Internet access, the WLAN is active.

Huawei E5885: wireless extender

The WLAN Extender feature has become very important to many users. This feature allows you to use an existing Wi-Fi network as Internet access. This can save data volume on the SIM card. Fortunately, the Huawei E5885 also has a WLAN extender function, which tested perfectly and was very easy to set up. The maximum number of possible WLAN devices is reduced to 31 when using the Extender function. It was noticeable that the speed was limited to about 15 megabits per second – even if the original wireless has made much higher speeds possible. For daily use, the speed of 15 Mbit/s is probably sufficient for most of the users.

Huawei E5885: No Gigabit Ethernet

The RJ45 Ethernet LAN port on the Huawei E5885 side can be used to provide Internet access to a wired device such as a desktop PC. In the test, this worked fine. There is also the option of using the LAN port as an Internet access instead of the cellular modem. This also worked perfectly smoothly in the test, the LAN connection was recognized immediately and the Internet access was established. Unfortunately, the RJ45 Ethernet port supports only 100Mbps connections – Gigabit LAN is not supported. This is annoying, because thus the full modem speed over LAN is not usable.

Huawei E5885: LTE Speedtest

In the test, Huawei Mobile WiFi Pro2 E5885 used SIM card from Vodafone. The reception was quite good at LTE band 3 and 20. Positive: even in regions with a very weak LTE signal, you could still surf fluently, even if downloads lasted much longer. Compared to a Netgear AirCard 810 hotspot, it was noticeable that the uplink speeds were often slightly slower than those of the competing device – but all in all, the data rates of the E5885 were good.



Theoretically, the modem allows speeds of up to 300 MBit/s in the downlink and 50 MBit/s in the uplink via LTE, in the test at least about 200/45 Mbit/s were measurable. In most cases, the speed is well below the maximum possible, since the LTE radio cells are now well utilized. Of course, the Huawei E5885 also supports 3G and 2G as a backup and if desired, you can also specify the network technology in the web interface manually (4G only, 3G only, etc.).



Unfortunately, the Huawei E5885 has no external antenna connections, which is quite unusual, because most other mobile hotspots have these connections. If you want to use the Huawei E5885 abroad, you should pay attention to the supported frequency bands. The Huawei E5885Ls-93a (European version) is perfectly suited for use in Europe, partly also in North America and Asia is possible. For non-European travel, however, it is best to first clarify which frequency bands are relevant in the destination country.



Huawei E5885: battery and power bank function

The battery of the Huawei E5885 has a capacity of 6,400 mAh. That should be the largest battery of a mobile LTE hotspot currently. In my review, I was able to achieve a useful life of about 20 hours with continuous use of the hotspot feature. Of course, it takes a long time to charge the battery – the device had to charge about 5 hours with the included 5V / 2A power supply. The Power Bank function to charge other devices worked perfectly in the test. Pleasing is the high output power of 5V/2A, so that current smartphones can be charged quite quickly.



Huawei E5885: test conclusion

After about two weeks of testing, I can recommend the Huawei E5885 to anyone looking for a hotspot with a fast LTE modem, a strong battery, and an Ethernet LAN port. The device worked perfectly in the test and provided a stable and fast internet connection at all times. Another positive feature was the fast and easy-to-use web interface and the WLAN Extender function. The powerbank function is also helpful and is very well complemented by the included accessories.



However, the Huawei Mobile Wi-Fi Pro2 E5885 hotspot also has weak points, as the test has shown. There are no connections for an external LTE antenna and even when using the Ethernet connection there is no possibility to completely switch off the WLAN module. With the 100 MBit/s connections, it is incomprehensible why Huawei has not installed a Gigabit Ethernet connection, only about one third of the maximum LTE modem speed can be used over LAN. Even the very small display is quite a weak point.





Despite the mentioned weaknesses, the Huawei E5885 is a very good device, the bottom line is the price-performance ratio. Of course, there are alternatives: if you do not need a LTE Cat6 or 5 GHz WLAN, you can confidently use the predecessor Huawei E5770.

Test of TP-Link Archer MR200 4G Router

The TP-Link Archer MR200 Router is a feature-rich router built to maximize performance in your mobile broadband. We had a simple test to show more about TP-link MR200 router.

TP-Link Archer MR200 is a desktop 4G router. Unlike the Netgear AirCard 810 Mobile Hotspot we tested recently, Archer MR200 is not a router you can take to town (unless you know you’ll be near an electrical outlet). It is relatively large and clumsy and has no rechargeable battery. Instead, it is supposed to be used indoor where the router can get continuous power supply and then the broadband connection would be done quickly and easily.

It is also there, in a poor reception reception, the TP-Link Archer MR200 is supposed to show its strength, as it is equipped with a pair of solid external antennas to enhance the 4g reception.

User-friendly and feature-rich

Getting Started with TP-Link the Archer MR200 is really friendly. Just plug in with the 4G SIM card, turn on the router, enter the preset password that is written on the bottom of the router and start surfing.

When it is time to configure the 4g LTE router, this appears to be as easy and smooth as the installation itself. The interface is exemplary quickly, easily and clearly, even when we enter the more advanced settings.

Despite its rather simple exterior, the TP-Link Archer MR200 proves to be a truly functional and configurable router. Here it is in the top layer compared with competitors in the market.



Reception Good

Initially, the TP-Link Archer MR200 manages well in our performance tests. Reception is normal under normal conditions. The connection is always stable during the time we tested it. The WiFi results are slightly better. Here, the TP-Link Archer MR200 puts itself in the top level. The same good results goes for range tests, the TP-Link Archer MR200 gets good values ​​and performed better than most of tested routers.



But when we come to what will be the strength of TP-Link Archer MR200, the reception under difficult conditions, we will be a little bit disappointed. Instead of getting to the top, the TP-Link Archer MR200 turns out to be worse than the average. In fact, the TP-Link Archer MR200 is far below the newly tested mobile router Netgear AirCard 810. If you are located at somewhere with bad signal, you’d better choose a wireless router with connectors for external outdoor LTE antenna, which may help the router to get better 4G/LTE network, so you will enjoy the fastest possible network.

Conclusion

TP-Link Archer MR200 is not a bad router, but does not do all as what we expect from a powerful 4G router. When the router work in good network condition, it performs good, but if in bad condition areas, it has much space to improve to shorten the distance to its competitors. There are many similar 4G routers on the market that are more affordable than this one such as Huawei E5186, ZTE MF286 etc. At last, we have a look at the basic features of TP-link Archer Mr200:

Features of TP-Link Archer MR200

Manufacturer : TP-Link

Function : 4G router with ac-wifi

System Requirements: 2G/3G/4G LTE Mobile Broadband.

Wi-Fi: 802.11ac/b/g/n, Dual band 2.4/5 GHz.

Security: Wep, WPA, WPA2

Network Ports : 3 pcs, 1 pc wan/lan.

Connections: Charging connector, external antennas.

Screen: 2.4 inch color touch screen.

Size: 20.2 x 14.1 x 3.4 cm.

Other: 3 internal wifi antennas, 2 external 4g antennas.





Netgear Aircard 810s LTE Hotspot Test

For many users, stationary Internet connections are already obsolete. LTE coverage and capacity across multiple locations is so good that successfully replaces the cable link. To access to the network for many devices requires appropriate equipment. Since LTE routers are already commercially available, simply insert the SIM card and the wireless internet will be available for all devices at home.



An alternative to fixed routers for people who appreciate the mobility of access points are portable WiFi Router. This time, NETGEAR AirCard 810 4G portable router is tested. We checked at home conditions and on the go.



Technical specifications of the Aircard 810 indicate that it’s with high-end hardware. Below you will find details.



NETGEAR AirCard 810 Specification
Technology network 4G LTE cat. 11 with a 3-band frequency aggregation, support 4G LTE, DC-HSPA+, HSPA+, HSPA, 3G
Wi-Fi features 802.11ac/b/g/n, two WiFi bands of 2.4 GHz or 5.0 GHz
Type of SIM card Micro SIM (3FF)
Battery life for 11 hours
Standby time to 260 hours
Display 2.4 inch touchscreen
Dimensions 112 × 69 × 15.5 mm
Battery Lithium-ion battery (2930 mAh)
Weight 132 g
Supported network bandwidth 4G LTE FDD 700/800/900/1800/2100/2600 MHz
4G LTE TDD 2300/2600/2600 MHz
3G 850/900/1900/2100 MHz



Appearance

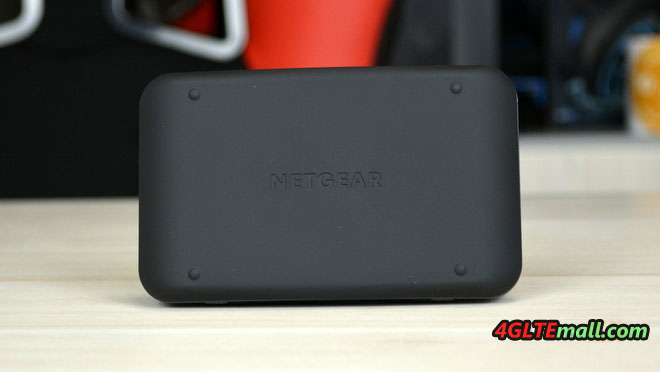

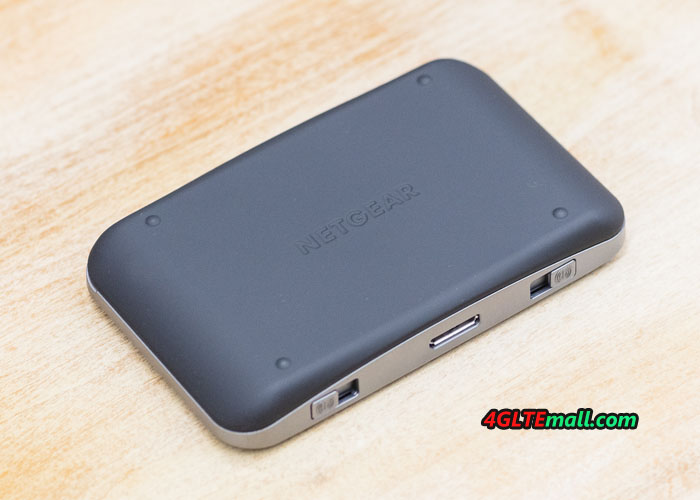

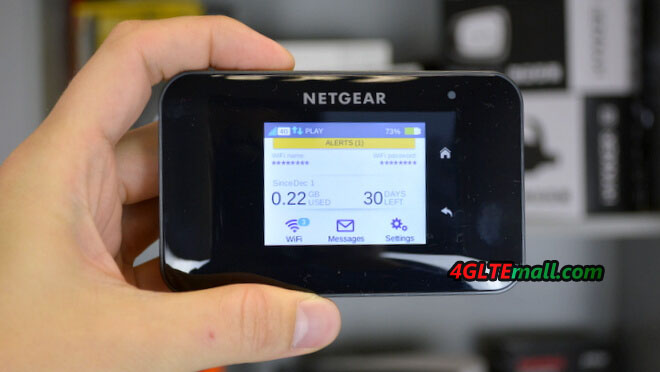

NETGEAR AirCard 810 is a mobile router with the pocket dimensions. It is far smaller than many stationary routers and can easily fits in a pocket, backpack or in the glove compartment in the car. The out body is made of high-quality plastic, and the front lies a 2.44-inch touch screen. The back cover has the Netgear logo, removing the cover, we can see the battery.



Placed on the top edge of the Aircard 810, the power button is responsible for turning on and wake the device. On the opposite side, we find two connectors for external antenna connector and USB port for charging. And the connectors are covered with a sliding lid so there is no fear that this place will be gathered dirt.





Mobile Access Point



NETGEAR AirCard 810 supports 4G LTE category 11 connectivity and all the most important bands in Europe and Asia. So user can use the unlocked Aircard 810s in all European countries and Aisa areas. It is also important  that it supports for LTE FDD band 800, which will provide better coverage in the urban remote areas. The manufacturer provide the Aircard 810s with fast WiFi connectivity, which works in the standard 802.11ac, so provides adequate performance while streaming media and data transfer.







NETGEAR AirCard 810 can operate as a 4G USB modem if you do not want to use Wi-Fi. Another interesting feature is the Jump Boost, which allows you to charge smartphones and other small portable devices. The kit has suitable adapter to which we connect any USB cable for charging an external device. A great addition to facilitate the use of the router is the color LCD touch screen. To change the settings or check the current consumption data, no need to open a browser window and log into the control panel. Everything is indicated on the screen in a very accessible way.

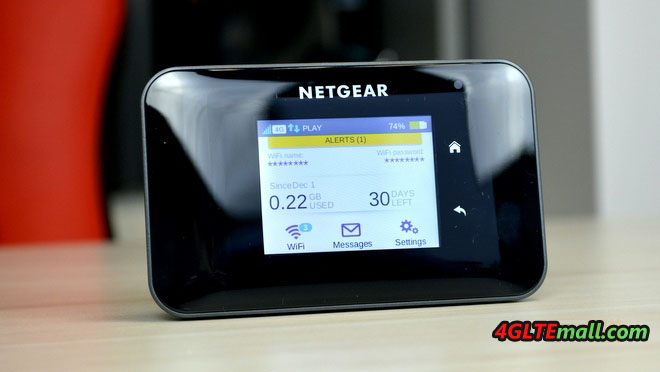

On the screen you will find information about the battery charge status and range. This of course is not all. The manufacturer has not forgotten to use SMS; users can easily check the card inbox inside the router, you can also write messages using the touch screen.  Touch screen performs very well, and the operation does not cause problems.



Setup and Operation



NETGEAR AirCard 810 can be configured using the LCD screen already described. Same configuration is extremely simple and limited to a few steps, so even a person with non-oriented networking technology can operate it. After inserting the SIM card the device is ready for operation. During the tests, the network SIM cards just play and plus do not have to enter data network, and to make any extra settings. After the card is inserted, the Internet was just available. The thing you need to set up is Wi-Fi according to your preferences. By default, the network name and password would be displayed on the screen. After entering the settings, you can change and turn off their visibility.

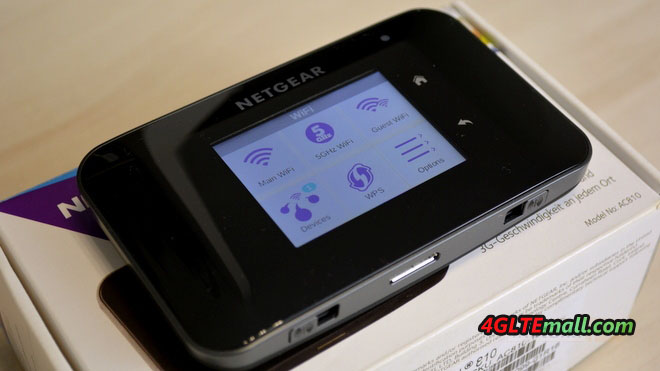

The equipment supports dual-band Wi-Fi (2.4 GHz or 5.0 GHz), and the use of the latter is available only when you turn the corresponding function in the settings. The strength of wireless coverage can be adjusted; we have available three values of the Long Standard. Selected the best possible range, of course, it is associated with shorter battery life.





NETGEAR AirCard Application



The mobile hotspot can also be possibly operated through a dedicated NETGEAR AirCard APP for Android, iOS and Windows Mobile. Its interface is clear and easy to read, and all settings are available in the APP. With this application in an accessible way, we can customize virtually all device parameters as well as from the touch screen. On the main screen, we see not only the coverage or the status of the battery, but also the consumption of data transfer in the current accounting period and during the current session. We can also see the quantity of the connected devices and send SMS messages.



Performance and everyday use

The manufacturer shall ensure that the NETGEAR AirCard 810 can easily handle up to 15 devices connected via Wi-Fi. I could not do the test so heavy load, but when you connect three smartphones, two laptops, TV and console, the aircard 810 can still work properly. You many also not complain about wireless coverage. The router is easily able to cover the range apartment with an area of 80m 2. Built-in battery should provide working time up to 11 hours. With the active Wi-Fi in the 2.4 GHz band and LTE connectivity (full range) easily, I was able to get close to this result and the router work almost 10 hours. The operating time can of course vary depending on usage. It is worth mentioning that offer NETGEAR’s accessories are available for the device under test.

Summary

NETGEAR AirCard 810 Mobile hotspot is a device that would useful both at home and on the road if you need wireless network. Inside you will find modern components, which ensure the quality of the connection. It deserves praise with a wide range of supported LTE frequency and dual-band Wi-Fi working in a fast standard AC. The most important is that it’s very easy to use. The router can be controlled via the intuitive display or friendly mobile application.



For all the advantages described, unfortunately, you have to pay a lot but considering the capabilities of the device, the price is at high level now. If you need a budget one but good technical specification, the predecessor model Netgear Aircard 790s may be one good option.



Huawei E5787 4G LTE Mobile Hotspot Review

Huawei E5787 4G+ is a new mobile LTE Hotspot which has been released last year and now it’s available for many network providers in Asia and Europe. This is the successor to the popular Huawei E5786 from the year 2014. As the predecessor, the E5786 modem supports up to 300 MBit/s in the downlink (LTE category 6), technically speaking, not much has changed. The new Huawei E5787 has the large touch screen on the front, with which the hotspot is particularly easy to use. In the test, you will see the detail features of the Huawei E5787 and the specifications.

Huawei E5787
Huawei E5787

Appearance

The Huawei E5787 4g+ MiFi is available in black and white. The device is slightly smaller than the predecessor Huawei E5786 and works overall quite inconspicuous. The large touchscreen display is visible on the front, but an LED indication is not available. At the top of the hotspot is the power button, there is a micro-USB port as well as two TS-9 antenna connectors. In addition to the power supply and USB charging cable, it also includes a small hand loop in the package, which can be attached to the router.

Huawei E5787 E5787s-33a

The first impression is quite good. After inserting the SIM card as well as the battery (nano-SIM cards with adapter on MicroSIM work safely) you have to start the Huawei E5787 over a long press on the power button. If you do not use a completely exotic provider, the LTE Hotspot configures itself completely automatically and after entering the SIM PIN you are already online.

Huawei E5787 E5787s-33a

Technical specifications

The Huawei E5787 is sold worldwide in several variants, which support different frequency ranges. The Huawei E5787s-33a is available in Europe and is compatible with all frequency bands that are important in Europe but can also be used on other continents. Unfortunately, with the chipset has not changed in comparison to the predecessor, there is still “only” LTE Cat6 with 300 MBit/s. Many smartphones such as the Huawei P10  or the Samsung Galaxy S8 are already offered at least 600 MBit/s in the downlink with a higher-level chipset, and the Netgear AirCard 810 touch screen hotspot is also providing faster service.

Huawei E5787 E5787s-33a



Manufacturer & Model: Huawei E5787s-33a
Technologies: LTE / 4G (Cat6) | UMTS / 3G GSM / 2G
Frequency ranges: * LTE: 800/850/900/1800/2100/2600

* UMTS: 850/900/1900/2100

* GSM: 850/900/1800/1900

Maximum speed: * LTE: 300Mbps down, 50Mbit/s up

* UMTS: 42.2 Mbit/s down, 5.76 Mbps up (when using DC-HSPA+)

* GSM: 236 kbps (when using EDGE)

WIRELESS INTERNET ACCESS 802.11a/b/g/n/ac to 867 Mbps 2 × 2 MIMO | 2.4 GHz or 5 GHz
Software tested: Firmware version: 21.312.11.00.00
Others: * 2 x external antenna connector (type TS-9)

* Touchscreen 2.4 inch

* Replaceable battery 3,000 mAh

* MicroUSB connector

Operation & Touchscreen

The E5787 is Huawei’s first mobile WLAN router with touch-screen operation. The display is 2.4 inches in size and provides a color display. The plastic cover over the display reflects quite strongly and the display quality of the display is not comparable to that of current smartphones, but much worse. You can recognize all the contents well, but when you look at the display, it is somewhat brighter. But the response of the screen is good, and usually one seldom uses the display at an LTE Hotspot.

Huawei E5787 E5787s-33a

The speed of the software and the response speed of the touchscreen could be convincing. Huawei offers a much better experience in the E5787 hotspot than Netgear AirCard 790 or AirCard 810 Hotspot. Also, the software is quite appealing, without losing the functionality from the eye.



On the start screen, all important functions are displayed by default. This includes a large time display including the date as well as the status bar Information about the reception, WLAN and battery. Access to further functions or the settings is obtained by unlocking the E5787 with a “Swipe” to the left. In the main menu, there are the 6 menu items “Connection Wizard”, “Energy Saving Mode”, “SSID and Password”, “SMS”, “Settings” and “Info”.

In addition to the touchscreen operation, a web interface is also available, which can be accessed via the IP address 192.168.8.1. In addition, the Huawei HiLink app is also available for iOS and Android, with which a configuration is also possible.

Huawei E5787 E5787s-33a

LTE up to 300 MBit/s

Theoretically, the Huawei E5787 with its LTE Cat6 modem reaches speeds of up to 300 MBit/s in the downlink. For this purpose, the hotspot bundles two frequency bands by carrier aggregation technology provided that the mobile radio network also makes this technology available. In the test, speed tests were carried out with SIM cards from Vodafone and Telekom, but only in the frequency range around 800 megahertz, in particular, to be able to test the reception and the speed in remote areas. The Huawei E5787 made a good figure here, especially in comparison with various smartphones, reception is often better and the data rates were slightly higher. In case of doubt, an external antenna can also be connected for the purpose of improving the reception; the necessary two TS-9 connectors are hidden under a side cover. If you need the Huawei E5787 external antenna, you may try this one: http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html

Huawei E5787 E5787s-33a

WLAN without Extender

Devices can be connected to the Internet either via the USB port or via WLAN. The cable connection worked in the test without problems, but most users will probably use WLAN. The maximum speed over WLAN is 867 Mbps, up to 10 devices can be connected at the same time. The Huawei E5787 supports both the frequency range around 2.4 GHz as well as the 5 GHz, the simultaneous use in the dual-band mode is unfortunately not possible. In the test, there were no problems with the WLAN. It is nice that the WLAN access data are no longer displayed in the display like on some previous Huawei hotspots, but are only displayed on demand, so as the important settings such as WLAN SSID, WLAN password.

A major disadvantage of the Huawei E5787 compared to many other LTE hotspots: a so-called WLAN extender or WLAN repeater is missing. The predecessor E5786 had still integrated the function, with which one can use an existing WLAN network as Internet access, but in the E5787, Huawei disabled the function for unknown reasons. It’s really a pity.

Huawei-E5786 VS Huawei E5787

Battery & Other

The battery of the Huawei E5787 has a capacity of 3.000 mAh. The battery can easily be replaced by the user, which is an advantage compared to the predecessor model Huawei E5786. So you can buy a second battery or in the case of a battery defect, quickly replace it even outside the warranty period. In continuous test operation with an average of 3 WLAN devices connected simultaneously to 2.4 GHz, the runtime was around 10 hours.

The E5787 4G Hotspot offers the possibility to also be used as an external battery (“Powerbank”), which can charge an empty smartphone with power off. For a full charge, it should not be enough with most current smartphones, so the Powerbank function is, therefore, more suitable for the emergency.

Conclusion

The Huawei E5787 is a very good LTE hotspot. The touch screen operation was well implemented and the software was designed appealing. The modem performance was good in the test and the maximum speed of 300 MBit/s should be sufficient for most users, but it is disappointing that Huawei “only” installed an LTE Cat6 modem and the E5787 has no great technical improvement. Also some practical functions are missing: the simultaneous spark on 2.4 and 5 Gigahertz is not supported and support of a maximum of 10 devices at the same time in comparison with the competition also somewhat obsolete. Nevertheless: if one can ignore the few criticism points, the Huawei E5787 a very good mobile LTE hotspot to recommend.



Netgear AirCard 810 LTE Category 11 Mobile Hotspot

Among the 4G LTE routers and mobile requirement, Netgear offers a new device that meets both mobility and a fixed 4G solution, while supports LTE category 11. In category 11, the maximum theoretical downflow could reach 600 Mbit/s. The AirCard 810 manages the 3-band aggregate to achieve these flow rates.



Aircard 810 Technical Specifications



The LTE bands supported by the AirCard 810 are:

3G UMTS: B1, B2, B5, B8
LTE: B1, B3, B7, B8, B28

With the band of 700MHz (B28), the aircard 810s could support the LTE Bands in Europe and other areas, and the LTE category 6 (DL 300Mbit/s & UL 50Mb/s) will be well supported for many network operators. However, the AirCard 810 does not support 2G. The Hot-Spot features a Wi-Fi 802.11ac/b/g/n on 2.4GHz or 5 GHz, 2 × 2 MIMO, and supports multiple SSID and WPS.





Interestingly, the 2.4-inch color LCD screen is tactile and allows operation in menus, avoiding the use of a PC or a smartphone to change the settings. There are dual external antenna connectors in TS9 format, perfect for increasing wireless signal in the countryside.

The design is very classic, with removable battery, a mains charger equipped with an adapter “English”. A USB cable allows the device to be charged, while another USB cable (too short) allows it to charge a smartphone from the Hotspot battery.





The removable lithium-ion battery of 2930 mAh, allows continuous operation time about ten hours depending on the use and up to 250 hours standby time. You will find in the functionality of this MiFi router in the web interface, including the network settings, port transfer, DMZ, parental control, QOS etc.

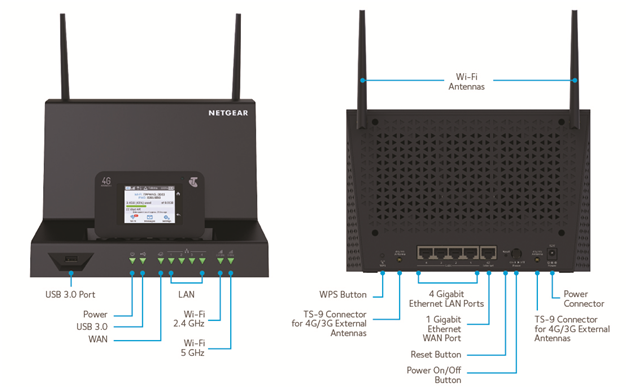

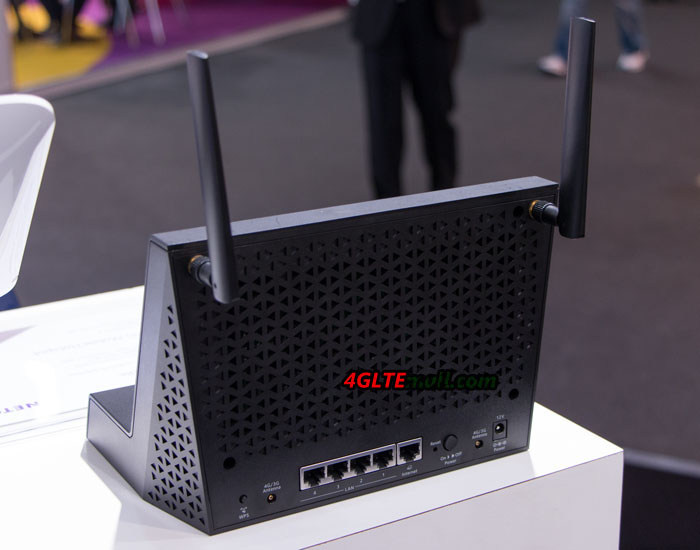

Netgear DC112A Smart Cradle for Aircard 810s

What we are interested is in the LAN-WAN extension station for this Netgear WiFi hotspot.

The DC112A cradle allows the AirCard 810 hotspot (and other models) to be connected, but it’s not just a docking station.

The DC112A station provides few additional functions than predecessor model DC113A. In practice, the DC112A is a real Internet WAN router with all the functions expected on a router, but it hosts the AirCard 810 hotspot via a USB 3.0 connection, to truly mate it to its functions.

The DC112A station is equipped with a Gigabit WAN and 4 gigabit LAN ports connection to connect to your Access Point or Boxing as well. It is a router that offers all the usual functionalities (IP V6, DMZ, QOS, port forwarding, DHCP …) and offers WiFi functions 802.11 ac on 2.4 and 5 Ghz, as well as a front USB 3.0 connector allowing sharing of Data, including the Internet.

Connectivity is important, the cradle is equipped with 2 large WiFi antennas (SMA format).Two WAN 4G/3G antennas are present inside the unit, allowing greater range and reception for the AC810. The latter can also be replaced by external antennas, since the station also has 2 TS9 sockets for connecting a 4G/3G external antenna with dual connectors.

Once the AC810 hotspot is connected to the station, Netgear offers us an operation of the 2 devices “on demand” and offers a configuration between the WAN connection and the 4G data connection.



The whole solution therefore offers a mixed WAN-4G solution that provides LTE management with aggregation capable of reaching speeds of 300 Mbit/s to 600 MBit/s downlink depending on the country and the operators that surround you. The whole equipped with connectors of antennas that can meet many needs. Finally, if you go on the move, it is simple to put the hotspot in your pocket, without moving the WAN station, and thus leaving a WAN Internet connection totally available on site.

If you like the Netgear Aircard 810s, welcome to click here: http://www.4gltemall.com/netgear-aircard-ac810s-4g-lte-cat11-mobile-hotspot.html





NetGear Presents hotspot 4G AirCard 810 (AC810S)

NetGear AC810: a new hotspot for future

The Netgear AC810 is a new 4G hotspot router that works with the SIM card of a mobile operator in micro-SIM format. Compatible Class 11 for 4G LTE, it achieves data rates up to 600 Mbps. We also note the presence of a Dual Band mode (2.4GHz and 5GHz) to get better rates. We also note that it is compatible with networks 4G LTE and 3G in Europe, the Middle East, Africa and Asia, as well as 3G networks worldwide. That’s great to take the aircard 810s when traveling.

The body of netgear 810s is really small and can therefore be taken easily in a bag or even a pocket.

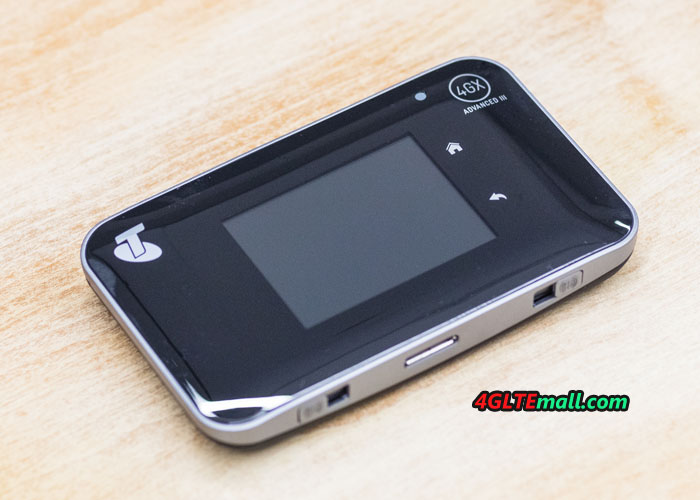

Netgear aircard 810s front

Accessories included with the AC810S

The Aircard 810s obviously have a removable battery for obtaining a range of up to 11 hours in use and 250 hours standby. A USB3.0 cable enables charging on USB and a USB Power Adapter is provided. A cable for the Jump Boost Technology recharges other smartphones based on the battery from the AC810.

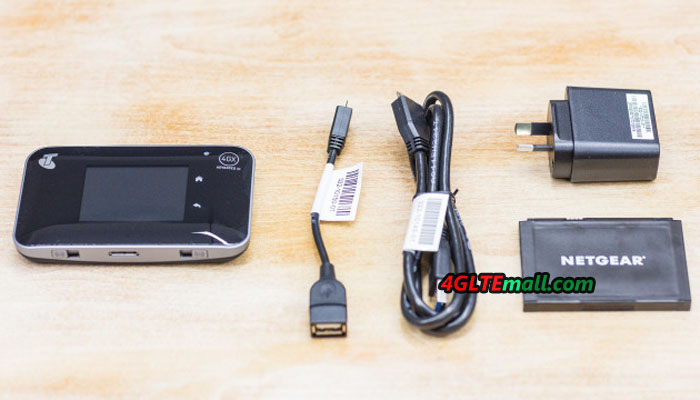

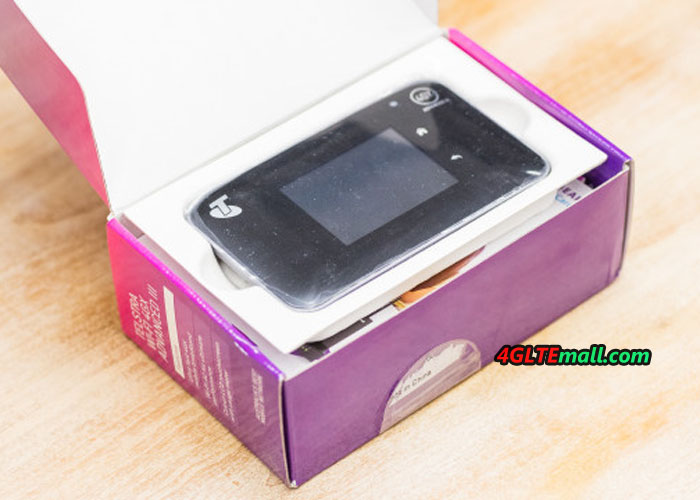

netgear aircard 810 package content

Multiple connections

The Netgear AC810S can connect through the simple creation of a Wi-Fi 802.11 ac standard. By default, it already has a network name and a password, which are indicated under the battery but you can easily change these settings through the onboard menu.



Automatic management of the SIM card

If you insert a SIM card that also includes calls, SMS and MMS and not just the data as in our tests, you can view the SMS directly on the AC810 via the Messages menu. Here we have used a SIM card from France network carrier Bouygues Telecom. We must then enter the PIN code of the SIM card so that the hotspot automatically retrieves the operator settings.

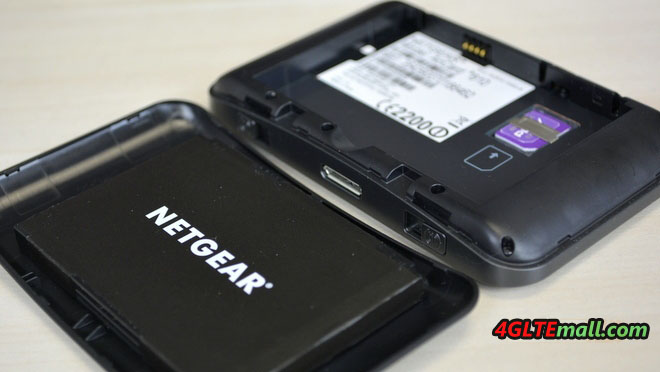

Netgear Aircard 810s sim slot

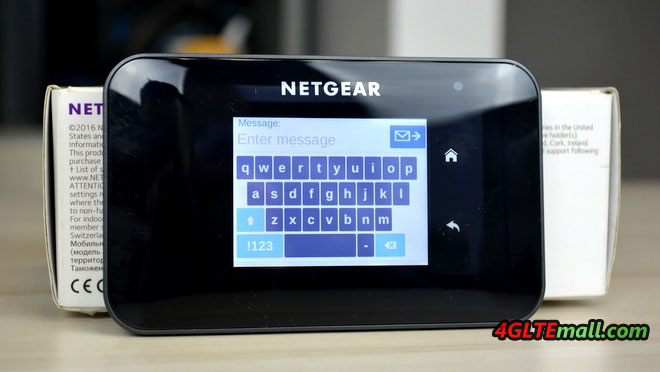

A touch screen for the Netgear AC810s

The screen quality is good but do not expect to the retina. Here the touch screen is simple but effective; it navigates in the menus like on a smartphone. The buttons and back home are also tactile. This is a 2.4-inch LCD colors. This screen also allows checking the quality of connection, the connection type, the data consumed and the number of days remaining for this contract. It’s very useful for users.

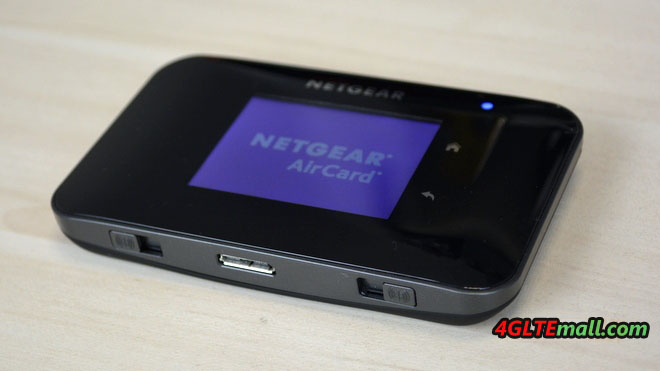

Netgear Aircard 810s Antenna connectors

We tested the hotspot with an iPhone, an iPad and a MacBook Pro connected simultaneously and did not encounter any problems. Indeed, the Aircard AC810 is able to accommodate up to 11 devices simultaneously.



AC 810 Hotspot Features

We note that the menu offers access to operators and settings that can enable WiFi 5GHz mode, allowing for better transfer rates essentially with the 4G high speed. Of course, your equipment must be compatible with the Wi-Fi standard in order to make the best. This is actually the wireless N.





Here are the full specifications for Netgear Aircard 810s for reference:

Network technology
  • 4G LTE, Class 11 with triple-band carrier aggregation
  • DC-HSPA+, HSPA+, HSPA
  • 4G LTE
  • 3G



Network bands supported
  • 4G LTE FDD 800/900/1800/2100/2600 MHz
  • 4G LTE TDD 2300/2600 MHz
  • 3G 850/900/1900/2100 MHz



Wireless
  • 11ac/b/g/n
  • Wifi Dual Band 2.4 or 5 GHz



Required configuration
  • 11ac WiFi-enabled device/b/g/n 2.4 or 5 GHz
  • Windows 10, 8, 8.1 and 7 (32/64 bit), Windows RT, Windows Vista (SP2, 32/64 bit), XP (SP3, Media Center Edition 32/64 bit) or Mac OS X 7.0 or later



Physical characteristics
  • Dimensions: 112 x 69 x 15.5 mm
  • Weight: 132 g
  • SIM card type: Micro SIM (3FF)
  • Independent activity: until 11 am
  • Standby time: up to 260 hours
  • Display: touch screen 2.4 “



Package contents
  • mobile hotspot AirCard 810 (AC810)
  • removable lithium-ion battery (2930 mAh)
  • Cable for Jump Boost
  • wall Charger
  • USB cable with Micro USB Connector
  • Quick Start Guide

We will propose soon a test for mobile use with flow measurements in several situations. Check more Netgear Aircard 4G hotspots here: http://www.4gltemall.com/4g-wireless-router/netgear-4g-lte-router.html



Netgear Aircard 810 – World’s Fastest 4G LTE Mobile Hotspot

Netgear has launched a new mobile hotspot AirCard 810 on the market. The device has been shown in January at the Consumer Electronics Show (CES) in Las Vegas. Now it is also available in this Australia for the network provider Telstra and named Telstra WiFi 4G Advanced III, and Netgear 810 is visually similar to its predecessor Netgear AirCard 790. However, the new model Netgear AC810S has some additional features that we will test in more detail.

Netgear aircard 810s front

The most important change is the support for LTE Cat. 11, which means the mobile Wi-Fi hotspot can support mobile data transfers at up to 600 Mbit/s, a speed that the bundling of three 20MHz and distribute a UMTS or LTE-based Internet access to up to 15 devices. Thus, the aircard 810 is currently the fastest mobile hotspot on the market.





In many countries, such high speeds of the mobile network are not yet available. However, the current mainstream providers offer top speeds of 300 or 225 Mbit/s over 4G networks, which achieve higher maximum data rates for mobile Internet access. Now Netgear AirCard 810 seems to be a corresponding future-proof device.

netgear aircard 810 package content

2G Network Support is Missing

However, the aircard 810 is not perfect actually. Although top speeds over LTE are made ​​possible and also in the UMTS networks downstream possible speeds are up to 42 Mbit/s due to DC-HSPA technology, netgear 810s can’t access to the GSM, GPRS and EDGE networks. The 2G access should be at least a basic supply for use in geographic areas, where simply no UMTS or LTE expansion exists. The distribution of an already very slow Internet access via WiFi to multiple other devices is certainly less sensible. The Netgear AC810S router can be but also connect directly via USB to a computer and then used as a wired modem for internet access.

netgear AC810S home

Another interesting innovation compared with the Netgear AirCard 790 is the ability to not only redistribute a mobile Internet access, but also an existing wireless network. The Aircard 810 router can ensure for better reception as a repeater, especially work as a hotel hotspot and similar Internet-access distributed over several devices.



Netgear Aircard 810s sim slot

A big advantage over Aircard 810s mobile hotspots from other manufacturers is the ability to make many settings directly via the touchscreen. Quick SSID or change the password? No problem. After inserting a new SIM, the Internet settings do not have to be entered manually. This could also do directly on the touch screen.

Netgear Aircard 810s Antenna connectors



The Netgear 810 touchscreen dimensions of 112 x 69 x 15.5 millimeter are also one of the main criticisms over its predecessor: The display reflects very strong. It also takes fingerprints on unusually strong, which looks ugly if intensity of use and you do not wipe the screen clean repeatedly.



About the screen, the most important is that not all operating steps for Netgear AirCard 810 are accessible. Those who need access to all settings can use the web frontend via the Internet browser of a connected computer. Here, for example, Wi-Fi hotspots also can be set to be redistributed to the Netgear handheld. Once set, the AirCard 810 automatically uses one of the configured hotspots instead of UMTS or LTE as soon as one of the wireless access is received.

Netgear Aircard 810 web interface (1)

Apps for almost all smartphones and tablets

Another possibility to adjust the configuration of the Netgear aircard 810 router is the Netgear APP. Netgear offers Mobile Apps for Android, iOS and Windows Phone. Network access is naturally only possible if the smartphone or tablet is connected to the mobile hotspot. The Netgear AirCard 810 weighs 132 grams, making it even four grams lighter than its predecessor. Above all, the device is easier to handle and lighter than many current smartphones. The handheld is completely pocket-fit. It is important to remember that cell phone coverage and wireless range suffer if the unit is operated close to the body.





We have tested the Netgear AirCard 810 in mobile networks. The reception was well in both LTE and the UMTS field network. By eliminating the 2G, the Aircard 810 router connection has often still held to UMTS or LTE network in less-served regions, without the need for manual adjustments. In LTE 1800 network, we came up data transfer rates of 120 Mbit/s downstream. This is a good value. But we could not test Carrier aggregation at 1800 and 2600 MHz.



Netgear Aircard 810 web interface (2)

WLAN at 2.4 and 5 GHz

The Netgear AC810S router sends the default wireless frequency range of 2.4 GHz, as an option, 5 GHz is also available. Moreover, it is possible to establish also a guest mode. Compounds can be easily prepared by WPS. The range of the hotspot is considerably higher than that of the Huawei E5372, which we used for comparison. It is important to remember that it is not a very recent model of the Huawei MiFi.

Netgear Aircard 810 web interface (3)

The battery of the Netgear 810s hotspots has a capacity of 2930 mAh. The manufacturer promises eleven hours operating time. We have achieved more than ten hours in practice. Particularly pleasing: Unlike many competitors, aircard 810 allows the battery exchange also. Also interesting is the possibility to use the mobile hotspot as a battery pack, such as a smartphone entrained recharge.

Netgear Aircard 810 web interface (5)



Conclusion:

The Netgear AirCard 810 is not cheap now at www.4gltemall.com. This is a device that has convinced functions during the test even after long hours of continuous operation and thanks to LTE Cat. 11, the technology dominates the near future. The MiFi is well made and is pocket-fit. If required, connect an external antenna.

Netgear Aircard 810 web interface (6)

The pity is the lack of GPRS and EDGE. Another criticism is the supported LTE frequency ranges. Although all common in Europe bands are covered, it lacks some LTE frequencies for the American market, so you may only use 3G network in American areas with the Aircard 810. But in all, the Aircard 810s is a very good mobile router to commend for travelling over the world.





Netgear Aircard 810 4G Mobile Hotspot Review

Mobile LTE hotspots are currently very popular and are increasingly replacing LTE sticks: The hotspots offer fast, comfortable internet access and can be used universally with all Wi-Fi enabled devices. The fastest mobile LTE router we has tested is Aircard 790, which have been able to reach around 300 Mbit/s downstream, based on LTE Category 6 technology. Here we have a new 4G mobile Hotspot announced, which offer significantly faster speeds than Netgear AC790S. Netgear has the AirCard 810 now, which is the world’s first hotspot to allow download up to 600 MBit/s.

Netgear aircard 810s front

World’s fastest LTE modem

The Netgear AirCard 810 hotspot has an integrated Qualcomm Snapdragon X12 modem, which supports LTE category 11 with speeds up to 600 Mbit/s downstream and up to 50 Mbit/s upstream. The high data rate is possible by triple channel bonding, up to 60 megahertz radio spectrum, the hotspot simultaneously also use in the downlink. In the test, only 2 x 20 MHz frequency was tested bundling. In the network of Vodafone, the speed could reach around 220 Mbit/s. In any case, the Netgear AirCard 810 is equipped for the future of the mobile Internet.

Package

In the package box, there is a small Quick Start Guide, a charger, USB Micro-USB port, the lithium-ion battery and AC adapter. And of course, there is the Netgear Aircard 810 hotspot.

netgear aircard 810 package content



Only UMTS and LTE, no GSM

Although Netgear AirCard 810 Hotspot has a very fast LTE modem, but deactivates the GSM function at the same time. The GSM/2G network for mobile surfing is anyway hardly or not suitable, but some users should miss the data services from GPRS and EDGE. Why Netgear has GSM-disabled is not entirely clear, for most users, the limitation of GSM network is probably due to successful UMTS and LTE network expansion.

Touchscreen operation

The Netgear AirCard 810 LTE router is equipped with a 2.4-inch touchscreen display, which will show important information for device status and can be also used for configuration like the predecessor Aircard 790. The display reacts quickly and reliably, and the menu system is easy to understand. Most functions can be selected via the display, only very few settings is needed to do via the web interface, which can be opened from any browser.

netgear AC810S home



On the home screen, all the important information such as call duration, data volume and number of wireless users are displayed. On request, the wireless password will be displayed. The display brightness can be adjusted in three stages, as well as the duration of the illumination. Normally the display goes a few seconds after the last touch by itself, to save energy. A bright LED on the front shows the signals and the connection status on the display.

Dual Band WLAN with repeater function

Netgear AirCard 810 can provide an Internet connection for up to 15 devices simultaneously via WLAN. Another device can be connected via USB cable. The maximum LTE speed could be gained when connected computer supports USB 3.0. A suitable cable is supplied with the device; this is also used to recharge the battery simultaneously.

Netgear Aircard 810s sim slot

Netgear 810s uses a wireless modern dual band AC module that can spark both 2.4 GHz and 5 GHz. The maximum speed is fast enough based on WLAN 802.11ac. The wireless transmission power can be controlled in three steps and convinced in the test by a good range. However, External wireless antennas were not connected, so that one is dependent on the integrated antennas in the device. On request, it is open for the user to create a guest Wi-Fi with a separate username and password.

Particularly impressive was the wireless repeater function in the test. This allows Internet access over existing wireless networks instead of cellular. So you can give the Netgear AirCard 810 as the wireless access from home DSL router or the hotel Wi-Fi and soon a known WLAN is within range, it will be used for Internet access. The function is particularly interesting for those users who do not have an unlimited data plan, but must extend the WiFi coverage range.

Netgear Aircard 810s Antenna connectors

Connectors for external LTE antenna

At the side of the Netgear Aircard 810, there are two TS-9 connectors available for external LTE antenna. The ports are each protected with a stable sliding mechanism against dust and dirt. Although the receive and transmit performance of the AirCard 810 is very good even without an external antenna, but particularly in the stationary use in fringe areas, such antenna of great advantage is also necessary at some time. Below is the external antenna for 4G LTE networks to recommend:

http://www.4gltemall.com/4g-antenna-two-ts-9-connector.html

35dbi 4G Antenna with dual TS-9 connector antenna







Powerful battery

The Netgear AirCard 810 battery is 2,970 mAh strong and provides an operating time of about 11 hours in the LTE network. If that is not sufficient, user can easily purchase one or more replacement batteries, because the battery is easily replaceable in seconds, which is a big advantage over many other LTE hotspots with permanently installed batteries. The Netgear AirCard 810 router even allows you to charge other mobile devices with built-in battery and the supplied adapter cable. This “Jump Boost” function allows the rapid reloading of a smartphone.

netgear aircard 810 package box



Since the Netgear Aircard 810s is the latest new with the future-proof technology, the price is not cheap now, but considering the performance offered by the device, the aircard 810 is worth the price. Anyone looking for a top current mobile LTE hotspot with fast WLAN and sophisticated touch-screen operation, should not miss AirCard 810. Alternatively, the similar models Netgear Aircard 790s, Huawei E5786 and Huawei E5787 have cheaper price, but offer “only” 300 MBit/s LTE, which could be considered for lower budget.
