Huawei E5785 LTE Mobile Hotspot Test

Huawei has launched the new E5785 LTE hotspot on the market. With not-high price, it still offers good facilities. The Huawei E5785 has an LTE Cat6 modem for speeds up to 300 Mbps in the downlink and presents information about the device and the Internet connection via a small display on the front. There is dual-band Wi-Fi and the battery should allow about 10 hours of operation. Today, we would take a test on this new LTE hotspot.

Appearance

Huawei presented the E5785 as a successor to hotspots like the Huawei E5377 or the Huawei E5577. Visually, the E5785 differs little from the aforementioned predecessors, technically LTE Advanced Cat6 but now arrived in the middle class. With the battery, a quick-start manual and an extremely short micro-USB cable are packed with the E5785 device. To charge, you have to choose an existing USB power adapter or any USB port on your PC or laptop.

The first impression of Huawei E5785 is good. For the test, the white version of the E5785 was available, but there is also a variant with black color to buy. The device is small and light and has two buttons: a power button on the front and a menu button on the side. The battery is replaceable; under the battery is the slot for the MicroSIM card. Good to know: Even NanoSIM cards with adapters work well when used with care. On the front there is a small rectangular display, which is easy to read and clearly displays important information.

Technical specifications

The Huawei E5785 offers the following specifications. Importantly: the exact model number E5785Lh-22c would work without any trouble in Europe. If you buy a device with a different model number, other frequency ranges may be supported.

Manufacturer & Model: Huawei E5785Lh-22c
technologies: LTE / 4G (Cat6) | UMTS / 3G | GSM / 2G
Frequency ranges: LTE FDD: B1 / B3 / B5 / B7 / B8 / B20 / B32
LTE TDD: B38
UMTS: B1 / B2 / B5 / B8
GSM: B2 / B3 / B5 / B8
CA combinations: Intra-band: B3 / B7 / B38
Inter-band: B3 + B5 / B3 + B7 / B3 + B8 / B3 + B20 / B7 + B8 / B7 + B20
Maximum speeds: LTE: 300 Mbit/s down, 50Mbit/s up | UMTS: 42.2 Mbps down, 5.76 Mbps up (using DC-HSPA+) | GSM: 236 kbps (when using EDGE)
WIRELESS INTERNET ACCESS 802.11a/b/g/n/ac to 867 Mbps | 2 × 2 MIMO | 2.4 GHz or 5 GHz | Up to 10 devices at the same time
Software in the test: Firmware Version:
Others: 2 x connection for external antenna (type TS-9) | Replaceable battery 3,000 mAh | MicroUSB connection

Configuration and software

Confirguration is simple and easy. After power on the device, you have to connect via WLAN with the Huawei E5785, then you can enter the SIM pin and set up by Huawei HiLink App (available for Android and iOS) or via the browser web interface (IP: 192.168.8.1). An assistant leads through the most important settings, so that even less experienced users should be able to cope quickly. The used provider is recognized automatically via the SIM card, and normally the APN does not have to be entered.

Further settings can be made in the web interface, for example, roaming for the use of the device abroad can be activated or the mobile network technology can be selected manually. You can store a data plan in the statistics menu and it is possible to send and receive text messages.



Huawei E5785: modem in the test

The modem of the Huawei E5785 left an ambiguous impression in the test. If the reception was good, the LTE hotspot delivered excellent data rates – in an LTE 800 cell (Volume 20) almost 70 MBit/s in the downlink and around 25 MBit/s in the uplink were possible. However, the reception was not always satisfactory overall and with poor reception, the modem also provided comparatively bad values: a Netgear Nighthawk M1 provides almost double times fast while a Huawei B618 LTE router even three times as fast. The mobile hotspot showed no weaknesses over UMTS, in this case the speeds were often even higher than the comparison devices.

To achieve the maximum possible speed, Huawei E5785 bundles different channels in the same or in different frequency ranges (see table above, “CA combinations”). In the test, the maximum data rate was about 200 MBit/s – significantly more will probably reach only very rarely, because the LTE networks of the providers are now often well utilized.



If required, an external LTE MIMO antenna can be connected to the Huawei E5785. For this purpose, two TS-9 connectors are available under a cover at the side. In the test, the use of a 40dBi LTE MIMO antenna with two TS-9 pigtails worked flawlessly.



WLAN with extender function

The WLAN of the Huawei E5785 operates either in the frequency range around 2.4 GHz or in the range around 5 GHz. The 802.11a/b/g/n/ac standards are supported with 2 × 2 MIMO antenna technology. Over 2.4 GHz are possible up to 300 MBit/s, on 5 GHz up to 867 MBit/s. In the test, the maximum connection speed was reached with an Apple MacBook Pro even at about 4m distance (line of sight), but as soon as objects or even a wall between hotspot and terminal are, the speed drops significantly. Overall, the range was neat, not better or worse than other mobile Wi-Fi hotspots. What was conspicuous: when using 5 GHz WLAN, the Huawei E5785 always needed about a minute after power-up to perform the DFS scan. During this time the WLAN connection was not usable.

Huawei has again integrated the WLAN Extender function on the E5785, as with many previous models. The function allows using an existing WLAN connection as Internet access, as soon as it is within reach. This saves data volume at the data tariff. The WLAN Extender must be configured once via the web interface or the Huawei HiLink App, but can then be switched on and off on the device itself via the menu and the power button. In the test it was noticeable that the speed was limited to about 15 MBit/s when using the WLAN Extender function. However, this is not only the case with the E5785, the sister model Huawei E5885 also had this restriction.

Battery and others

The battery of the Huawei E5785 is to allow about 10 hours of operation according to the manufacturer. In the test this was approximately achieved, with the operating time varies slightly depending on the application scenario. If you use the LTE hotspot in a train or in a car, where cell changes often have to be carried out, the battery life is slightly lower than for stationary use. The number of connected WLAN devices also has an impact on the runtime.



The Huawei E5785 does not have a MicroSD memory card slot. The site has a micro-USB port for charging and connecting to the computer. Even if no device is connected via WLAN and the Internet connection is exclusively used via USB: you can not completely switch off the WLAN.



Conclusion

Overall, the Huawei E5785 left a good impression in the test. The battery life is good, the setup was fast and the operation is very easy. Wi-Fi and modem worked perfectly in the test, the LTE speeds with weak reception but could be improved.



The Huawei E5785 has to fend off competition, especially from its own home: the LTE hotspots Huawei E5577C and Huawei E5377 are a bit slower and have a shorter battery life. A slightly more expensive alternative is the Huawei E5787 with a large touch screen and the Huawei E5885 with LAN connection on. Recently, Huawei released a new Gigabit LTE hotspot Huawei E5788, we suppose the price of Huawei E5785 would drop soon after the new model available on the market.



Huawei E5885 Mobile WiFi Pro2 Test

As a successor of the popular Huawei E5770 LTE hotspot, the Huawei E5885 Mobile WiFi Pro2 is now presented to market. The Huawei E5885 comes with a fast LTE Cat6 modem for speeds up to 300 Mbps in the downlink and up to 50 Mbps in the uplink. Compared to its predecessor, the battery has been increased again, it now offers a capacity of 6,400 mAh. Compared to other mobile hotspots, the integrated RJ45 Ethernet port is certainly the most important unique selling proposition. This review will highlight the strengths and weaknesses of the Huawei E5885 Mobile WiFi Pro2 for and pinpoint whether it is worth buying.



Before we take a close look at the technical data, we can see the model of the device: black Huawei E5885Ls-93a (this is the exact model name for the European version). Connected to the hotspot is a small hand strap, which is also a USB to micro USB cable. Furthermore, it comes with a power supply with an output of 5V/2A and the corresponding USB to Micro-USB cable to charge the device.



In addition, Huawei E5885 comes with a small adapter from Micro-USB to USB Type C, so that even modern smartphones can easily charge with the power bank function of the Huawei E5885. Finally, you will find in the packaging a printed warranty notice and a multilingual quick start guide.

Huawei E5885: technology

In my test, I used the Huawei E5885 in black color, the material on the front and on the back is reminiscent of synthetic leather and feels quite high quality. The back of the Huawei E5885 can be removed for insertion of the SIM card and optionally a MicroSD memory card. You need a MicroSIM card, but if you use it carefully, you can also use Nano-SIM cards with an adapter on MicroSIM.



Manufacturer & Model: Huawei E5885Ls-93a
Technologies: LTE / 4G (Cat6) | UMTS / 3G | GSM / 2G
Frequency ranges: * GSM: B2 / B3 / B8 / B5
* UMTS: B1 / B2 / B4 / B5 / B6 / B8 / B19
* LTE TDD: B38 / B40 / B41
* LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B19
Maximum speeds: * LTE: 300 Mbit/s download, 50Mbit/s upload

* UMTS: 42.2 Mbps down, 5.76 Mbps up (using DC-HSPA+)

* GSM: 236 kbps (when using EDGE)

Wireless Standard 802.11a/b/g/n/ac | 2 × 2 MIMO | 2.4 GHz or 5 GHz
Software in the test: Firmware version: 21.236.05.00.1217
Others: Monochrome display | NFC | Battery 6,400 mAh, Powerbank function |MicroUSB and full-size USB port

The battery is not changeable. On the back are important information about the device, including the WLAN name and various passwords. All ports are hidden under a cover on the side of the Huawei E5885. There you will find a micro-USB port for charging the device, a full-size USB port for using the Powerbank function and a RJ45 Ethernet LAN connection.



On the front there is a small monochrome display, which shows the most important information about the Internet connection and the device itself, such as the signal strength, the battery level and the number of connected WLAN devices. If you press the power button, which is located on the side of the E5885, you can display the WLAN password in plain text. There is also a WPS button on the side of the hotspot and an NFC antenna on the front for easy Wi-Fi connection without the hassle of entering the password.



Compared to other mobile LTE hotspots like the Huawei E5787 or the Netgear AirCard 810, the Huawei E5885’s display is very small. In addition, the information displayed is often difficult to read due to strong reflections of the cover.

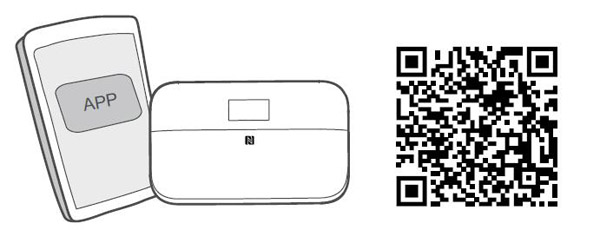

The configuration of the Huawei Mobile WiFi Pro2 E5885 must be done either via the browser Web Interface or the Huawei HiLink App, which is available for iOS and Android. Both the smartphone app and the web interface are easy to use and available in various languages. Much more detailed setting options are available via the web interface clearly, but the app is completely sufficient for everyday use; the most important functions such as SMS, memory card access or configuration of the WLAN extender are also available via the app.

Huawei E5885: Details about the WLAN

The maximum of 32 devices can be supplied with an internet connection at the same time. Both the frequency range around 2.4 GHz and the 5 GHz is supported, the maximum speed on my Apple MacBook Pro was just below 600 Mbit/s. That’s enough to use the maximum modem speed of theoretically 300 MBit/s on the laptop. Of course, the WLAN range depends on various factors, in my test I was able to receive the WLAN signal in the 2.4 GHz band but also over 10m distance and through two walls and surf the Internet fluently. For some users certainly a negative point: there is no way to completely disable the WLAN. Even if only USB or LAN is used for Internet access, the WLAN is active.

Huawei E5885: wireless extender

The WLAN Extender feature has become very important to many users. This feature allows you to use an existing Wi-Fi network as Internet access. This can save data volume on the SIM card. Fortunately, the Huawei E5885 also has a WLAN extender function, which tested perfectly and was very easy to set up. The maximum number of possible WLAN devices is reduced to 31 when using the Extender function. It was noticeable that the speed was limited to about 15 megabits per second – even if the original wireless has made much higher speeds possible. For daily use, the speed of 15 Mbit/s is probably sufficient for most of the users.

Huawei E5885: No Gigabit Ethernet

The RJ45 Ethernet LAN port on the Huawei E5885 side can be used to provide Internet access to a wired device such as a desktop PC. In the test, this worked fine. There is also the option of using the LAN port as an Internet access instead of the cellular modem. This also worked perfectly smoothly in the test, the LAN connection was recognized immediately and the Internet access was established. Unfortunately, the RJ45 Ethernet port supports only 100Mbps connections – Gigabit LAN is not supported. This is annoying, because thus the full modem speed over LAN is not usable.

Huawei E5885: LTE Speedtest

In the test, Huawei Mobile WiFi Pro2 E5885 used SIM card from Vodafone. The reception was quite good at LTE band 3 and 20. Positive: even in regions with a very weak LTE signal, you could still surf fluently, even if downloads lasted much longer. Compared to a Netgear AirCard 810 hotspot, it was noticeable that the uplink speeds were often slightly slower than those of the competing device – but all in all, the data rates of the E5885 were good.



Theoretically, the modem allows speeds of up to 300 MBit/s in the downlink and 50 MBit/s in the uplink via LTE, in the test at least about 200/45 Mbit/s were measurable. In most cases, the speed is well below the maximum possible, since the LTE radio cells are now well utilized. Of course, the Huawei E5885 also supports 3G and 2G as a backup and if desired, you can also specify the network technology in the web interface manually (4G only, 3G only, etc.).



Unfortunately, the Huawei E5885 has no external antenna connections, which is quite unusual, because most other mobile hotspots have these connections. If you want to use the Huawei E5885 abroad, you should pay attention to the supported frequency bands. The Huawei E5885Ls-93a (European version) is perfectly suited for use in Europe, partly also in North America and Asia is possible. For non-European travel, however, it is best to first clarify which frequency bands are relevant in the destination country.

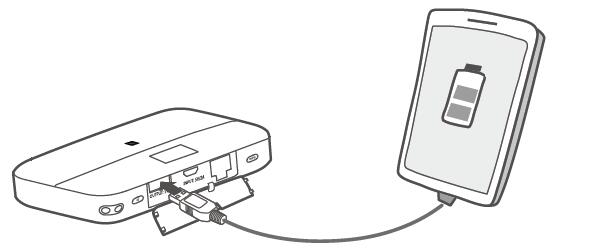

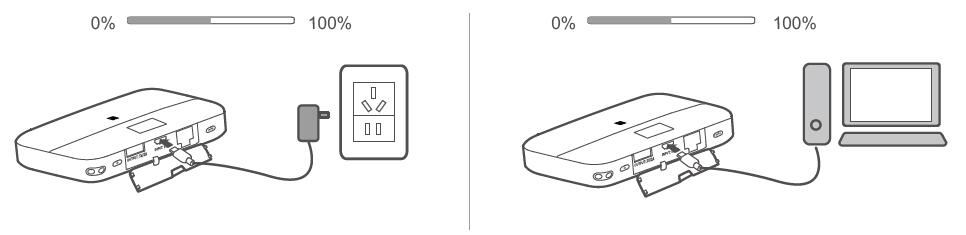

Huawei E5885: battery and power bank function

The battery of the Huawei E5885 has a capacity of 6,400 mAh. That should be the largest battery of a mobile LTE hotspot currently. In my review, I was able to achieve a useful life of about 20 hours with continuous use of the hotspot feature. Of course, it takes a long time to charge the battery – the device had to charge about 5 hours with the included 5V / 2A power supply. The Power Bank function to charge other devices worked perfectly in the test. Pleasing is the high output power of 5V/2A, so that current smartphones can be charged quite quickly.



Huawei E5885: test conclusion

After about two weeks of testing, I can recommend the Huawei E5885 to anyone looking for a hotspot with a fast LTE modem, a strong battery, and an Ethernet LAN port. The device worked perfectly in the test and provided a stable and fast internet connection at all times. Another positive feature was the fast and easy-to-use web interface and the WLAN Extender function. The powerbank function is also helpful and is very well complemented by the included accessories.



However, the Huawei Mobile Wi-Fi Pro2 E5885 hotspot also has weak points, as the test has shown. There are no connections for an external LTE antenna and even when using the Ethernet connection there is no possibility to completely switch off the WLAN module. With the 100 MBit/s connections, it is incomprehensible why Huawei has not installed a Gigabit Ethernet connection, only about one third of the maximum LTE modem speed can be used over LAN. Even the very small display is quite a weak point.





Despite the mentioned weaknesses, the Huawei E5885 is a very good device, the bottom line is the price-performance ratio. Of course, there are alternatives: if you do not need a LTE Cat6 or 5 GHz WLAN, you can confidently use the predecessor Huawei E5770.

Difference between Huawei E5786 and E5885

It has been months since the Huawei Mobile WiFi Pro 2 was released to market and we had introduced this new 4G router in details. If you had used the Huawei first LTE cat6 mobile router, you may know the Huawei E5786 4G hotspot. Today, we will have a look at what’s the difference between the Huawei E5885 and E5786.

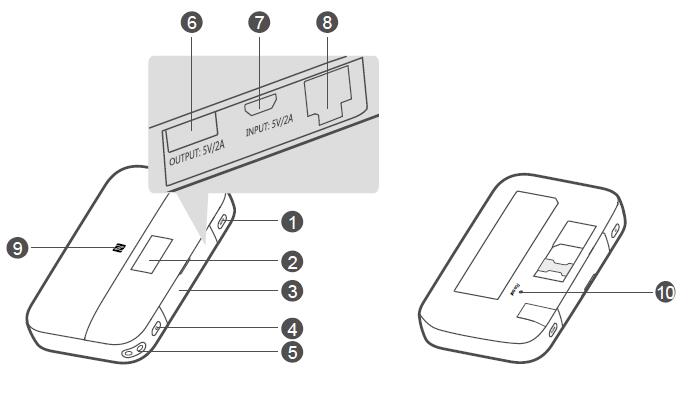

Appearance

As we introduced before, the Huawei E5885(available model called E5885Ls-93a) follows the design of the Huawei E5770 Mobile WiFi Pro. On the front upper side, there is only a small screen to show connection information. The upper side is made of plastic but looks cool, the below part is made of high quality leather, which makes it feels very good in hand. Huawei logo is on the leather.  The whole body of Huawei E5786 is made of plastic, but it also feels good and slippery. The Huawei logo and power button are located at each side of the screen of E5786.

On the back of Huawei E5786, there is Huawei logo with “mobile WiFi”. The Huawei E5885 back has Huawei logo and words “CAT6/6400mAh/23Wh” which indicates the mobile router is a LTE Category 6 mobile hotspot with 6400mAh battery for 23 hours working time.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 back logo

The Huawei E5885 power and WPS button are located at the top edge. Between them, the Output and input USB ports, and the Ethernet port are covered by a small cap. The Huawei E5786 has a menu button on the top edge and USB port is at the opposite side.

Huawei E5786 back logo

The back cover of Huawei E5885 and E5786 can be opened. In the Huawei E5885, we can see the SIM card slot and Micro SD card slot are located, where there is a reset button in red. Below is a label with the model number, IMEI number, SSID, WiFi key, IP address, user name and password. One QR code is also included so as to scan and connect. The Huawei E5786 also has the SIM card and MicroSD card slot lying together. What’s more, two TS-9 connectors for external antennas are covered by a cap. However, there is no antenna connector in Huawei E5885.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 sim card slot and sd card slot

Technical Specifications

The Huawei E5885 and E5786 are both LTE cat6 mobile hotspot which could support LTE download speed up to 300Mbps and upload speed to 50Mbps. They both provide variants for different carriers and various LTE frequency bands. The WLAN standard supports latest 802.11ac with dual band. Huawei E5786 could support up to 10 wireless devices to access internet through WiFi while the latest Huawei E5885 supports maximum up to 32 users. They both use the Micro SIM card. The Huawei E5885 provides one more connection by Ethernet cable while Huawei E5786 can only keep connected with SIM card.

Huawei E5786 antenna connectors

Battery

The back cover of the Huawei E5786 and E5885 can be opened, but the battery of them can’t be removed for change. The battery of Huawei E5786 is 3000mAh, which can keep working for 10 hours. While the Huawei E5885 has larger battery of 6400mAh, which would provide 23 hours working time. They both can charge other electric devices as a mobile power bank. However, the Huawei E5786 needs an accessory call AF18 adapter to make this function true. The Huawei E5885 can directly charge other devices without any problem.

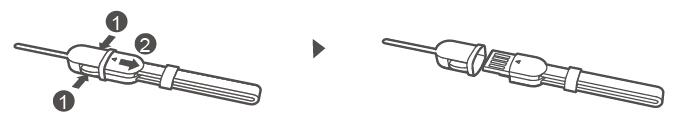

What’s more, the Huawei E5885 has a special USB cable with the device. The USB cable can be used as a lifting rope, which is really a smart and practical design. The Huawei E5786 uses the normal USB 2.0 cable for charging.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 USB Cable

From the comparison, we think there is no doubt that the latest Huawei E5885 is much better than the E5786, ont only on the design but also the practical functions. So if you are looking for a wonderful mobile hotspot, we think Huawei E5885 is good to recommend.

Huawei E5885 LTE Mobile WiFi Pro 2 Available

Huawei recently introduced a new 4G Mobile router as a successor to the popular Huawei E5770 Mobile WiFi Pro Hotspot: the Huawei E5885 (Mobile WiFi Pro2). The LTE router offers a 6,400 mAh strong battery, which is to allow up to 25 hours of operating time and, of course, besides the usual WLAN, an RJ45 LAN connection is again available. The integrated LTE modem is twice as fast as the predecessor with up to 300 MBit/s for download. The Huawei E5885 is only available in Asia now. In Europe, the device is only yet available.

LTE Cat6

The E5885Ls-93a version, which is currently available in the online market, is intended for the Asian market. Most of the packaging is labeled in Chinese or English and the supported frequency bands mainly take into account the Asian needs. Nevertheless, according to the data sheet from Huawei, the Huawei E5885 also supports all LTE frequency bands (volume 3, 7, 8, 20) which are important for Europe areas. Also UMTS on 2100/900 MHz and GSM network are supported.

In comparison to the predecessor Huawei E5770, the speed is also important to note: the support of LTE category 6, ie up to 300 MBit/s in the downlink and up to 150 MBit/s in the uplink. LTE Cat6 with channel bundling (Carrier Aggregation) is now used by many network operators and therefore one should notice the improved modem in some situations. However, it is not particularly advanced, because the Netgear AC810 LTE Hotspots have been available for long time, which can reach 600 MBit/s (LTE Cat12) for download.

RJ45 LAN & WLAN

The Huawei E5885Ls-93a is particularly interesting because it offers a full RJ45 LAN connection. This allows devices without WLAN to be connected to the network without any problems, without the need for additional software, as well as to use the Ethernet port for Internet access and to use the E5885 as a WLAN hotspot without mobile radio. Something strange, however, appears the fact that the connection is a “normal” 100 Mbps LAN connection, where the LTE modem can use up to 300 MBit/s.



If you want to use the full modem speed, then must be forced on Wi-Fi. According to Huawei, up to 32 devices can be supplied simultaneously with the Internet, the speed should be better thanks to 802.11ac standard (2.4 GHz and 5 GHz) in the best case than over LAN.



Large battery

Another unique feature of the Huawei E5885 Mobile WiFi Pro2 is the huge 6.400 mAh battery. Up to 25 hours of operating time should be possible. As an alternative to the predecessor, the device can be used as a power bank, for which a corresponding charging cable is already included in the package box.

Summary

Huawei E5885 is a good mobile 4G Router with powerful function for multiple situations. It’s cool in appearance and supports LTE advanced network. When Huawei presents the English versions for global market, we suppose it would be great gadget star in future.



Huawei Mobile WIFI PRO 2 E5885

Huawei presents its new version of the Mobile WiFi PRO to replace the predecessor Huawei E5770 and simply calls it Mobile WiFi PRO 2. The specific model number is E5885. This new hotspot 4G mainly brings the 4G Category 6 with a theoretical rate of 300 Mbps in download and 50 Mbps in upload.

In the new Mobile WiFi Pro 2, a rise of WiFi with features bringing WiFi 802.11ac and 5 GHz. It also gains a rise in battery capacity from 5200 to 6400 mAh and is offered the ability to be able to recharge other devices via its full-size USB port (in addition to its microUSB charging port).

Of course, the RJ 45 Ethernet port and the 0.96 inch OLED screen are retained. The Huawei Mobile WiFi PRO 2 also recovers the band 2600 MHz in FDD that did not have in its predecessor E5770. The wrist strap could work as a USB charging cable, which is a special and good design. Two colors will be available, Black & Gold and Pink & Gold.



As a wireless hotspot, Mobile WiFi pro 2 E5885 could support up to 32 simultaneous WiFi users, which is the much powerful than the latest Huawei E5786 and E5787 LTE CAT.6 mobile hotspot. The Mobile WiFi PRO 2 also allows you to connect peripherals to WiFi by scanning the code QR, and with the HiLink application from Huawei without having to search for the network and enter the password.

The Mobile WiFi Pro 2 E5885 is compatible with the following LTE bands: 1/3/5/7/8/20 (800/850/900/1800/2100/2600MHz) in FDD, and in addition the 2600MHz in TDD (38).

Here now, the Huawei Mobile WIFI PRO 2 was launched in Saudi Arabia and China, we suppose it will be available in Europe later soon.



Huawei E5885 Mobile WiFi Pro 2 Technical characteristics:

* WIFI b/g/n/ac (802.11ac) compatible

* Number of users connected simultaneously: up to 32 Devices

* WMM (WiFi multimedia)/media server feature: Yes

* Beamforming / MultiBeam feature: Yes

* UPNP (universal plug and play): Yes

* Frequency range: Dual Band (2.4 GHz / 5 GHz)

* Speed ​​for download: up to 300 Mbps

* Special features Cat6 – 300 Mbps, HiSilicon LTE Cat6 Chipset

* Guest network access: Yes

* Number of ethernet port (RJ-45): Single Port (LAN) / RJ-45

* Cards supported: Micro SD / Micro SDHC / Micro SDXC

* Color: Black

* SIM type: Micro SIM

* LED indicator: Signal Strength / Network / Charging / Provider / WiFi / SMS

* Number of antenna: no

* Security features Encryption (WEP / WPA-PSK / WPA2-PSK)

* WPS (WiFi protected set-up) Yes

* Battery type: Lithium Ion (Li-Ion)

* Battery capacity: 6400 mAh

* Dimensions: 23 mm X 69.20 mm X 112 mm

* Weight 188 g

Huawei E5885Ls-93a Mobile WiFi 2 Pro Test

In the internet era, we need surf internet anytime and anywhere, but when going outside, the unstable WiFi and expensive charge on 4G may be a big problem for those who want high quality data transmission. And then the Mobile WiFi Hotspots are becoming a good solution for this. Today, we would introduce a new Mobile Hotspot from Huawei, and let’s see what’s new it bring to us.

Cool Appearance

The new model is named Huawei E5885 Mobile WiFi 2 Pro, more specifically; the model number is Huawei E5885Ls-93a. We suppose there will be other model numbers for various network providers over the world. If the new brother model available, we would also introduce.



Following the design from first generation of Huawei Mobile WiFi Pro E5770, the Huawei E5885Ls-93a is in cuboids shape, but it’s thicker and more elegant than E5770. The size of E5885 is just as large as one hand and user can easily take it in hand or pocket. It also looks like a common mobile power bank, actually, it can work as a mobile power bank to charge other devices by USB cable.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 front logo

The top half of the front is made of black plastic material, where there is a 0.96 inch OLED screen in the middle. The screen function is similar to its predecessor huawei E5786, but not a touch screen like Huawei E5787 mobile WiFi Touch. When the Huawei Mobile WiFi Pro 2 working, the screen would show the network connection status, battery status, signals, SMS and WiFi connections etc.. The rest half of the front is made of leather, which makes the Huawei E5885 very soft so as to have a very good touch feel. And we can see, the Huawei logo is just printed on the leather at the below side of the LED screen. The back cover is also made of leather with Huawei logo and the words “CAT6/6300mAh/23Wh”, which means the E5885Ls-93a could support LTE Cat.6 and has large battery of 6400mAh to have 23 hours continuous working time.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 back logo

The back cover of the Huawei E5885 could be opened and we can see the SIM card & Micro SD card slot with one Reset hole. Huawei E5885Ls-93a uses Micro SIM card. The Huawei WiFi 2 Pro could support maximum SD card storage up to 32GB, and the data could be shared through the WiFi in the connected users. At the side of the SIM card slot, there is a small label which indicates the name of this device: Huawei Mobile WiFi Pro2 E5885L and model number E5885Ls-93a. And the SSID, WiFi key, IP address, IP log in user name and password. There is also one QR code, where user can scan to connect, and the IMEI number, S/N number, certified logos are listed below.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 ports

The round side of the Huawei E5885 is made in champagne gold color, which makes the WiFi Pro 2 looks very cool. On the top edge, the WPS and power button are located at each side. Open the cap between them, we can see the 5V/2A output USB port, Input 5V/2A port and one RJ 45 Ethernet port. With the Huawei E5885, there is a sling which can not only hang the device but also work as a USB cable. It’s very useful for user to hold the E5885 WiFi pro 2, and charge other device. We see the design is also available on the Huawei E5770 mobile WiFi Pro and it’s really a good design.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 power and WPS button

Internet Connection Through WiFi

The Huawei Mobile WiFi 2 Pro is easy to use, user just need one valid SIM card with data plan, plug into the SIM card slot and power on, then there will be WiFi available for internet connection. The SIM card needs to be Micro SIM. User can see the network mode, data used and left, battery status in Huawei HiLink APP through smartphones. And user can also setup the WiFi mode, single band or dual band (2.4GHz and 5GHz) are both available. Of course, we can also see the data used and network mode & provider’s name on the OLED screen.

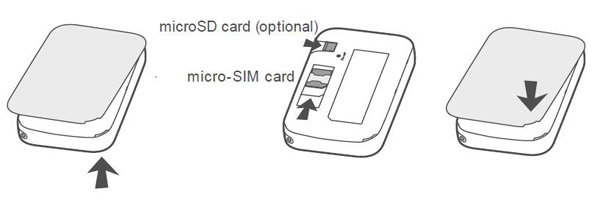

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 sim card slot and sd card slot

Internet Connection via Ethernet

If only Ethernet cable is available for internet, Huawei E5885 Mobile WiFi Pro 2 can also show its function. Just plug the Ethernet cable to the RJ45 port and configure the settings through Hilink APP or web interface, you can then access internet. We suggest downloading the Hilink APP, connecting with the Huawei E5885 WiFi and open the APP for settings. To be more secure, you can also change the log in user name and password. The whole process is very simple and user can also do further settings if necessary.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 sim card slot

Work as WiFi Repeater

The Huawei E5885L can also work as a WiFi repeater, which means the WiFi PRO 2 can get connected with the existing WiFi from other gateway or router, just like a phone connecting to WiFi. After connected, the Huawei E5885 can extend the WiFi coverage for more space. However, if the Huawei E5885 is already connected with Ethernet cable, the WiFi repeater function would be unusable.



Battery Saving and Guest WiFi

The Huawei E5885 is very smart in application. There is battery-saving function, when it’s activated, the WiFi Pro 2 would automatically close the WiFi if long-time data transmission so as to save battery. Sometimes, user may need setup a special WiFi for visiting guest, the Huawei E5885 can provide this function and if don’t need it, user can close this function easily from Hilink APP.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 in box

Storage Sharing without Data Consumption

The users connected with Huawei E5885 WiFi can share the files or videos in Micro SD card easily, what’s amazing is that the sharing would not cost any data, so it’s called ”Zero data consumption sharing”. It’s better to share the files, images or videos through the Huawei Hilink APP. The Huawei WiFi 2 PRO also supports sending short messages.



Fastest Wireless Surfing Speed

In our test, the Huawei WiFi 2 Pro would provide stable and fast internet connection. With the support 300mbps download speed on LTE category 6, Huawei E5885 can switch to the fastest network mode available so as to provide the best support for data transmission. It can definitely meet the common requirements whenever you are at home or going outside.

HUAWEI E5885Ls-93a Mobile WiFi Pro 2 USB Cable

Summary

As a latest LTE gadget combining the functions of 4G mobile hotspot, Ethernet gateway and mobile power bank, Huawei E5885 mobile WiFi Pro 2 is a powerful and practical partner for outdoor activities or business travel. With the cool design and good touch feel, we can’t praise more on the small pocket router. The easy setup and management is also very good for most users.

Huawei E5885 Mobile WiFi PRO 2

Terminals, which passed the technical standard conformity certification or construction design certification of the Ministry of Internal Affairs and Communications from the second half of 2017, were advertised. The Huawei Technologies FDD-LTE/TD-LTE/W-CDMA/GSM terminal “HUAWEI E5885Ls-93a” passed through the Certification Technology Support Center on March 29, 2017. The construction design certification number is 018-170046. The Huawei E5885Ls-93a is also named Huawei Mobile WiFi Pro2, which is upgraded from the first generation of Mobile WiFi Pro(Huawei E5770). Comparing with the predecessor model, Huawei E5885 mobile WiFi Pro2 has great improvement in the specifications.

Huawei E5885 E5885Ls-93a mobile WiFi Pro2

The TD-LTE 2500 (B41)MHz, W-CDMA 2100 (I) / 900 (VIII)/850 (B2) MHz, FDD-LTE 2100 (B1) / 1800 (B3) / 900 (B8) / 800 (VI / XIX) MHz has been certified. It is also passing through frequencies of Bluetooth and wireless LAN.



In addition to the 2.4 GHz band, the 5.0 GHz band can also be used for the wireless LAN, and the standard is expected to correspond to IEEE 802.11 a/b/g/n/ac. HUAWEI E5885Ls-93a is now sold in HUAWEI Mobile WiFi Pro 2 in Saudi Arabia. It corresponds to LTE Category 6, and the communication speed is 300 Mbps maximum for downlink and 50 Mbps maximum for uplink.

The capacity of the battery pack is 6400 mAh. The larger battery can charge other electric devices such as smartphone, Pads, tablets etc.


In summary, the E5885 is a powerful 4G Pocket WiFi device with a 6,400 mAh battery. It has 800 hours standby time and supports access for 15 devices. Besides, it is a power bank with quick-charge for your digital product. The E5885 has one USB string accessory with a minimal size. It can be fixed on the equipment easily. Pressing the button on two sides can open it. You can find the USB cable much easier when you need to operate the equipment. Based on good experience in usage and portability, it has the suitable size so that you can easily put it into your pocket or bag. To achieve a good handling, it uses soft touch finishing on the surface.



General features of Huawei E5885 Mobile WiFi Pro 2:

* Product type – 4G Portable Router

* Wireless LAN standards – Wireless AC (802.11ac)

* Max number of connected devices – up to 32 Devices

* WMM (WiFi multimedia)/media server feature – Yes

* Beam-forming / Multi-Beam feature – Yes

* Frequency range – Dual Band (2.4 GHz/5 GHz)

*LTE CAT6 Download Speed Up To 300Mbps

* Special features Cat6 – 300 Mbps, HiSilicon LTE Cat6 Chipset

* Battery type – Lithium Ion (Li-Ion)

* Battery capacity – 6400 mAh

* Color – Black & Gold color

* SIM type – Micro SIM

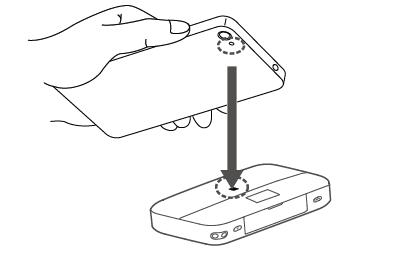

* NFC function, Zero configuration for Wi-Fi, High speed Ethernet



If you want to know more details about Huawei E5885 Mobile WiFi Pro 2, welcome to check on www.4gltemall.com .
