Netgear Aircard 810s vs Huawei E5885

More and more new Huawei LTE advanced pocket WiFi routers are available in the market, which would be the powerful competitor to the 4G LTE mobile hotspot from Netgear wireless. Huawei E5885 is a new 4G pocket WiFi router at the end of 2017. Netgear AirCard 810s was available in 2016 and has already been the best seller in Netgear 4G Routers. Someone may ask: what’s the difference between the Huawei E5885 and Netgear AC810S? Which one to buy from the two mobile routers? In this article, we will review the appearance, interfaces, specs, price, and other features to answer the questions.

Appearance and interfaces

Since the Aircard 810s was available in the market for around 2 years, you may already know the Netgear AC810s, which is the world’s first LTE cat.11 mobile hotspot. On the front, there is a 2.4-inch touchscreen with “Home” and “Back” buttons at the screen side. The touchscreen allows users to do simple settings for internet connection. The power button is on the top edge side while on the opposite side, two connectors for an external antenna and USB 3.0 port are located. Like other Netgear 4G WiFi routers, the two connectors are a TS-9 type. The back cover of the Aircard 810s could be opened and the battery is removable.

Huawei E5885 may not be as well-known as Aircard 810s but it has unique features. Here now the market has only the E5885Ls-93a available. Not sure whether there will be a new variant model available in near future. The Huawei E5885 is thicker than common 4G mobile hotspots because it has a large built-in battery of 6400mAh. There is also a small screen on the front, but not touchable. The power button and WPS button are on the top edge side of the Ethernet port and USB ports. You much open the cap to see the ports. However, unlike other Huawei mobile router 4G, the Huawei E5885 doesn’t have the connectors for external antennas. The back cover could be removed but the built-in battery can’t be removed. The Huawei E5885 and Netgear Aircard 810s both use Micro SIM card size. The E5885 has also the Micro SD card slot for storage.

Specs and Features

From the appearance, we can see the Huawei E5885 and Netgear Aircard 810s are very different. Then let’s have a review about the Huawei E5885Ls-93a specs and Netgear AC810S specs.



Model Huawei E5885Ls-93a Netgear Aircard 810s
Product type LTE Mobile Hotspot with Ethernet port LTE Mobile Hotspot
Category LTE Cat.6 LTE Cat.11
Chipset Hisilicon LTE Cat6 chipset Qualcomm Snapdragon X12
Data rates DL 300Mbps/UL 50Mbps DL 600Mbps/UL 100Mbps
Supported 4G LTE frequency bands * FDD-LTE Band 1/2/3/4/5/7/8/19/20/28
* TDD-LTE: Band 38/40/41/42
B1, B3, B7, B8, B28
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 32 users 15 users
MIMO 2 X 2 MIMO 2 x 2 MIMO
Connector for external antenna No connector Two, TS-9 jacks
Buy Antenna N/A Aircard 810s External Antenna
App management Huawei Hilink APP 3.0 Netgear Aircard APP
SIM type Micro SIM Micro SIM
Battery Non-removable, 6400mAh Removable, 2930 mAh
Dimensions  112.00 x 69.20 x 23.00mm 112 x 68.6 x 15.45mm
Ethernet Port On port for WAN/LAN port(RJ-45) No
Datasheet download Huawei E5885Ls-93a Datasheet Netgear AC810S Datasheet
User Manual Huawei E5885Ls-93a User Manual Netgear AC810S Manual
Other features Power bank, CA, NFC 3 band CA
Reviews Huawei E5885 Review Netgear Aircard 810s review
Price 249.00USD 249.00USD



Summary

From the specs table, we can see the new Huawei E5885Ls-93a 4G hotspot supports LTE category 6 while the old model Netgear 810S supports LTE Cat.11, which could achieve almost double faster speed than that of Huawei E5885. However, the Huawei E5885 has many features that are very powerful. Firstly, the Huawei E5885 has one Ethernet port for WAN and LAN, which would provide more connection possibility, especially when the 4G connection is not available and only Ethernet connection is available. Secondly, the Huawei E5885Ls-93a could support maximum users up to 32 users while Netgear Aircard 810s supports only 15 users. Thirdly, the Huawei E5885Ls-93a has a large battery pack of 6400mAh, which would keep working for a long time and charge other devices. The AirCard 810s also has the JumpBoost, which is to charge devices. However, the battery of 2930mAh seems weaker than Huawei E5885 battery.

However, the more advanced Netgear 810S has the same price as the latest new Huawei E5885. If you need a practical 4G mobile WiFi hotspots, Huawei E5885 seems to be more powerful and useful. But if you just need a faster internet connection, the Netgear Aircard 810s is the right one to recommend.

Huawei E5787s-33a Box Opening and Simple Settings

As the successor to Huawei E5786 LTE hotspot, Huawei presented a new Huawei E5787 mobile hotspot. Perhaps following the steps of Netgear Aircard 810s, Huawei makes the new LTE gadgets more smart than ever. The most obvious feature different from Huawei E5786 is that the Huawei E5787s has a touch screen, where user can do simple setting for the wireless network.

Huawei E5787 E5787s-33a

We get the Huawei E5787 in black color and the model number is E5787s-33a. The body of the new pocket WiFi is made of plastic but hand feel is good. On the top side, it’s the power button and it’s cool. The front 2.4 inch color touch screen is really selling point. This feature can be found on other Huawei mobile WiFi hotspots. This should be Huawei’s first LTE hotspot with color touchscreen. At the other side, it’s the USB port for charging. And two connectors for external antenna are covered by a cap. At the edge side, there is a place for lifting rope.

Huawei E5787 E5787s-33a

The back cover of the Huawei E5787s-33a could be opened for inserting the SIM card and battery. The battery of Huawei E5787 could be removed for exchange. The SIM card slot has a slider, user need to move the slider to open the cover and put SIM card in. Beside the SIM card slot, there is a label showing some information about the device:

Huawei E5787 E5787s-33a

Huawei Mobile WiFi E5787

Model: E5787s-33a

IP: 192.168.8.1

User: admin

Password: admin

SSID: Huawei-C0DD

WiFi Key: 41018956

IMEI: 86951602116xxxx

S/N: QTFDU17726001968

Huawei Technologies Co., Ltd

Made in China

Huawei E5787 E5787s-33a

Beside the label in the device body, there is a reset button in red color, which is to reset the Huawei E5787 to factory default if necessary. From the features and appearance, we can see the huawei E5787s-33a is very similar to Netgear Aircard 790s.

Huawei E5787 E5787s-33a



After plug in the SIM card and power on the Huawei E5787, we can see the Huawei E5787 would automatically detect the SIM card’s network provider and showed it on the screen. We didn’t do anything to setup and it would provide WiFi network. Simultaneously, the WLAN signal and connected WiFi users and battery status are also showed. The touch screen also indicates “Slide to open”, after slide, user can do some simple settings on the screen. If you want to do some advanced settings, you could log into the web interface 192.168.8.1 or user Huawei Hilink APP. You can scan the QR code on the package box to download the Huawei Hilink APP or download from Google Play or Apple Store.

Huawei E5787 E5787s-33a

In our test, the Huawei E5787 provided fast internet connection, but we didn’t reach the peak download speed of 300mbps. And the advanced settings are very practical. The battery capacity of 3000mAh can maintain more than one day full time use. And it has the function to charge other electronic devices. According to official sayings, up to 10 wireless users could connect with the Huawei E5787 for surfing. These technical features make it useful and we recommend it for those who usually need long time fast surfing and data plan.

Huawei E5787 E5787s-33a



Difference between ZTE UFi MF980 and Netgear Aircard 810s

Since more and more network providers deployed LTE advanced networks, many vendors over the world are providing new LTE gadgets to support the latest new LTE networks. The US vendor Netgear Wireless and Chinese vendor ZTE are two of them. Netgear presents the Aircard 810s with support of LTE Category 11 and ZTE provides the UFi MF980 with support of LTE Category 9. In this article, we will check what the difference is between the two mobile 4G Routers.

Appearance

The Netgear Aircard 810s has a 2.44 inch LCD touchscreen, user can do simple settings like operating a smartphone. However, the ZTE MF980 UFi’s 1.44 inch TFT screen is not a touchscreen, so it can be operated by the power and func button, web interface or by ZTELink APP. Of course, the Aircard 810s could also be operated from web interface and Netgear aircard APP. The ZTE UFi MF980 is very thinner than Netgear Aircard 810s, so the feel in hand is better.

They both have two connectors for external LTE antennas and the connector type is TS-9. The connectors in Aircard 810s are located at the two sides of the USB ports with small caps, while the connectors of ZTE MF980 are together. And they both use Micro SIM.

Battery

The battery of Aircard 810s is removable and the SIM card slot is in the battery slot. The battery capacity is 2930mAh, which could support 11 hours for continuous use. The battery of ZTE MF980 UFi is built-in and can’t be removed. And its battery is 2200mAh, which is enough for daily use, but can’t be changed to backup battery. But they both don’t have slot for Micro SD card.

Technical Specifications

With Qualcomm Snapdragon X12 chipset and the support of LTE Category 11, Netgear Aircard 810s could support peak download speed to 600mbps. ZTE UFi MF980 could achieve download speed to 450mbps and upload speed to 50Mbps with the support of LTE Category 9.



Netgear Aircard 810s could connect up to 15 wireless users simultaneously while ZTE UFi MF980 could support up to 32 wireless users to access internet, on this point, ZTE UFi MF980 seems more powerful than Aircard 810s. Regarding the WLAN feature, they could support latest Wi-Fi 802.11ac with 2 X 2 MIMO on dual band(2.4GHz and 5GHz).

Other feature

The Netgear Aircard 810s has an extra function called Jump Boost, which makes it could work like a mobile power bank to charge other electric devices such as smartphone, Pads etc..ZTE MF980 UFi doesn’t have this function per the official description.

Conclusion

Comparing the features and specifications of the Netgear Aircard 810s and ZTE UFi MF980, it’s not doubt that Aircard 810s is better than ZTE MF980. With higher configuration, Netgear Aircard 810s can provide better performance for internet connection, but price would be higher. ZTE MF980 UFi is also good for most users with budget price. But the built-in battery may not be a good feature if you want it to work for long time.



Actually, there are many more 4G Routers for LTE advanced networks, if you want to check more devices, welcome to check on www.4gltemall.com .

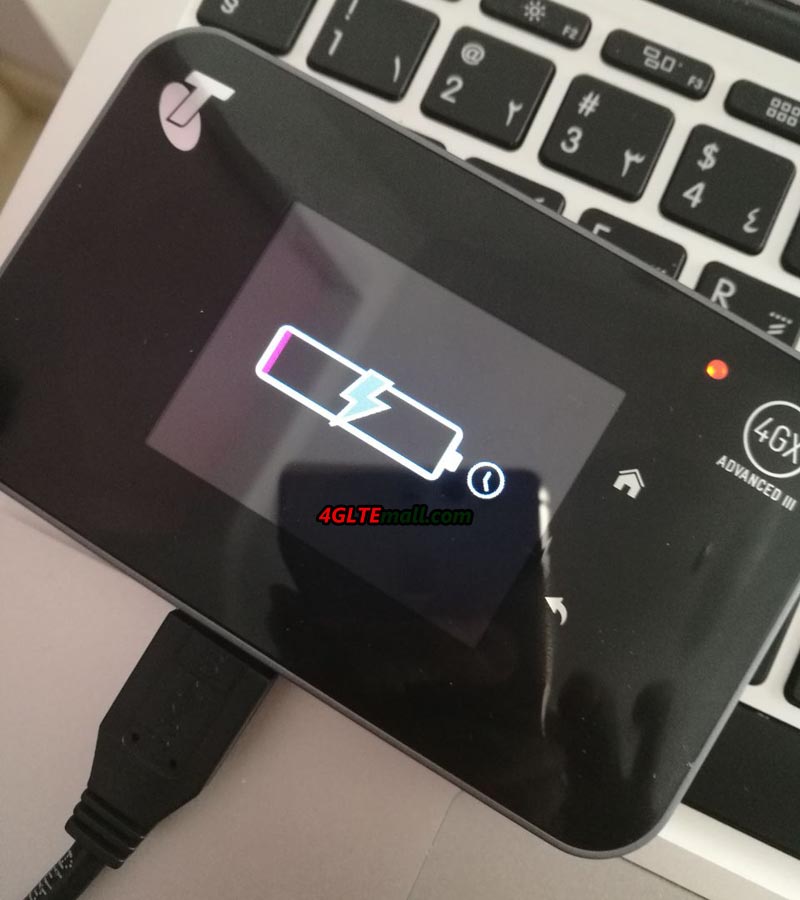

Netgear Aircard 810s Battery Uncharging Issue Resolved

You may had a Netgear Aircard 810s 4G LTE Mobile Hotspot. And it’s lucky that you didn’t encounter the problem about Aircard 810s battery for charging. However, there are some users of Aircard 810s who had a big headache for the battery charging issue. Today, we will share a case of resolving the battery charging problem. Hope some users of Aircard 810s would have a reference to overcome their trouble.

This is a real case which happened on one of our customer a couple of days ago. The customer name is David Dakak from Cyprus and his company name is Conqueror Information Technologies FZE. Perhaps the Netgear aircard 810s is not presented by the network providers, he bought the unlocked aircard 810s from us(www.4gltemall.com) on May 1st, 2017. At first, we send the Aircard 810s to him via DHL, but after sending the parcel to DHL, we were informed that DHL would not send device with Li-battery. We don’t know why but have a find another shipping forwarder to make our customer to receive the device soon because they paid express shipping.

We are lucky to find Singapore post to send the parcel via speed post. The customer received the Netgear 810S on May 11. However, the problem comes from that time. David wrote email to us to claim that the Aircard 810s would not charge when the USB cable connect with the power adapter. Actually, we had tested the device working well before sending to him. We replied to him and want to get few images to check what the problem is. David is very kind to cooperate with us; he had taken a short video to us about the USB connection with adapter and screen status. And when he pressed the power button and home button, there was still no any response on the Aircard 810s.

We guided him to pull out the battery from the Aircard 810s, leave the battery slot empty and then connect the USB cable to power adapter. This is the special feature of Netgear Aircard 810s, i.e without the battery in, it can still work when getting power from USB. This feature is also available in other Netgear devices such as Aircard 790s and Aircard 782s. Then the power lights on and we asked David to try to plug in the battery and see if the battery start charge but failed. When he plug in the battery, the screen of the aircard 810s is power off.

Then David pulled out the battery again and tried to connect the WiFi from Aircard 810s. After he connected with the WiFi, he logged in the web interface 192.168.1.1 and reset the Aircard 810 to factory default. Then he plug in the battery into aircard 810 and now the battery start charging. What amazing!



Perhaps the battery capacity is too low to keep it continuous working, David said the device may automatically switch off. After a long-time charging, this problem was also resolved finally.

This is one case about resolving the battery charging issue on one of our customer. We share this and hope this would help other users of Netgear aircard 810s to find the way to overcome this trouble. In short summary, if the battery of Netgear aircard 810s is not charging, pull out the battery and reset the aircard 810s to factory default, and then plug in the battery for charging.

Difference between Netgear Aircard 810s/790s and Huawei E5787

As Huawei’s first 4G mobile hotspot with touch screen, Huawei E5787 had attracts customers’ eyes when it’s presented to public. Now the Huawei E5787 had already been available for many network providers in Middle East areas. However, if you had used Netgear 4G Aircards such as Netgear Aircards 790s or 810s, you may the touch screen feature on a LTE mobile hotspot is not a new feature.

On the screen point, Huawei is following the Netgear’s steps. With the touch screen and easy operation, Netgear Aircard 4G hotspots had gained good reputation from many customers. Here comes the questions: what’s the difference between Huawei E5787 and Netgear 4G Aircard(790s & 810s)? In this article, we will have a look at the difference between them.



Appearance

The three 4G mobile hotspots are all in rectangle shape and have a 2.4 inch touch screen on the middle of the front. As we mentioned before, user can operate the device throigh the touch screen. Users can do simple setup without having to log in the web management page. This is also the selling point for them.

The Netgear 810s and 790s have a “home” and “back” button at the right side of the screen while the Huawei E5787 doesn’t have such button. They all have two connectors for external LTE antenna, which is important if the device is used at places with weak signal. The connector type is TS-9. The external LTE antenna can improve the network speed.



Technical Specifications



Huawei E5787 uses Huawei own Hisilicon LTE cat.6 chipset. The Netgear Aircards 790s and 810s both use Qualcomm LTE chipset like the predecessors, but they use different chipset model, Aircard 790s is based on Qualcomm MDM9230 and Aircard 810s is on Qualcomm Snapdragon X12 LTE modem.

With LTE cat.6 chipset platform, Huawei E5787 and Netgear 790s are same level products; both could support peak download speed up to 300Mbps and upload speed to 50Mbps on LTE network. Netgear aircard 810s is on a higher level to LTE cat11 and supporting downlink to 600Mbps, which is almost double of the speed from the E5787 and 790s. And aircard 810s is more advanced with support of 3 band carrier aggregation(CA) while the other two only support dual-band CA.



Perhaps Netgear 810s is targeted on top terminals, the 2G GSM network is not supported and only 3G UMTS/DC-HSPA+ is backward compatible. Both Netgear 790s and Huawei E5787 can switch to 3G UMTS/DC-HSPA+ or 2G GSM/GPRS network when LTE network is not available. Regarding the supported 4G LTE/3G/2G network frequency bands, it depends on the specific model.



The Aircard 810s and Huawei E5787 both support latest WLAN standards ac, but Aircard 790s missed the ac. But they are all with 2 x 2 MIMO technology. The Netgear Aircard 790s and 810S could both support up to 15 wireless devices to access internet while Huawei E5787 only support 10 users.

Battery and SIM card

Unlike Huawei E5786, the Netgear Aircard 790s & 810s and Huawei E5787 are with removable battery. The Netgear 790s and 810s both have the battery of same capacity to 2930mAh; Huawei E5787 has larger battery to 3000mAh. The two Netgear Aircards has the SIM slot for Micro SIM while the Huawei E5787 uses Mini SIM.



Regarding the performance of the network connection, we will do the test later and show full report accordingly.

TP-Link M7650 4G LTE Mobile Hotspot Review

The Chinese network specialist TP-Link was present at CeBIT 2017 and presented its new, mobile LTE router M7650. Purely optical, the model looks similar to the little brother TP-Link M7310, but inside is much more powerful hardware. With LTE Cat11 technology, the new TP-Link M7650 can handle a bandwidth of up to 600 Mbit/s in the download. Another highlight is that the M7650 provide networking with up to 32 devices via the WLAN network.

Features and characteristics of TP-link M7650
Manufacturer and type: TP Link M7650
Chipset: Qualcomm
LTE category: Cat. 11
Download rate up to: 600 Mbit/s
Upload rate up to: 50 Mbps
Supported LTE bands: B1,3,7,8,20 (800/900/1800/2100/2600MHz)
Downwards compatible with: HSPA+ (42.2 Mbit/s), UMTS, Edge, GPRS, GSM
Support for LTE-Advanced: Yes
MIMO Support: No
Connection for external antenna: No
Network | LAN & WLAN
LAN Ports: no
WLAN Standards: 802.11 a/b/g/n/ac
5 GHz WLAN Support: Yes
Encryption: WEP / WPA / WPA2
WLAN Hotspot Function: Yes
Others
Battery pack: 3.000 mAh
Dimension: 112.5 x 66.5 x 16mm
USB: No
Memory Card Expansion: Yes
Release: 2017
Price: 469.00USD
available at: www.4gltemall.com



TP-Link M7650 – Powerful Mobile Hotspot

The new portable 4G router looks smart. In order to meet the ever-increasing maximum bandwidths in the LTE networks, a modem has been installed, which the Internet speed could achieve at up to 600 Mbps ( Cat. 11 ) via LTE accesses. The upload is, however, with a maximum of 50 Mbit/s. At the moment (at the end of March 2017) the manufacturer didn’t release detail specifications of this new model. Therefore, we cannot known all the technical specifications, such as the dimension and weight. However, TP-Link confirmed, among other things.

The first thing, the M7650 could reach download speed up 600 Mbit/s. The WiFi module of the M7650 makes a good job here, as up to 867 Mbit/s are implemented via a 5 gigahertz frequency. Devices that do not support WLAN at 5 GHz can get network with 2.4 GHz. With this spectrum, up to 300 Mbit/s can still be implemented in the download. This mobile LTE router should not be blamed for the battery life. According to the manufacturer, with 3,000 mAh rechargeable battery, a maximum of 15 hours of continuous operation is possible. A mobile device can not only be connected with the M7650 via hotspot, but also configure the router.



The Chinese corporation TP-link does not show a new design for M7650 so that it can be special out of the mobile gadgets; it just follows the appearance of the M7310. There is a color mixture of silver and black and an informative TFT display. All information relevant to the operation is displayed on the latter, including the LTE signal strength, the battery status, the current speed or the network operator identification, everything is clear. The display measures 1.44 inches in the diagonal, it can be operated via physical buttons. It’s a pity that TP-Link M7650 does not have a touch screen while the similar model Netgear Aircard 810s already provides touch screen for users. What’s more, the integrated memory card slot accommodates microSD cards with a size of up to 32 GB.



Here now, the TP-link M7650 is not yet available on the market. There is another model Netgear Aircard 810s which has similar specifications and it’s already available on the market. If you prefer TP-link M7650, 4G Mobile Broadband Mall (www.4gltemall.com) accept pre-order of this future-proof 4G mobile hotspot. Once we get this TP-link M7650, we would take test and show our report soon.

Netgear Aircard 810s Hotspot Overview

Netgear AC810: a complete hotspot

Aircard 810s is a 4G mobile hotspot that works with the SIM card from a mobile operator in micro-SIM format. Compatible with category 11 for the 4G LTE, it allows download speeds up to 600 Mbps. We also note the presence of a Dual Band mode in order to benefit from better speeds. It is also compatible with 4G LTE and 3G networks throughout Europe, Middle East, Africa and Asia, as well as with 3G networks around the world. This is what you must need if you are traveling.

The case of Netgear aircard 810s is really small, yet sturdy and can be stored easily in a bag or even in a pocket.



Accessories supplied with the AC810s

Obviously, we have a removable battery that allows you to get up to 11 hours of operation and 250 hours of standby time. A USB3 cable allows recharging to USB and a USB power adapter is provided.

A cable for the Jump Boost technology allows you to charge Smartphone if it has a micro USB jack, from the battery of the AC810.

Multiple Connections

Your devices can connect to Aircard 810s thanks to the very simple creation of an 802.11 ac Wi-Fi network. By default, it already has a network name and a password, all indicated under the battery but you can simply change these parameters via the embedded menu.

Automatic management of the SIM card

If you insert a SIM card that also includes calls, SMS and MMS and not just the data as in our tests, you will be able to see SMS directly on the AC 810 via the Messages menu. We have used two SIM cards from Vodafone and Orange. The PIN code of the SIM card must be entered so that the hotspot automatically retrieves the operator parameters.

Touch screen for the AC810 hotspot

The quality of the screen is correct but do not expect the retina. Here it makes settings simple and effective. It will be noted that this one is tactile and it can managed also on a smartphone in different menus. The return and home buttons are also tactile. This is a 2.4 inch color LCD.

This screen also allows you to view the connection quality and the connection type as well as the data consumed and the number of days remaining for this quota. It’s very useful.



We tested the hotspot with an iPhone , iPad and MacBook Pro connected at the same time and did not encounter any problems. Indeed, the AC810 is capable of accommodating up to 11 devices at the same time.

Autonomy of the AC810

On the autonomy side, 100% load, we can get duration up to 11 hours but in our first tests, soliciting the flow, the autonomy was not high. In the case of a more conventional use without a systematic flow test, this autonomy should indeed be approached.

Plus, a cable is provided, allowing you to charge your Smartphone if it does not have much autonomy. This is the Jump Boost technology. Thus, we will be able to transfer power to the smartphone. Unfortunately for the owners of iPhone and iPad, it is a micro USB and non lightning connectivity.

Features of the AC810 Hotspot

We note that the menu offers access to the operator settings and that it is possible to activate a 5 Ghz Wifi mode, making it possible to obtain better transfer rates, essential with 4G at high speed. Of course, your hardware must be compatible with this Wi-Fi standard in order to get the most out of it. It is actually Wi-Fi N.

Here are the full features:

Network Technology

  • 4G  LTE, category 11 with 3-band carrier aggregation
  • DC-HSPA+, HSPA +, HSPA
  • 4G LTE
  • 3G

Supported Network Bands

  • 4G LTE FDD 1/3/7/8/28  (700/900/1800/2100/2600 MHz)
  • 4G LTE TDD (available for some carriers)
  • 3G 850/900/1900/2100 MHz

Wireless

  • 802.11ac/b/g/n
  • Wifi Dual Band 2.4 or 5 GHz

Required configuration

  • Wifi compatible device 802.11ac/b/g/n 2.4 or 5 GHz
  • Windows XP (SP3, 32/64 bit Media Center Edition), or Mac OSX 7.0 or later (Windows Vista, 32, 64, 64, 64 and 64 bits)

Physical characteristics

  • Dimensions: 112 x 69 x 15.5 mm
  • Weight: 132 g
  • Type of SIM card: micro SIM (3FF)
  • Operating autonomy: up to 11 hours
  • Standby time: up to 260 hours
  • Display: 2.4 “touch screen
  • Two connectors for external LTE Antenna(Buy Netgear Aircard 810s Antenna)

Content

  • Mobile Hotspot AirCard 810 (AC810)
  • Removable lithium-ion battery (2,930 mAh)
  • Cable Jump Boost
  • Wall charger
  • USB cable with Micro USB connector
  • Quick Start Guide

We will soon propose a test in mobile use with measurements of flows carried out in several situations. If you want to know more about Netgear aircard 4G, welcome to check here: http://www.4gltemall.com/4g-wireless-router/netgear-4g-lte-router.html



Netgear AirCard 810s Review

Netgear is known as a leader in the world for mobile connections and has distinguished itself in this field producing various portable 3G/4G devices, which are highly appreciated by users. In the series of wireless aircards, Netgear presented aircard 781s, 782s, 785s, and 790s and the Sierra wireless’s aircard 760s, 762s an 763s. And Netgear doesn’t stop here. New models with upgraded technology become available as time goes.



We got the new modem Netgear AirCard 810S for a long time and we present our views today. It is a Wi-Fi router with the possibility to use with 3G and 4G by your SIM card (in the format mini). On the top, we find a single physical button to switch on and to awaken the display. Once turned on the front screen you will light up and from there you can manage almost all settings, thanks to a convenient touch panel or the two keys (always touch) present alongside.

What’s more, the presence of two connections for external antennas and a removable battery (the SIM card holder is located under it) are very useful for users. If the Netgear aircard 810s is working at some places with weak signal, it’s better to connect 4G LTE MIMO antenna with two TS-9 connectors to improve the signal and surfing performance. The removable battery can provide an option for users to use spare battery.

Signal reception on both 3G and 4G are excellent for long trips by train, and the signal was stable for a long time. We have many devices connected to our Netgear AC810S router using the password supplied, but it can be changed with ease. The display gives you lot of information simultaneously: the connection status, remaining battery power, the network name, password, data consumed since the last reset of the counters and days remaining to next renewal.

After enter in the web interface, we can see three columns: WiFi, Messages and Settings. The first allows us to change the Wi-Fi network settings, such as name, password, or even activate the network in 5 GHz(2.4 GHz as default ) or a network for guests. You can also check which devices are connected. And it also presents WPS and the ability to increase or decrease coverage.



The settings for the Aircard 810s portable router can also control the brightness and screen timeout, the network preference, APN, and airplane mode. What most surprised us, however, is the autonomy of this device. With 2-3 connected devices and an normal mobile use, we found a decrease of about 10% battery every hour spent, which is a pretty good result.

This modem Netgear Aircard 810s, is now available at www.4gltemall.com with unlocked version and various accessories such as external antennas. The price is a little bit high, but it is understandable considering that the aircard 810s as a top range of portable 4G modem. With good battery life, good stability performance, information-rich display and connectors for external antenna, Netgear aircard 810s is still one of the best portable 4G routers. Only the high price and lightweight plastic body are disappointing for potential users.



Netgear Aircard 810s VS Aircard 815s

Looking at the current available 4G LTE Mobile Hotspot, Netgear seems lead the LTE Advanced terminals. If you had known Huawei E5786 mobile WiFi, you may think this is the fastest 4G pocket router. However, if you know the two 4G mobile routers which we would introduce today, you may have a new view for the mobile terminals.

netgear-aircard-815s

Since LTE Cat3 and Cat4 are becoming the mainstream for carriers, LTE-advanced would of course be available in near future. Here we can see some carriers are stepping fast. The carrier AT&T in USA and Telstra in Australia had presented the LTE Advanced networks for commercial use. The aforementioned Huawei E5786 is a LTE cat6 mobile router, which is already available for many network providers. AT&T and Telstra already used the LTE Cat9 and Cat11 terminals, which mean the LTE Cat9 and Cat11 technologies are available for the two carriers.

netgear_aircard_810s_mobile_hotspot

AT&T introduced Netgear Aircard 815s and had a new name “AT&T Unite Explore” while Telstra introduced Netgear Aircard 810s and has a new name of “Telstra WiFi 4GX Advanced III”. The two 4G mobile hotspots very similar in the name but feature differently. Today, we will have what’s the difference between them.



Aircard 810s vs 815S Appearance

The Netgear Aircard 810s follows the design of the predecessor Aircard 790s, which is a same level mobile router to Huawei E5786 supporting LTE Cat6. The body of Aircard 810s is made of plastic but feels good. With a 2.4 inch LCD screen, user can read the connection status and setup the routers on the screen.

netgear-aircard-815s-appearance-features

The Netgear Aircard 815s also has a 2.4inch QVGA capacitive touchscreen like Aircard 810s. So the screen has same functions to Netgear AC810S for settings. There special feature of Aircard 815s which should mention is the rugged design that is dustproof, shock and water-resistant. This feature allows users to take the Aircard 815s not only for common outdoor activities, but also in severse weather, especially for the wilderness exploration. They both have two connectors for external antenna and socket type is TS-9. Between the two connectors, there is a USB 3.0 port.

netgear-aircard-810s-vs-ac815s-antenna-connector



Netgear AC810S VS AC815S Technical Specifications



Below the blank shows the details specifications of the two routers:

Model Netgear Aircard 810s AT&T Unite Explore 815S
Product type LTE Mobile Hotspot LTE Mobile Hotspot
Category LTE Cat.11 LTE Cat.9
Chipset Qualcomm Snapdragon X12 Qualcomm MDM9240
Data rates DL 600Mbps/UL 100Mbps DL 450Mbps/UL 100Mbps
Supported 4G LTE frequency bands B1, B3, B7, B8, B28 B1, B2, B3, B4, B5, B7, B12, B17, B29, B30
WLAN 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz 802.11a/b/g/n/ac, dual-band 2.4GHz & 5GHz
Max support users 15 users 15 users
MIMO 2 x 2 MIMO 2 x 2 MIMO
Connector for external antenna Two, TS-9 jacks Two, TS-9 jacks
Buy Antenna Aircard 810s External Antenna AT&T Unite Explore External Antenna
App management Netgear Aircard APP Netgear Aircard APP
SIM type Micro SIM Micro SIM
Battery Removable, 2930 mAh Removable, 4340 mAh
Dimensions 112 x 68.6 x 15.45mm 112 x 68.6 x 15.45mm
Ethernet Port No No
Datasheet download Netgear AC810S Datasheet AT&T Unite Explore 815s Datasheet
User Manual Telstra 4GX Advanced III Manual AT&T Unite Explore Manual
Other features 3 band CA 3 band CA
Firmware download Aircard 810s Firmware ATT Unite Explore Firmware
Drivers Aircard 810s driver ATT Unite Explore drivers
Reviews Netgear Aircard 810s review AT&T unite explore review
Price 249.00USD 349.00USD







Netgear Aircard 810s vs 815S Performance



Actually, we had not tested the two units at same network environment in practice. But we will do that respectively in near future and will provide full test report for the two mobile hotspots. We hope the report would be a good reference for the potential users who need the 4G mobile routers.

There is one function that we have to mention: The Aircard 815s and 810s can both work like a mobile power bank, which is called Battery Boost, they can charge other electronics such as smartphones and tablets. This function is practical and useful in most cases.

netgear-aircard-815s-battery-boost-charging

From the appearance and specifications, we can see the two mobile routers (Aircard 815s and 810s) are with the latest technology and dominate the wireless terminals. Netgear Aircard 810s supports higher level network technology and it should be the fastest 4G mobile router. Of course, the price is also not cheap for the Aircard 810s, so as Aircard 815s. But if you would like a budget mobile pocket 4G router, the Netgear Aircard 790s may be a good option for you.

Netgear Aircard 810 4G Mobile Hotspot Test

Netgear had been offering 4G mobile LTE hotspots in European countries years ago. The Netgear’s newest mobile wireless router AirCard 810 offers speeds up to 600 Mbit/s over LTE Advanced category 11. Thus, the AirCard 810 Hotspot is by far the world’s fastest LTE router. Today, we will have a test for this new mobile hotspot to see the latest feature in this model.

Telstra WI-FI 4GX Advanced III

The packaging of the Netgear AirCard 810 is not spectacular from the outside. On the small cardboard, there are the most important information such as a brief description of the device and the technical specifications, including supported LTE frequency bands and carrier aggregation band combinations. The package contents includes a modular power supply with EU and UK power plug and USB port as well as the 2,930 mAh strong battery, in addition to the hotspot itself. A suitable charging and data cable is of course also available in the box. There is also a small microUSB to USB cable, which allows you to use the Jump Boost technology, so other devices such as smartphones can charge using the hotspots. A special feature included is the printed manual. It explains the functions of the device in different languages.

Telstra WI-FI 4GX Advanced III Aircard 810s

The first impression from Netgear AirCard 810 Hotspot is quite good. The dimensions are 112 x 69 x 15.5 mm pocket-fit and the weight is approximately 132 grams quite low despite the strong battery. The battery cover is secure, but can easily open and feels very good due to the matt black rubber coating. The transparent plastic cover on the front contrast attracts fingerprints magically and reflects quite strong. Also the large color display on the front makes a very good impression, but, there are further more to be excited.



LTE Advanced Cat11

LTE Advanced with up to 600 Mbit/s in the downlink – the Netgear AirCard 810 router is the world’s first device that supports LTE such high speeds. Technically, it is LTE Cat11 3 band carrier aggregation (3CA), ie for the full 600 Mbit/s, three 20 MHz wide frequency ranges are combined. However, it is not enough for the Netgear AC810 supports the technology, each provider must have implemented Carrier Aggregation in its network and has sufficient radio spectrum.

Telstra WI-FI 4GX Advanced III Aircard 810s

In the test, the LTE modem made a very good figure by the way. Once you have inserted the MicroSIM card, you don’t need enter the PIN and then the router connects to the wireless network already. Credentials as APN and dial-in number need not be entered, but are automatically selected by the hotspot using the inserted SIM card. The transmission and reception were very good at LTE800 and LTE1800, UMTS was very satisfactory. LTE2600 has not been tested and Netgear has disabled 2G GSM network for unknown reasons.



One of the few criticisms of the AC810 relates to the number of supported LTE frequency bands. Although all important FDD-LTE and TDD-LTE frequency bands is supported for Europe, but some important North American frequency bands are missing, so that the Netgear AirCard 810 only conditionally suitable for travel in the Americas. Here one should better check before traveling, which frequency bands are to be used.



Telstra WI-FI 4GX Advanced III Aircard 810s

WLAN offload functionality

Netgear sets the WLAN radio module on current dual-band WiFi 802.11 ac, with up to 15 devices can be connected simultaneously. By default, the AirCard 810 sparking in the 2.4GHz band, the 5GHz band can be added when required. The wireless range can be adjusted in the settings in three stages, with a shorter range of battery life benefits. Overall, the wireless coverage was very good in the test – at least for a mobile router. The wireless network is encrypted out, password and WLAN names are printed on a label inside the battery compartment. On request, the password will appear in the display of the router. Optionally, a wireless guest network will be set up with a separate password, the maximum limit of 15 simultaneously permitted devices must also be observed here.



The Netgear AC810 has the so-called “Wi-Fi Offload” feature. This allows the router a wireless network for Internet access instead of using the wireless connection. This saves data volume and can be very useful in many situations. Via the web interface, Netgear AirCard 810 is allowed to use as an access before using the corresponding wireless networks, including password. The function can be found in the router’s wireless menu under “wireless displacement”, said at the unit no configuration is required, but only in principle to turn the function on and off.

The wireless connection can take bookings completely switched off and the device can be used as a USB-only modem. This is useful, for example, when you want to use a computer without a WLAN function always on. An operation without the battery, however, is not possible.

Telstra WI-FI 4GX Advanced III Aircard 810s





Large touchscreen for operation

Like its predecessor Netgear Aircard 790, the Netgear AirCard 810 router can be operated and configured in three different ways. The easiest and fastest way is certainly through the touchscreen display directly on the device, but not all functions are available here. Some particularly nested menus are available only via the web interface in a browser. The third way to use is an app for Android and iOS devices. Design and menu structure are managed in all three variants and self-explanatory.

The capacitive touch screen on the front reacted very quickly to inputs, write small buttons such as the keyboard for SMS can be operated accurately. Somewhat unreliable were the two capacitive keys for “Home” in the test and “back” of the display. Overall, the touch screen is definitely a nice added value in comparison to other mobile wireless hotspots.

Netgear Aircard 810s

The display turns off after a few seconds in order to save energy. This period can be set in the menu. If the display is off, you can read the connection status using a LED above the display according to operational mode in different colors. If desired, the LED is also switched off, which is for example useful if you want to use the hotspot in dark rooms.



Battery and Other

The Netgear AirCard 810 battery is 2,930 mAh strong and easily replaceable by the user. If necessary, you can just take a second or third battery or replace a defective battery. The manufacturer promises an operating time of about 11 hours, in the test with Internet radio streaming over LTE, I have reached this maturity even approximately. Via the so-called jump-boost function, the battery can charge other devices such as smart phones; the appropriate adapter cable is (as mentioned above) in. But you should not expect too much for recharging multiple times for other devices, if charging is need, we recommends the use of a proper “Power Bank”.





The Netgear AirCard 810 allows the option to connect an external LTE antenna to transmit and receive services and to improve the speed. These are two TS-9 connectors in this unit. With a matching Pigtail (adapter) you can connect virtually any standard antenna. Optionally, there Netgear has also a docking station (model DC112A), which remodels the hotspot with 4x Gigabit LAN, external WLAN antennas and integrated charging feature for perfect home router. Unfortunately, the availability of DC112A in my area is very limited, so I unfortunately could not get to test them together.

Netgear Aircard 810s



Conclusion: the best LTE Hotspot

Netgear offers the AirCard 810 LTE Hotspot undoubtedly the best current mobile LTE router in Europe. Not only the modem and the speed of the AirCard 810 are far ahead of its competitors, even the operating concept is outstanding. The very extensive features of the previous generation have been further extended, as is now also a wireless repeater on board.

There are still three points which user must note: GSM / 2G mobile is not supported, the manual frequency band selection is not possible and fundamentally supported LTE bands in comparison with current smartphones are still very poor. Overall, the test conclusion is however extremely positive and the Netgear AirCard 810 LTE Hotspot gets a very strong buy recommendation!
