ZTE MF286 4G LTE Cat6 Router

ZTE MF286 is a high-performance 4G portable wireless router designed to meet the needs of high-speed WLAN any time and any place. Based on LTE category 6, ZTE MF286 CPE could achieve download speed up to 300mbps and upload speed to 50mbps, which are the double speed of the predecessor of ZTE MF283 and bring a fluid and enjoyable internet experience even when the internet connection is shared between users. Up to 64 users could connected with ZTE MF286 CPE and surf simultaneously. With a built-in 3000 mAh battery, user can use ZTE MF286 in different scenarios where Wi-Fi is needed.

As the highest level among current 4G wireless router, ZTE MF286 LTE Router pairs the Qualcomm WTR3925 RF transceiver chipset based on the 28 nm process with the Qualcomm MDM9230 modem based on the 20 nm process. The new chipsets perform better and consume less power. In terms of a Wi-Fi network, it supports 802.11b/g/n/ac and 3 x 3 multiple-input multiple-output (MIMO) technology with three spatial streams for maximum performance. And the WiFi of ZTE MF286 operates on both 2.4GHz and 5GHz. The ZTE MF286 features are very similar to Huawei E5186 LTE Cat6 CPE. (Check the difference between ZTE MF286 and Huawei E5186)

ZTE MF286 LTE Cat6 CPE Technical Specifications:

* LTE Cat6 wireless router/CPE (portable)

* Chipset: Qualcomm WTR3925 (28nm process) and Qualcomm MDM9230 (20nm process)

* Support LTE FDD/LTE TDD/UMTS/GSM networks

* Support 4G LTE Band 1/3/7/8/20 (700/900/1800/2100/2600MHz)

* Support 3G Band 900/2100MHz and 2G GSM 850/900/1800/1900MHz

* FDD-LTE download speed to 300mbps and upload speed to 50mbps (Category 6)

* TDD-LTE download speed to 220+mbps and upload speed to 10+mbps

* 3G DC-HSPA+ download speed to 42mbps and upload speed to 11.2mbps

* WiFi standard: 802.11 b/g/n/ac; 2.4 GHz 3 x 3 MIMO, peak speed to 450Mbps; 5 GHz, 2 x 2 MIMO, peak speed to 867 Mbps

* Support up to 64 wireless devices to access the internet simultaneously

* Support VoLTE Call in high quality

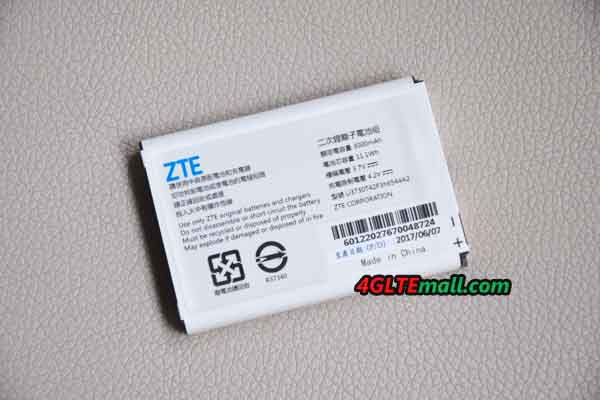

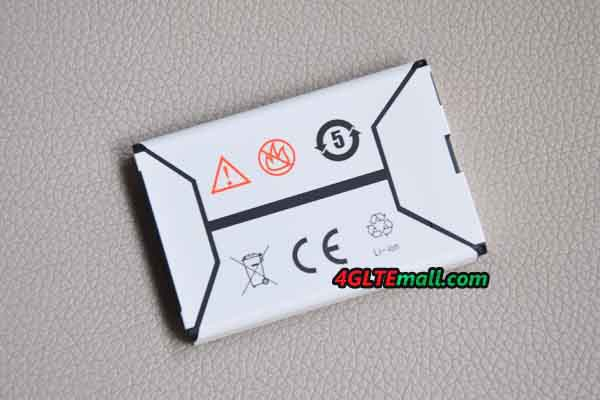

* Built-in Battery: 3000mAh, support a conference call for up to 4 hours or share a 4G network for up to 3 hours

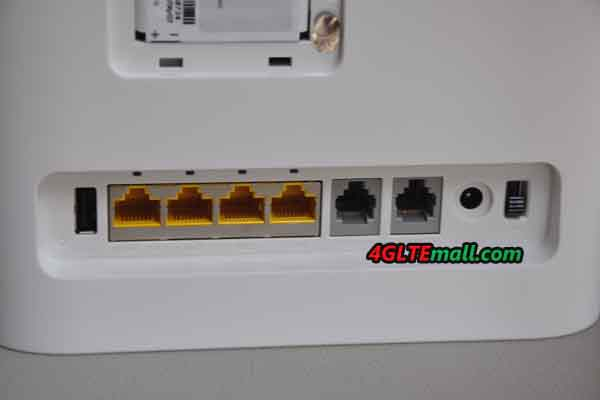

* Interfaces: 4 * RJ 45(GE 1 * WAN/LAN + 3 * LAN) + 2 * RJ11 + 1 * USB

* WiFi range: covers more than 500 square meters

* USB interface to share pictures, files or videos by a USB Disk or a small hard disk through same WiFi network

* Special features: CSFB/VoLTE via RJ11, HD Voice, Web UI, IPV6, WPS

* Dimension: 180 × 170 × 30 mm

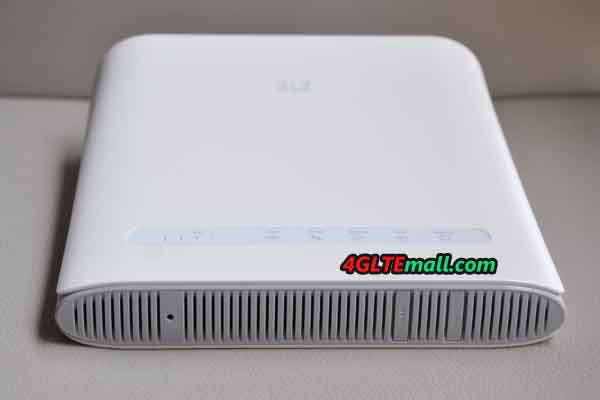

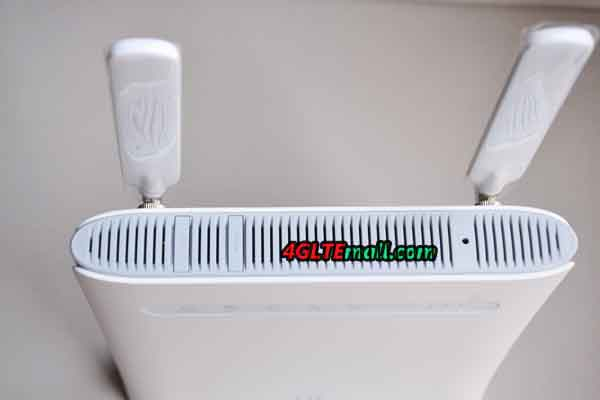

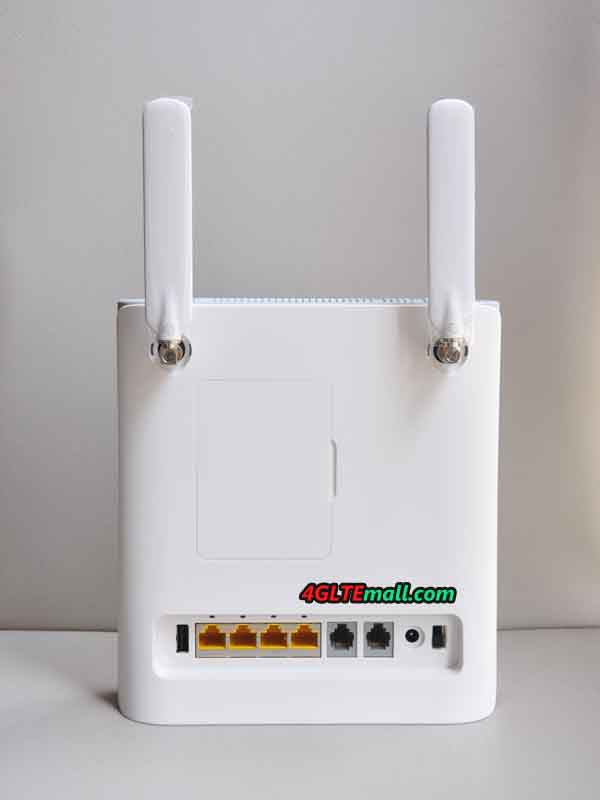

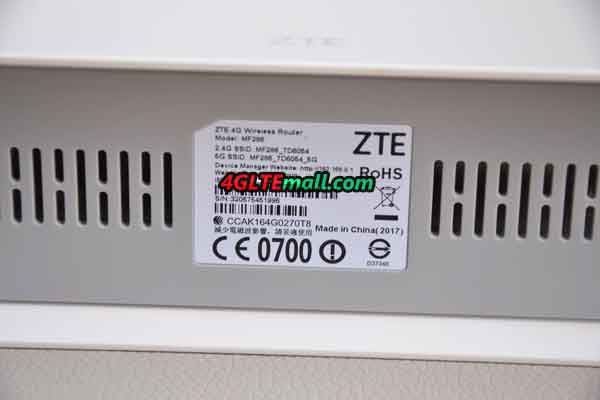

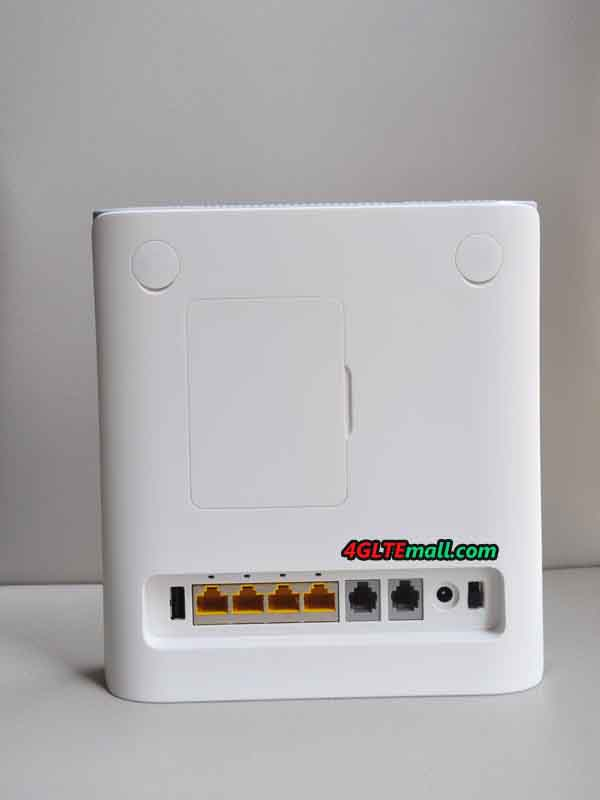

ZTE MF286 4G Router Images:

ZTE MF286 4G Indoor External Antenna:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

ZTE MF286 4G Outdoor External Antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html
