LTE Cat6 CPE ZTE MF286 VS Huawei E5186

With the evolution of the wireless network technology, more and more network providers are trying to upgrade their LTE network to LTE cat6 advanced, so more and more users demand LTE terminals to support the latest LTE advanced networks. Even though, very few user equipments can meet the demand.

huawei-e5186-front-and-side

We had introduced the world’s the fist LTE Category 6 router Huawei E5186, now we get the new LTE Cat6 gateway ZTE MF286. As ZTE’s first LTE Category 6 router, the MF286 has many functions, even the appearance/interfaces design similar to LTE CPE E5186, but it also many special features. Today, we will have a check the difference between the two 4G LTE Routers.

huawei-e5186-leds-vs-zte-mf286-indicators

Appearance

The ZTE MF286 and Huawei E5186 both looks like a common stationary wireless home router, front indicators to show wireless connection status (Power, Wifi, Phone, 3G/4G, Battery, Signal), side gridding design to heat radiating, and interfaces (4 x RJ45 ports for WAN/LAN, 2 x RJ11 ports for VoLTE and telephone, 1 x USB port for storage and power adapter plug). And there are two connectors for external antenna in the two routers but the connectors are covered by a small cap in case dust and water. And the WPS button and reset hole line together. Of course, there is one SIM card slot in the two routers.





Technical specifications

The two routers can work well with FDD & TDD LTE networks. As wireless gateways for LTE Cat6, they both could achieve download speed to 300mbps and upload speed to 50mbps on LTE FDD networks. And the download speed could reach 112Mbps on TD-LTE networks. If LTE network is not available, they can automatically switch to 3G UMTS/WCDMA network or 2G GSM networks. And the peak download speed on 3G network is 42Mbps.

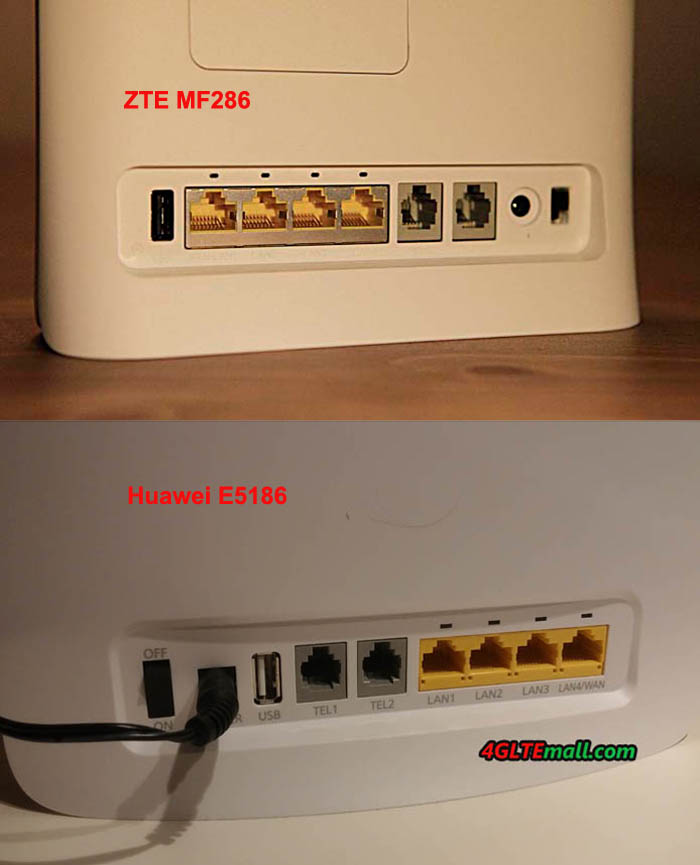

huawei-e5186-vs-zte-mf286-interfaces

ZTE MF286 and Huawei E5186 4G Router both could support the IEEE 802.11a/b/g/n/ac with dual bands (2.4GHz and 5GHz). Up to 64 devices could connect to the MF286 and E5186 LTE CPE respectively. And they both support VoLTE function, which is required and practical on the LTE Advanced network. The management of the two routers can be done via the web UI. Users can do personal settings for Ethernet, WLAN, VoIP, Security, Port Forwarding, MAC/LAN IP filter, DHCP, DMZ, SIP ALG, UPnP, NAT settings etc in web UI.



But we can also see the difference between the two similar 4G Router:

  1. The chipset of the Huawei E5186 is Huawei own Hisilicon Kirin while ZTE MF286 is based on Qualcomm chipset Qualcomm WTR3925 (28nm process) and Qualcomm MDM9230 (20nm process)
  2. There is no battery in Huawei E5186, it can only work when connect to power adapter. However, the ZTE MF286 has built-in battery with 3000mAh capacity, which can support a conference call for up to 4 hours.

ZTE MF286

The two points should be the key difference between the two routers. Below are the details comparisons for the two routers on features and specifications for reference:



Model ZTE MF286 Huawei E5186
Type Stationary & Portable Router Stationary router
Category LTE Cat6 LTE Cat6
Network technology TD-LTE/FDD-LTE/DC-HSPA+/HSPA+/ UMTS/EDGE/GPRS/GSM TD-LTE/FDD-LTE/DC-HSPA+/HSPA+/ UMTS/EDGE/GPRS/GSM
4G Speed * LTE-FDD DL 300Mbps/UL 50Mbps

* TD-FDD DL 220Mbps/UL 10Mbps

* LTE-FDD DL 300Mbps/UL 50Mbps

* TD-FDD DL 220Mbps/UL 10Mbps

3G Speed DC-HSPA+ DL up to 43.2Mbps DC-HSPA+ DL up to 43.2Mbps
WiFi IEEE802.11a/b/g/n/ac(2.4GHz and 5GHz) IEEE802.11a/b/g/n/ac(2.4GHz and 5GHz)
MIMO Yes Yes
Max users 64 64
Interfaces 2 x RJ11 + 4 x RJ45 + 1 x USB + 1 x SIM slot + 1 x Power plug + 2 x connectors for antennas 2 x RJ11 + 4 x RJ45 + 1 x USB + 1 x SIM slot + 1 x Power plug + 2 x connectors for antennas
Battery Yes, 3000mAh No
VoLTE Yes Yes
Other features CSFB, HD Voice, Web UI, IPV6, WPS Firewall, CS Voice, VoIP, VoLTE, TR069 Remote Management, HTTP Online Upgrade, QoS, USB Share, UPnP, IPV6, DLNA, Fax, Print, VPN
Dimensions  180 × 170 × 30 mm 190 mm × 200 mm × 32 mm
