Netgear Aircard 4G

Huawei E5770

Huawei E5186 4G Cat6 802.11ac LTE CPE

* LTE CAT6 Download Speed up to 300mbps


* LTE FDD DD800/900/1800/2100/2600MHz, TDD 2600MHz


* DC-PA+/HSPA+/UMTS 900/2100MHz


* Two External Antenna Connectors(SMA)

Regular Price: $399.00

Special Price $299.00

Huawei E5186 4G Cat6 802.11ac LTE CPE  | Huawei E5186 4G Router

More Views

Sale

* Required Fields

Regular Price: $399.00

Special Price $299.00

Details

Huawei E5186 is the latest 4G LTE WiFi router with LTE Category 6. With the Carrier Aggregation technology, the Huawei E5186 could support peak download speed to 300Mbps and upload speed to 50Mbps. Up to 64 wireless users could access internet through Huawei E5186.


Huawei E5186 4G LTE CPE Technical Specifications:

* LTE Category 6 Wireless Router/Gateway

* Technical Standards: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

* Download Speed up to 300mbps, upload speed to 50Mbps

* Huawei E5186s-22a: LTE Band 1/3/7/8/20/38  (FDD 800/900/1800/2100/2600MHz, TDD 2600MHz)

* Huawei E5186s-61a: LTE Band 3/7/28/40 (FDD 700/1800/2600MHz TDD 2300MHz)

* DC-PA+/HSPA+/UMTS 900/2100MHz

* GSM/GPRS/EDGE 850/900/1800/1900MHz

* LAN: IEEE 802.3/802.3u, IEEE 802.11a/b/g/n/ac

* WLAN(Indoor use only): 2.4GHz(2.400GHz-2.474GHz)/5GHz(5.150GHz-5.825GHz)

* Support up to 64 devices through WiFi

* Interface:
- One power port
- Two RJ11 ports for telephone connections
- Three Gigabit Ethernet RJ45 ports for LAN connections
- One Gigabit Ethernet RJ45 for both LAN and WAN connections
- One USB 2.0 host port
- One Micro subscriber identity modules(SIM)card port
- Two External Antenna ports

* Buttons:
- One power switch
- One WiFi button
- One WPS button
- One Reset button

* Power consumption: <20W

* Power supply: AC: 100-240V / DC: 12V/2A

* Firewall, CS Voice, VoIP, VoLTE, TR069 Remote Management

* HTTP Online Upgrade, QoS, USB Share, UPnP

* IPV6, DLNA, Fax, Print, VPN

* Temperature Working temperature: 0°C to +40°C

* Storage temperature: –20°C to +70°C

* Humidity: 5%–95% RH

* Dimensions(H x W x D): 190 mm × 200 mm × 32 mm

* Weight: About 518 g



Check more details about Huawei E5186:

1. Huawei E5186 Datasheet and Specifications

1. Huawei E5186 User Guide



See Huawei E5186 LTE Cat6 Router in Video:



Below are the Huawei E5186 Images for reference:

Huawei E5186 Front Side

Huawei E5186 Interfaces

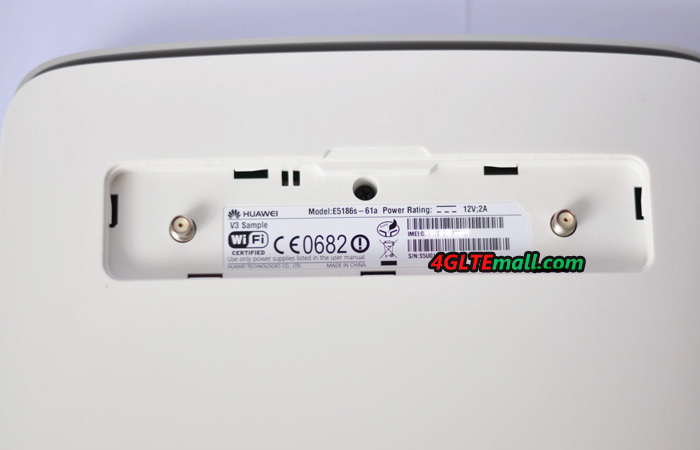

Huawei E5186 External Antenna connector

Huawei E5186 Ethernet and Telephone Port

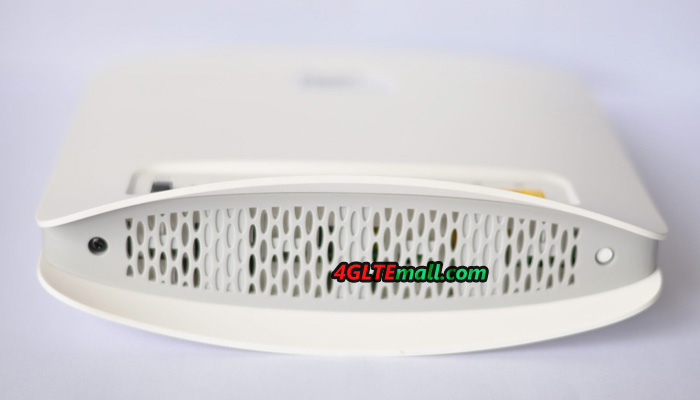

Huawei E5186 Bottom

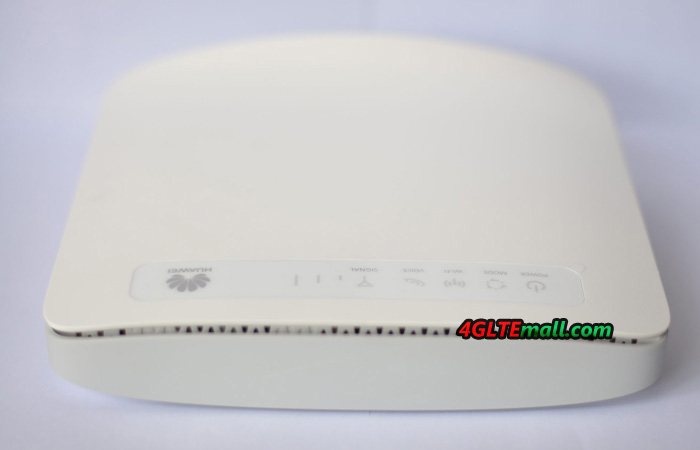

Huawei E5186 Top

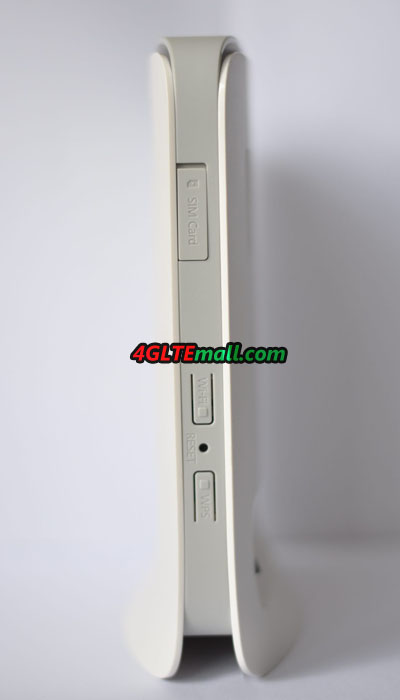

Huawei E5186 SIDE



Some users of Huawei E5186 may want the external antenna for Huawei E5186, we would recommend below the external antenna for Huawei E5186 4G Router. We had tested the antenna and it works well with Huawei E5186 LTE Router:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

 4G LTE Indoor Antenna (2 x SMA Connectors) for Huawei/ZTE 4G LTE Routers/Gateway/LTE CPE



If you prefer 4G outdoor antenna to get better signal, you could try below the antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html

4G LTE Outdoor Antenna (2 x SMA Connectors) for Huawei/ZTE 4G LTE Routers/Gateway/LTE CPE





Customer Reviews

This router rocks!Review by Jean
Quality
I got mine and it is awesome.......It rocks......quite simple to set up....stable connection...fantastic speed...i love it! (Posted on 4/23/2016)
Great routerReview by Mark
Quality
purchased for company test, works well, much better than other models. (Posted on 2/3/2016)
Very good routerReview by Craig
Quality
Very good product, I wish I had also bought the 4G antenna to get the best performance. The setup is very easy and mostly automatic. (Posted on 2/3/2016)
Five starsReview by Nam Jun
Quality
Good product, I bought this router to use in Saudi Arabia with the STC carrier with no contract 4G LTE Internet. Easy to setup without any limit. Good signal but not best, an external antenna may be necessary to enjoy the best speed. Anyhow, the router is much better than old B683 Router. (Posted on 10/26/2015)
Great routerReview by Andrey
Quality
I use the Huawei E5186 Router for my home network connection in France and I have to say I have been very impressed with the speed and connectivity of the unit. It did require some APN setting edits but all relatively easy. Pity I forgot to take an antenna together. (Posted on 6/20/2015)
WonderfulReview by Giorgio
Quality
I just got my router and it works flawlessly with my sim card. Mine is completely unlocked and worked out of the box. Getting triple the DL speeds and 7x UL speeds without antennas! Cutting my cable internet right away. (Posted on 3/22/2015)
Amazing Router!Review by CHRISTIAN SCHEERS
Quality
Although this router is expensive, it worth each cent you pay for it for its credibility in the fast Internet speed of 300 mbps. I'd tried some routers that their manufactures said their speed will be about 150 mbps or more, but once I tried them; they won't be given even the quarter of that speed. The other reason I gave this E5186 router five stars is for its capability to accept any Sim card of any cellular company around the world. (Posted on 1/3/2015)
Super routerReview by Pierre-Jean Muller
Quality
Super fantastic. Price a little higher but worth it. (Posted on 1/3/2015)
i love this routerReview by Stephane Collet
Quality
can't bear the 3G speed and change to this new 4G Router, it's really great, 4G connection speed is fantastic, no break off, easy to setup following the manual, i will buy one more for my SOHO office. Wonderful router, i love it! (Posted on 1/3/2015)
best routerReview by Karen Yeo
Quality
can't wait to get the router, and it doesn't make me disappointed by providing very fast speed and stable connection although my home is far from the cell. Top recommended wireless home router for LTE! (Posted on 12/20/2014)
