Huawei E5186 4G Cat6 802.11ac LTE CPE

Huawei E5186 is the latest 4G LTE WiFi router with LTE Category 6. With the Carrier Aggregation technology, the Huawei E5186 could support peak download speed to 300Mbps and upload speed to 50Mbps. Up to 64 wireless users could access internet through Huawei E5186.

Huawei E5186 4G LTE CPE Technical Specifications:

* LTE Category 6 Wireless Router/Gateway

* Technical Standards: LTE/DC-HSPA+/HSPA+/HSPA/UMTS/EDGE/GPRS/GSM

* Download Speed up to 300mbps, upload speed to 50Mbps

* Huawei E5186s-22a: LTE Band 1/3/7/8/20/38  (FDD 800/900/1800/2100/2600MHz, TDD 2600MHz)

* Huawei E5186s-61a: LTE Band 3/7/28/40 (FDD 700/1800/2600MHz TDD 2300MHz)

* DC-PA+/HSPA+/UMTS 900/2100MHz

* GSM/GPRS/EDGE 850/900/1800/1900MHz

* LAN: IEEE 802.3/802.3u, IEEE 802.11a/b/g/n/ac

* WLAN(Indoor use only): 2.4GHz(2.400GHz-2.474GHz)/5GHz(5.150GHz-5.825GHz)

* Support up to 64 devices through WiFi

* Interface:
- One power port
- Two RJ11 ports for telephone connections
- Three Gigabit Ethernet RJ45 ports for LAN connections
- One Gigabit Ethernet RJ45 for both LAN and WAN connections
- One USB 2.0 host port
- One Micro subscriber identity modules(SIM)card port
- Two External Antenna ports

* Buttons:
- One power switch
- One WiFi button
- One WPS button
- One Reset button

* Power consumption: <20W

* Power supply: AC: 100-240V / DC: 12V/2A

* Firewall, CS Voice, VoIP, TR069 Remote Management

* HTTP Online Upgrade, QoS, USB Share, UPnP

* IPV6, DLNA, Fax, Print, VPN

* Temperature Working temperature: 0°C to +40°C

* Storage temperature: –20°C to +70°C

* Humidity: 5%–95% RH

* Dimensions(H x W x D): 190 mm × 200 mm × 32 mm

* Weight: About 518 g

-----------------------------------------------------------------------------------------------------------------------------------------

Read more about Huawei E5186 4G LTE Router:

1. Huawei E5186 4G LTE Router Review

2. Huawei B525 VS Huawei E5186

3. ZTE MF286 VS Huawei E5186

3. How to setup Huawei E5186 4G router for network connection

4. Huawei E5186 4G LTE Router Test

5. Huawei E5186 VS Huawei B315 LTE CPE

6. Huawei E5186 VS Huawei B715 LTE-A Router

7. Huawei E5186s-22a 4G LTE Router for Home Use

8. Huawei B618 VS Huawei E5186

-----------------------------------------------------------------------------------------------------------------------------------------

See Huawei E5186 LTE Cat6 Router in Video:

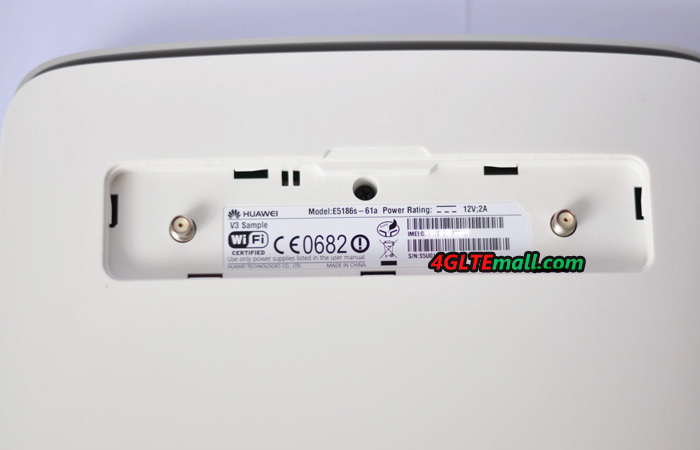

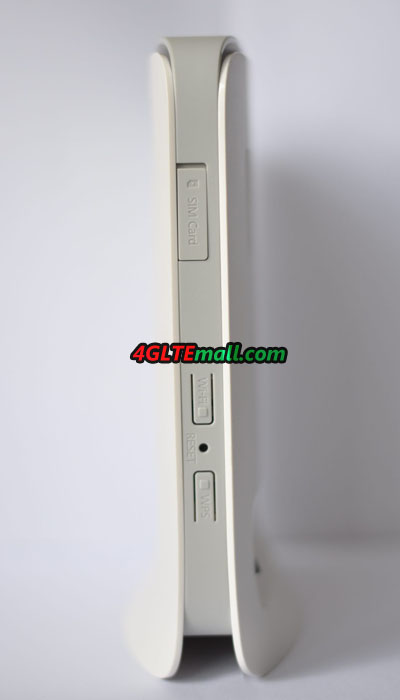

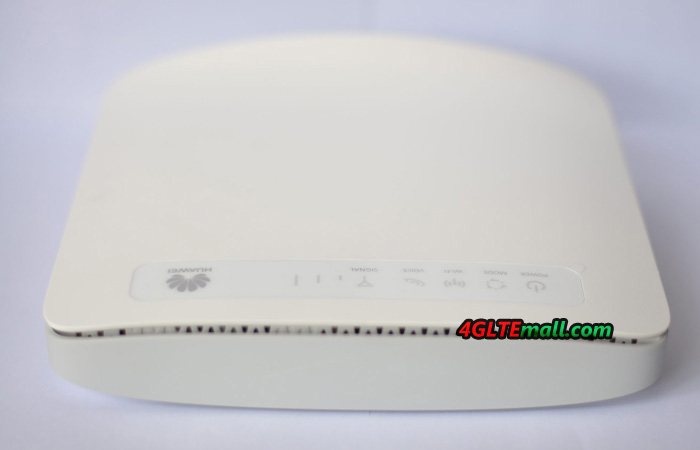

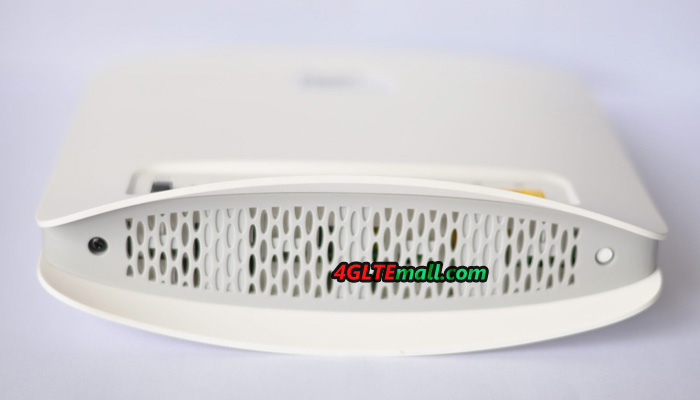

Below are the Huawei E5186 Images for reference:

Some users of Huawei E5186 may want the external antenna for Huawei E5186, we would recommend below the external antenna for Huawei E5186 4G Router. We had tested the antenna and it works well with Huawei E5186 LTE Router:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

If you prefer 4G outdoor antenna to get better signal, you could try below the antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html
