Huawei B5328-155 4x4 MIMO LTE Indoor CPE

Huawei B5328 is the world's first 4G LTE Indoor CPE with 4 x 4 MIMO (multiple-input multiple-output) technology. Based on the GCT’s GDM7243Q, the only LTE-A chip commercially available that offers 4x4 MIMO capability, enables Huawei B5328 LTE CPE with higher data rates and throughput while using limited bandwidth (“double speed” with the same limited bandwidth), which is a scarce commodity for network operators.

By integrating the receiver with four antennas and equipping the base station with four transmitters, mobile operators can maximize the use of their spectrum. Huawei B5328 is the successor to Huawei E5186 4G LTE Router. With GDM7243Q chipset, Huawei B5328 cpedelivers LTE Category 5/6/7 throughputs with double speeds enabled by 4X4 MIMO technology, and supports Voice over LTE (VoLTE) and eMBMS (LTE broadcast) as well as other advanced features.

Here now, Huawei B5328 is only available for few opeartors such as China Mobile, Vodafone Czech. And the know model number is Huawei B5328-155.

Huawei B5328-155 features and technical specifications:

* Chipset: GCT GDM7243Q

* WLAN: WiFi 802.11b/g/n, 4 x 4 MIMO, 2.4GHz

* One RJ45 Ethernet Port + One external power plug + One SIM card slot

* Peak download speed to 300Mbps with Carrier Aggregation

* Supports FDD-TDD LTE Cat5/6/7

* Cat5 LTE with 4x4 DL MIMO: 300Mbps DL, 75Mbps UL

* Cat6 LTE with 4x2 carrier aggregation: 300Mbps DL, 50Mbps UL

* Cat7 LTE with 4x4 MIMO or carrier aggregation with 300Mbps DL,100Mbps UL

* Supports 4x4 DL-MIMO (4 layers) and 2X2 UL-MIMO (2 layers)

* 3GPP Release 10/11-compliant

* Supports eMBMS, OTDOA, TM8/9/10

Note: we will update more specific data for the Huawei B5328 LTE CPE later.

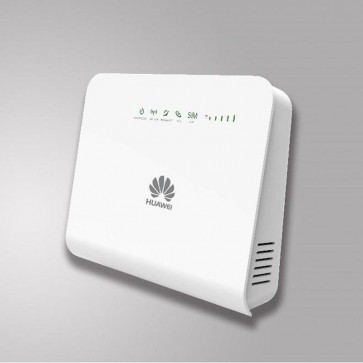

Huawei B5328-155 Images:
