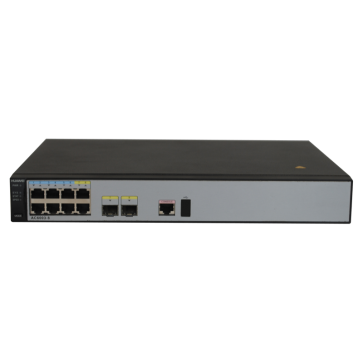

Huawei AC6003-8-8AP Wireless Access Controller

* Support 10M, 100M, 1000M Ethernet interface and auto-negotiation speed

* Support Access, Trunk, Hybrid access

* Support IPv4 IPv6 Forwarding

Supports MAC or SN of the AP whitelist

* Support AP domain and configuration management

* Support RF, WLAN management

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei AC6003-8-8AP Ports:

Huawei AC6003-8-8AP ports
1.) MODE button, the mode switch button
2.) 6 x 10/100/1000 BASE-T Ethernet electrical interfaces
3.) 2 x Combo Interface
4.) Console Commissioning Interface
5.) USB Interface

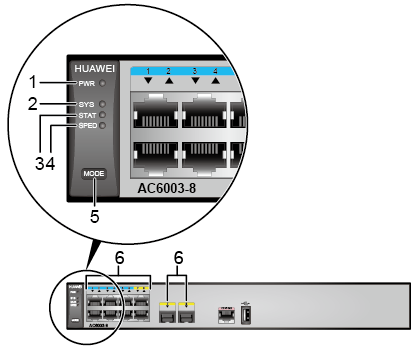

Huawei AC6003-8-8AP Indicators:

Huawei AC6003-8-8AP indicators
1.) Power Indicator: PWR
- Off: The device is not powered on.
- Green: ON- The power supply is normal.

2.) System operation status lights: SYS
- Off: The system is not running.
- Green (Flash: The system is starting the process. / Slow flash: The system normal operation.)

3.) STAT mode status: STAT
- Off: That there is no choice STAT mode.
- On: The service interface indicator is the default mode

4.) Speed mode status: SPED
- Off: Represents not selected Speed mode.
- Green: On-The service interface indicator indicates the interface rate, 45s automatically revert to the default mode (STAT).

5.) Mode switch button: MODE
- Press the SPED light turns green and the service interface indicators temporarily used to indicate the status of each interface rate. Press again to restore the default state, that STAT indicator turns green. When more than 45s did not press the button, the mode status lights automatically return to the default mode (STAT indicator turns green, SPED lamp is off).

6.) Service interface indicators
* GE Power: Interface numbered starting from 1, from bottom to top, from left to right.
* GE optical interface: Refer to the triangular arrow points.
- Meaning service interface indicator with which the pattern related to the following table.

* STAT mode
- Off: The interface is not connected or switched off.
- Green:
* On - The interface is connected.
* Blinking: interface to send or receive data.

* SPED mode
- Off: The interface is not connected or switched off.
- green:
* On- The interface runs at 10M/100M rate.
* Flashing: The interface runs 1000M rate.


Features and Technial Specifications:

Huawei AC6003-8-8AP Switching forwarding function:

* Ethernet

- Support for full-duplex, half-duplex, auto-negotiation
- Support 10M, 100M, 1000M Ethernet interface and auto-negotiation speed
- Support Jumbo packet support
- Support Link Aggregation
- Support Trunk load balancing within each link traffic
- Support interface isolation interface forwarding restriction
- Support Broadcast Suppression

- Support Access, Trunk, Hybrid access
- Support Default VLAN
- Support VLAN Pool
- Support mDNS gateway protocol, enabling AirPlay, AirPrint and other business sharing functions between users across VLAN

- Support MAC address auto-learning and aging
- Support for static, dynamic and blackhole MAC address entries
- Support source MAC address filtering
- Support Interface MAC Address Learning Limit

- Support for static and dynamic ARP
- VLAN support application ARP
- Support ARP entry aging

* LLDP: Support LLDP

- Supports STP
- Support RSTP
- Support MSTP
- Provide BPDU protection, Root protection, loop protection
- Provide local STP

* IPv4 Features
- Proxy ARP
- Support automatic detection
- Support Bonjour protocol

* Unicast routing features
- Static Routing
- RIP-1 / RIP-2
- Routing strategy, policy routing
- Check uRPF
- Support DHCP Server/Relay
- Support DHCP Snooping

* Multicast routing features
- IGMPv1 / v2 / v3
- Multicast routing policy

* IPv6 Features: ND protocol

* Unicast routing features
- Static Routing
- RIPng
- OSPFv3
- BGP4+
- IS-IS IPv6
- DHCPv6
- DHCPv6 Snooping

* Multicast routing features
- MLD Snooping

* Equipment Reliability: BFD

* Layer Multicast Features
- Support IGMP Snooping function
- Allow users to quickly leave
- Support multicast traffic control
- Support for inter-VLAN multicast replication

- Support peer discovery
- Support Link Monitoring
- Supports fault notification
- Support remote loopback

* Traffic Classification: Support Interface, 802.1p priority Traffic classification based on L2 protocol header, IP quintuple

* Traffic Actions:
- Support access to the post-categorization message flow control
- Support traffic policing based on traffic classification
- Support in accordance with the classification result re-mark packets
- Support the classification of packets into the specified dispatch queue
- Support traffic classification, traffic behavior of composite applications

* Queue scheduling
- Support PQ scheduling
- Support the DRR
- Support PQ + DRR scheduling
- Support WRR Scheduling
- Support PQ + WRR scheduling

* Congestion Avoidance
- Support SRED
- Support WRED

* Terminal service
- Support command line configuration
- Support English and Chinese tips and help information
- Support Console, Telnet terminal services
- Support Send function, exchange of information between the end-user

* File system
- File System Support
- Support directory and file management
- Support via FTP, TFTP upload and download files

* Commissioning and maintenance
- Support logs, alarms, and debugging information unified management
- Electronic tag
- Support user operation log
- Support detailed debugging information to help diagnose network faults
- Provides network diagnostic tools such as Traceroute, Ping commands
- Provides the interface mirroring, flowing mirroring

* Firmware upgrade
- Support machine software loading, loading online
- Support online upgrade BootROM
- Support Online patch

* system security
- Hierarchical command protection, unauthorized users can not invade equipment
- Support SSHv2.0
- RADIUS authentication and HWTACACS authentication
- ACL filtering
- DHCP packet filtering (insert Option82 option)
- Support prevention and control packet attacks
- Support prevention Source Address spoofing, LAND, SYN Flood (TCP SYN), Smurf, Ping Flood (ICMP Echo), Teardrop, Ping of Death attacks more
- Support IPSec
- Built-in application recognition, support for Layer 4-7 application identification, and can be identified for different applications (such as QQ, BT, micro-letters, etc.) to set the appropriate control stratagy

* Network management
- Support ICMP Ping and Traceroute function to achieve
- Supports standard network management protocols SNMPv1/v2/v3
- Supports common features of the standard MIB
- RMON support


AP Device Management

* AP access control devices
- Support MAC or SN of the AP whitelist feature set and query
- Support single and batch (MAC address segment or segments SN) mode to manually set the white list
- Support for semi-automatic on-line (manual confirmation) access
- Support automatic (no authentication) AP access

* AP domain management
- AP region support setting laying type:
- Discharge from spreading: AP deployment very independent, without any interference between AP, AP In this case a fairly with a domain, operating at maximum power, not tuning
- Common deployment: sparse distribution between the AP, each RF transmission power requirements of less than 50% of its maximum transmit power
- Densely laying: densely distributed between the AP, each RF transmission power is less than 25% of the maximum transmit power
- Supports the specified field is set to the default domain, configure the AP for automatic on-line

* AP configuration template management: AP configuration supports a specified template as the default template used to configure the AP automatically

* AP device type Properties Manager
- AP device type device management feature inherent properties, including: the number of interfaces on the AP, type, RF number, type, VAP maximum number supported, the maximum number of associated users, as well as RF gain (for some indoor place mounted AP)
- Built known type AP device type properties
- Users can expand their own characteristics AP device type

* Network topology management
- AP LLDP support for topology-aware
- Support Hotspot2.0


RF Management

* RF Template Manager
- Set RF mode and rates through a template
- Automatic or manual channel, power mode
- Management RF tuning detection interval
- Support RF settings 802.11b, 802.11bg, 802.11bgn, 802.11g, 802.11n, 802.11gn, 802.11a, 802.11an, 802.11ac mode
- Support manual binding for a single RF template

* Unified static configuration: Centralized configuration and management of the entire network of RF parameters: network planning through deployment, centralized configuration on the AC, RF parameters (working channel, transmit power, etc.) in batches distributed to AP

* Centralized dynamic management
- AP channel and power is automatically selected when the on-line
- Support for dynamic tuning: In the AP overlapping area, automatically adjust the power or signal channel conflict
- Local Tuning: Adjust the designated AP optimum operating channel and power
- Global Tuning: Adjust the specified domain for all AP optimum operating channel and power
- Transfer large power up blind neighbors when deleting AP or AP offline support: supports up blind function
- Automatic selection and tuning parameters based on centralized control of RF field

* Enhanced Business
- Multi-access mode combinations: a/b/g/n/ac independent deployment and composition of (an, bg, bgn, gn) deployment priority access 5G terminal: Enable 5G band wireless terminal priority
- 2.4G/5G band load balancing


WLAN Service Management

* Service Set (ESS) Management
- Can set: enable broadcast SSID, the maximum number of access users, the aging time based on ESS
- Support the AP story isolation on ESS
- Support VLAN-based mapping service on ESS
- Support associated security, QoS and other business template on ESS
- Support multicast control switch AP on ESS

* Based on the business management of VAP
- VAP supports batch creation and binding RF ESS
- Supported a variety of ways VAP: a single query, according to the ESS simple queries
- Support business offline configuration
- Create VAP by AP automatic on-line, based on business rules batch issued automatically

* Automatic Configuration Release Management
- Support automatic payment rule on "AP + type RF ID" defined service configuration
- Added support for automatic on-line AP default domain (default domain can be laid down in advance)
- Automatic domain rules issued in conjunction to achieve

* Multicast Service Management
- Support AP IGMP Snooping mode
- Support AP IGMP Proxy mode

* Load Balancing
- Support load balancing from a load balancing group
- Support two load balancing strategies:
* Based on the STA number of load balancing
* Based on traffic load balancing

* BYOD (Bring Your Own Device)
- Support MAC OUI identify the type of device
- Support HTTP User-Agent information identifying the type of device
- Support DHCP Option information for identifying the type of device
- Support RADIUS authentication/accounting packets carrying the device type, for decision-making



Physical parameters

* Dimensions (length × width × height): 320mm × 233.6mm × 43.6mm

* Maximum power consumption 25.6W

* Weight: 2.05kg

* Operating temperature: -5 ° C ~ + 50 ° C

* Relative humidity: 5% RH ~ 95% RH, non-condensing

* Altitude: -60m ~ 5000m

* AC input voltage
- Rated voltage: 100V AC ~ 240V AC, 50 / 60Hz
- Maximum voltage range: 90V AC ~ 264V AC, 47Hz ~ 63Hz
