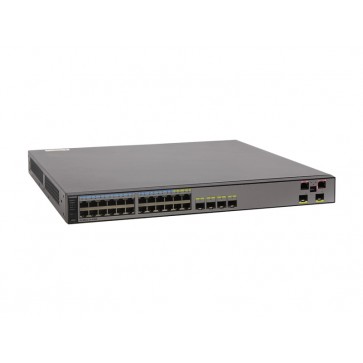

Huawei AC6605-26-PWR-32AP Access Controller

* Ports: 20 x GE + 4 x GE Combo + 2 x 10 GE

* 24-port PoE

* 10 Gbit/s Forwarding Capability

* Switching capacity: 128 Gbit/s

* WLAN: 802.11 a/b/g/n/ac

* Primary Port Speed: 10/100/1000Mbps

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei AC6605-26-PWR-32AP access controller integrates 1000 M Ethernet switch functionality for both wired and wireless access control. The AC6605-26-PWR-32AP offers users broad flexibility in configuring Access Points (APs). Used together with Huawei Premium series Huawei APs, Enhanced series Huawei APs and Standard Series Huawei APs, the AC6605-26-PWR-32AP delivers an enterprise grade networking solution for campus, industrial, and small- and medium-scale enterprise networks and extends hotspot coverage.

Huawei AC6605-26-PWR-32AP Access Controller features and specifications:

Ports & Interface:

* Primary Ports
- 20 x 10/100/1000BASE-T Ethernet electrical ports
- 4 x combo ports
- 1 x ETH management port
- 1 x Mini USB por
- 2 x Console port
- 2 x 10GE SFP+ uplink optical ports

* Primary Port Speed: 10/100/1000Mbps


Data Transmission

* MAC Address Table: 32K

* VLAN Support: Access modes of access, trunk, hybrid, and Default VLAN


AC6605-26-PWR-32AP Details:

* Security
- Different user levels for commands, preventing unauthorized users from accessing AC
- SSHv2.0
- RADIUS and HWTACACS authentication for login users
- ACL filtering
- DHCP packet filtering (with the Option 82 field)
- Defense against control packet attacks
- Defenses against attacks such as source address spoofing, Land, SYN flood (TCP SYN), Smurf, ping flood (ICMP echo), Teardrop, and Ping of Death attacks

* PoE: Yes

* QoS: Yes

* Power
- AC input voltage
- Rated voltage: 100 V AC to 240 V AC, 50/60 Hz
- Voltage range: 90 V AC to 264 V AC, 47 Hz to 63 Hz
- DC input voltage
- Rated voltage: -48 V DC to -60 V DC
- Voltage range: -36 V DC to -72 V DC
- Maximum power consumption: 85 W


* Box-shaped Access Controller

* managing a maximum of 512 APs

* 2*10GE optical ports, 24*GE ports, provide PoE+ power for 24 ports

* Support L2/L3 roaming, 1+1/N+1 backup, WDS management

* Processor Dominant frequency: 1 GHz
* Switching capacity: 128 Gbit/s
* Packet forwarding capacity: 10 Gbit/s
* DDR memory: 4 GB
* Flash memory: 256 MB

* Number of managed APs: 512/1024(The specification of 1024 APs will be implemented in 2014Q2)
* Number of access users
* Entire device: 10K
* Single AP: a maximum of 256 (depending on the AP model)

* Number of MAC address entries: 32K
* Number of VLANs: 4K
* Number of routing entries: 10K
* Number of ARP entries: 8K
* Number of multicast forwarding entries: 4K
* Number of DHCP IP address pools : 128 IP address pools, each of which contains a maximum of 16K IP addresses
* Number of local users: 1000
* Number of ACLs: 8K
* Number of ESSIDs: 4K

* User group management:
- 128 user groups
- Each user group can reference a maximum of eight ACLs.
- Each user group can associate with a maximum of 128 ACL rules.


Dimensions & Weight
- Dimensions: 17.4" x 16.54" x 1.75" (W x D x H)



* Temperature: -5 degree C to +50 degree C

* Humidity: 5% - 95%, Non-condensing
