Innofidei CS2030B 4G TD-LTE Cat4 Indoor CPE
* Standard: 3GPP TD- LTE Standard(Release-9)
* LTE Bands:TDD-B38/B39/B40 (2600/1900/2300MHz) FDD B7 (2600MHz)
* TD-SCDMA Bands:B34/ B39
* LTE Speed: Maximum 150Mbps(download), 50Mbps(upload)
* TD-SCDMA Speed: 2.8Mbps(Download)/384Kbps(upload)
* WiFi 802.11 a/b/g/n, 2x2 802.11n
* Support up to 32 users
Availability: In stock

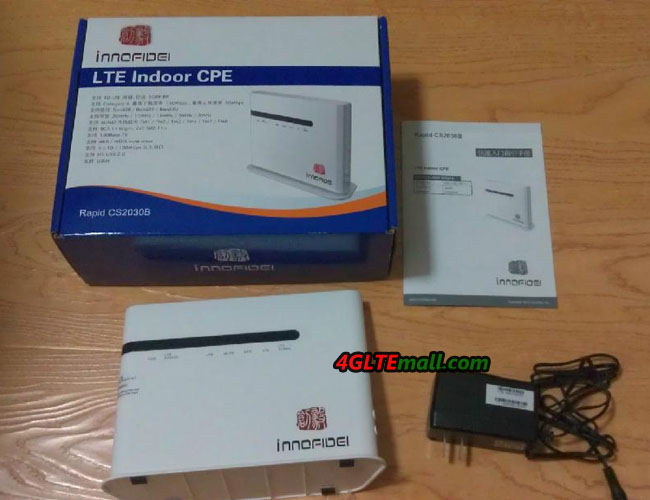

Innofidei CS2030B (also named CS2030) 4G TD-LTE Cat4 Indoor CPE comes from the Chinese telecommunication equipment supplier Innofidei and work for the operator China Mobile's 4G LTE TDD network. Innofidei CS2030B is a 4G LTE Category 4 CPE Router which supports maximum peak 150Mbps download speed and could support TDD Band 38, Band 39, Band 40 and FDD Band 7 simultaneously. It's already presented to the public in Hangzhou City of China.
Just like the brother model Innofidei CM2150 CPE, CS2030B is also a multi-mode 4G wireless router. They has almost same technical features. So CS2030B Innofidei could also support FDD network simultaneously.
As backup, Innofidei CS2030B 4G LTE CPE Could support support 3G TD-SCDMA network and GSM network in China. With a suitable power adaptor, CS2030B CPE could connect with PC or other electronic device through WiFi. It's one of the best 4G LTE CPE Router for home use.
Technical Specifications:
Network Bands:
* Standard: 3GPP TD- LTE Standard(Release-9)
* LTE Bands:TDD-B38/B39/B40 (2600/1900/2300MHz) FDD B7 (2600MHz)
* TD-SCDMA Bands:B34/ B39
* GSM Bands:B3 /B8
Features:
* LTE Speed: Maximum 150Mbps(download), 50Mbps(upload)
* TD-SCDMA Speed: 2.8Mbps(Download)/384Kbps(upload)
* Bandwidthe: 20MHz/15MHz/10MHz/5MHz/3MHz
* Support MIMO: TM1/TM2/TM3/TM4/TM7/TM8
* Support 100Base-TX
* Support MDI/MDIX auto cross
* 4 x Ethernet ports
* USB 2.0 interface
* WiFi 802.11 a/b/g/n, 2x2 802.11n
* Support up to 32 users
* Support USIM card
* Dimensions: 200x150x42mm
* Weight: 122g
* System supported: Windows XP/ Windows 7/ Vista/ Mac
