Huawei E5776 150Mbps Cat 4 LTE Mobile WiFi Hotspot

Huawei E5776 4G LTE Mobile WiFi Hotspot is the world's first LTE Cat4 LTE MiFi, which support data rates of 150Mbps downstream and 50Mbps upload speed. Up to 10 WiFi devices could access internet via WiFi. The 1.45 inch wide screen displays all relevant data such as battery level, volume consumed and network availability. There are many branch modelfor this Cat4 LTE Hotspot, such as HUAWEI E5776s-860, HUAWEI E5776s-32, HUAWEI E5776s-22, HUAWEI E5776s-501, HUAWEI E5776S-420, HUAWIE E5776s-922, HUAWEI E5776s-601 etc..

On UMTS network, it supports up to 84mbps download speed via DC-HSPA+. As the successor of HUAWEI E589 4G LTE Pocket WiFi, it's LTE-advanced model.

Below are the 4G, 3G and 2G Frequency band that the brach model could support:

HUAWEI E5776s-860:

* LTE-TDD 2300/2600MHz

* LTE-FDD 2600MHz

* TD-SCDMA/WCDMA

* GSM/GPRS/EDGE

Huawei E5776s-601

* 4G LTE-TDD 2300MHz

* 4G LTE-FDD 1800/2600MH

* 3G WCDMA 900/2100mhz

* 2G GSM/GPRS/EDGE 900/1800 MHz

Huawei E5776s-922

* 4G LTE-TDD 2300/2600MHz

* 4G LTE-FDD 1800/2600MHz

* 3G TD-SCDMA/WCDMA 900/2100mhz

HUAWEI E5776s-32:

* LTE FDD 800/900/1800/2100/2600MH

* UMTS 850/900/1900/2100MHz

* GSM 850/900/1800/1900MHz

HUAWEI E5776s-22:

* LTE-TDD 2600 MHz
* LTE-FDD 800/1800/2600 MHz
* UMTS 900/2100 MHz
* GSM 900/1800 MHz

HUAWEI E5776S-420:

* 4G LTE-TDD Band 42/43 3500/3600MHz
* 4G LTE-FDD band 3/band7 1800/2600mhz
* 3G TD-SCDMA/WCDMA 850/900/1900/2100 MHz

HUAWEI E5776 FDD Version Specifications:

* LTE FDD 2600/2100/1800/900/DD800MHz

* LTE TDD 2600/2300 MHz

* UMTS/HSPA+ 900/2100MHZ

* TD-SCDMA

* GSM/GPRS/EDGE 850/900/1800/1900 MHz

* Supports 10 simultaneous devices

* DL speed: Up to 150 Mbps

* UL speed: Up to 50 Mbps

* 1.45TFT screen

* 2x2 MIMO

* battery 3000mAh

* MicroSD card slot

* Quick start in 5 second

* OS: Windows XP/Vista/7,Linux, Mac OS

Speeds:

* LTE (DL) data service of up to 150 Mbit/s(FDD)

* LTE (UL) data service of up to 50 Mbit/s(FDD)

* LTE (DL) data service of up to 112 Mbit/s (TDD)

* LTE (UL) data service of up to 10 Mbit/s(TDD)

* DC-HSPA+ (DL) data service of up to 43.2 Mbit/s

* DC-HSPA+ (UL) data service of up to 5.76 Mbit/s

* HSPA+ (DL) data service of up to 21.6 Mbit/s

* HSPA+ (UL) data service of up to 5.76 Mbit/s

* HSDPA (DL) data service of up to 14.4 Mbit/s

* HSUPA (UL) data service of up to 5.76 Mbit/s

* UMTS data service of up to 384 kbit/s

* EDGE data service of up to 236.8 kbit/s

* GPRS data service of up to 85.6 kbit/s

HUAWEI E5776 Features Video:

HUAWEI E5776 4G hotspto Review Video:

HUAWEI E5776 VS HUAWEI E589 Compare Video:

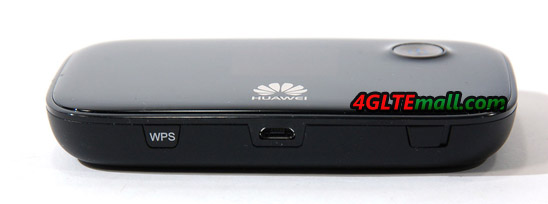

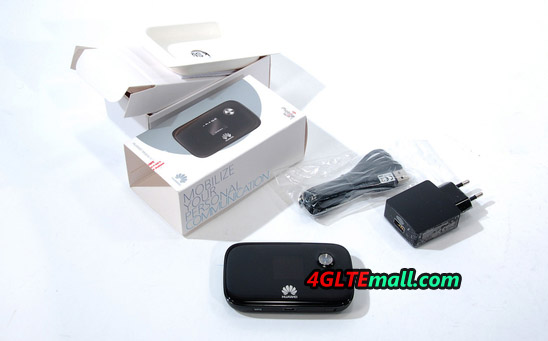

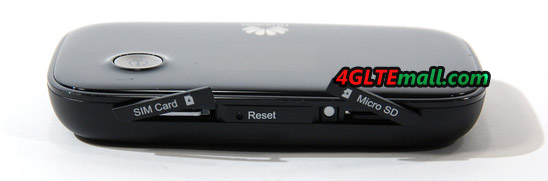

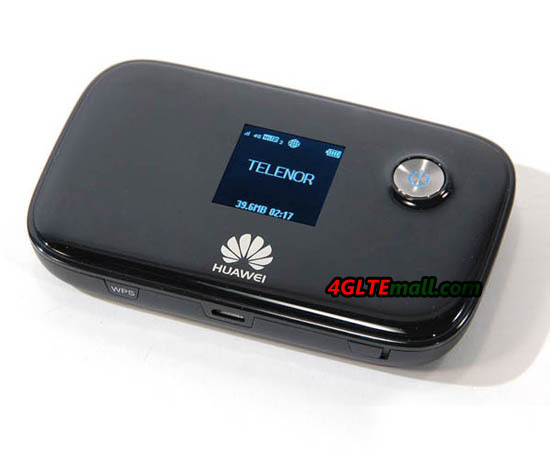

HUAWEI E5776 FDD Version Images:

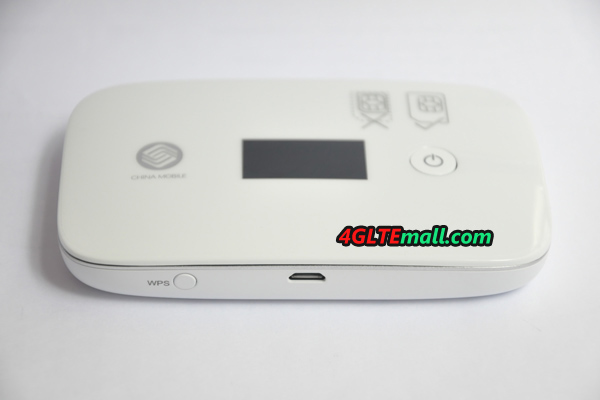

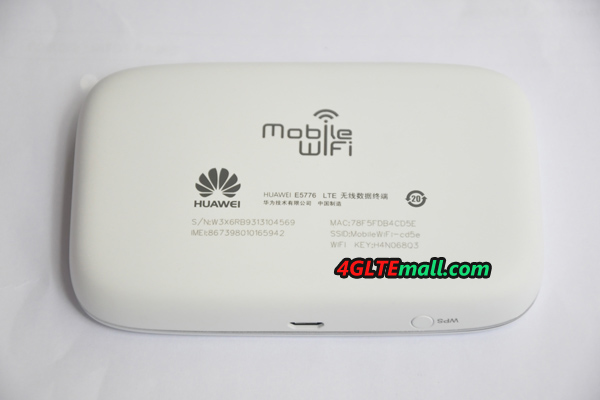

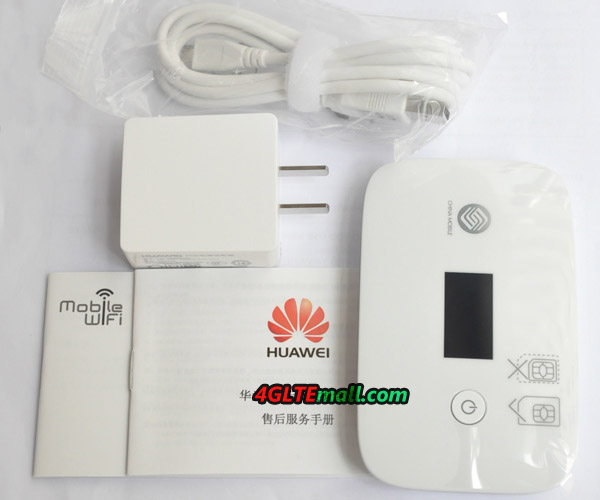

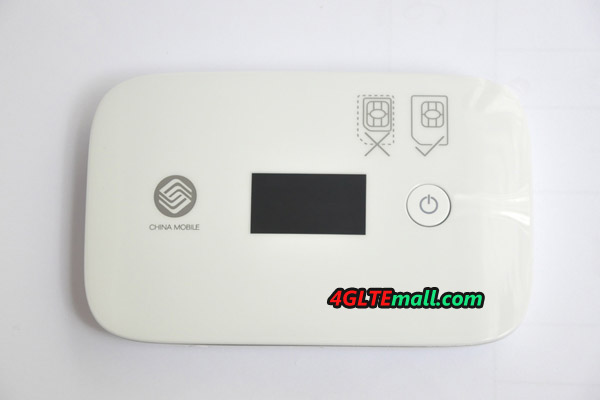

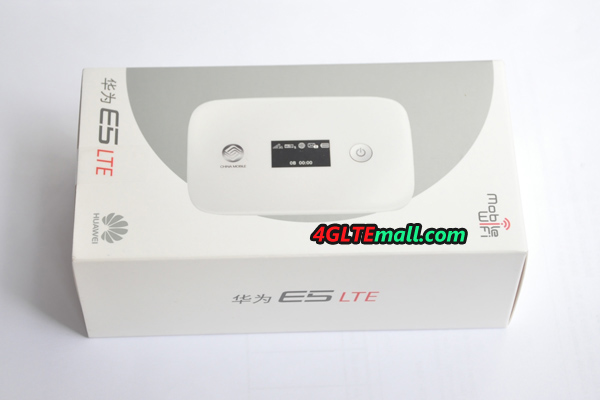

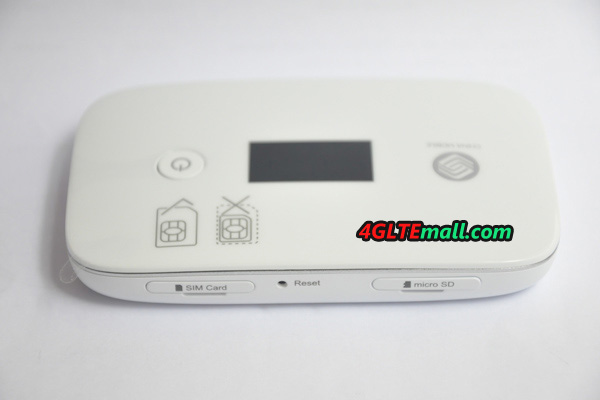

HUAWEI E5776 TDD Version Images:

Read more about HUAWEI E5776:

1. FAQs for HUAWEI E5776 4G LTE Cat4 Mobile WiFi Hotspot

2. Huawei E5776 4G 150Mbps LTE Mobile Hotspot

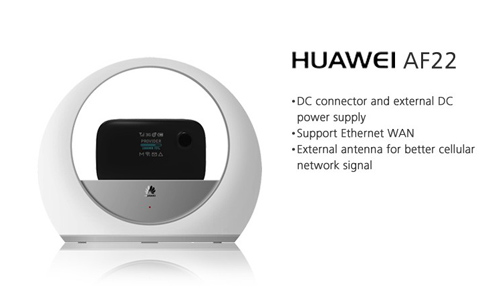

Sometimes, the customer may concern the stability of data transmission via wireless network, the designer also have a solution for this. The HUAWEI AF22 Cradle is to born to with HUAWEI E5776 to transfer the WiFi signal to ethernet cable so that the users could have better network experience.

Similarly, Sierra Wireless also has such LTE Mobile WiFi, such as Sierra 760s, 762s, 754s but they can't reach the peak speed as HUAWEI E5776. ZTE MF91 4G LTE pocket WiFi is also optional if the 4G LTE network is available in your country.
