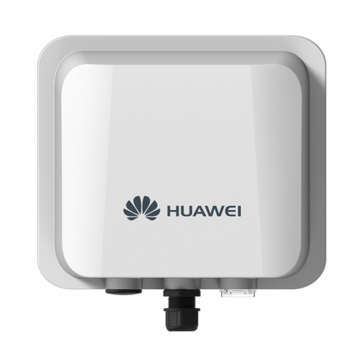

Huawei B2338-68 4G TD-LTE Outdoor CPE
* Huawei B2338-68 with IDU and ODU
* LTE DL Cat12, UL Cat13
* DL 420Mbps/ UL 30Mbps
* Support LTE TDD Band 38/40/41/42/43
* TDD DL 4x4 MIMO + 2CC CA
* WiFi 802.11ac/b/g/n, 2 x 2 MIMO
Availability: In stock
Huawei B2338-68 is a fastest 4G TD-LTE Outdoor CPE supporting LTE Category 13(UL) and Category 12(DL). The B2338-68 includes two parts: Ourdoor unit(ODU) and Indoor Unit(IDU). It supports LTE TDD Band 38/40/41/42/43 with 4 x 4 MIMO technology. Huawei B2338-68 has a brother model B2338-168 which could also supports FDD Band 1/3/7/20 besides the TD-LTE Bands. With HiSilicon Balong750, Huawei B2338-68 could achieve peak download speed to 420Mbps and upload speed to 30Mbps when TDD subframe configuration 2 and special subframe configuration 7 are used. There is one LAN data port in outdoor unit while one WAN port & two LAN ports are available in indoor unit.
Huawei B2338-68 TD-LTE CPE Technical Specifications:
* Form: Outdoor Unit + Indoor Unit
* Chip platform: HiSilicon Balong750
* Category: LTE DL Cat12, UL Cat13
* Peak Rate: DL 420Mbps, UL 30Mbps
* Protocol Version: 3GPP Release 10/11/12
* Operating Frequency: LTE TDD Band 38/40/41/42/43
* Carrier Aggregation:
- TDD DL 4x4 MIMO + 2CC CA
- TDD UL 2CC CA
- TDD DL 3CC CA
- FDD + TDD 3CC CA
* Modulation
- DL 64QAM, 16QAM, QPSK
- UL 64QAM, 16QAM, QPSK
* Channel Bandwidth: 5 MHz, 10 MHz, 15 MHz, 20 MHz
* TX Power: 23 dBm ± 2 dB
* Antenna
- LTE antenna: 1T4R
- 2300–2690 MHz: 8–9 dBi
- 3400–3800 MHz: 10–11 dBi
* MIMO: DL 2x2/4x4 MIMO
* LTE Transmission Mode LTE TDD:
- TM2, 3, 4, 7, 8, 9
- DL 4*4 MIMO @ TM3/4/9
* OS
- Windows 2000 SP4/XP SP2/Vista/Win7/Win8/Win10
- Mac later than OS X 10.4
- Linux
* Interface
- Outdoor unit: One LAN Data
- Indoor unit: One WAN Data, Two LAN Data, Wi-Fi AP, Two Voice, One USB
* IP Networking: L2/L3 VPN/Multi-APN/IPv4/IPv6/IPv6/v4 dual stack
* Voice/VoIP: SIP with G.729a/b, G.711a-law, G.711u-law Code
* Terminal Management: TR069 or SNMPv3
* Wi-Fi: 2x2 MIMO 802.11ac/b/g/n, 2.4 GHz and 5 GHz Wi-Fi
* Wi-Fi Encryption: 64-/128-bit WEP, WPA, WPA2
* Protection Class
- IP65 for the outdoor unit
- IP2X for the indoor unit
* Dimensions
- Outdoor unit: 255 mm * 251.5 mm * 102 mm
- Indoor unit: 173 mm * 128.01 mm * 60 mm
* Weight
- Outdoor unit: < 1.5 kg
- Indoor unit: < 285 g
