Huawei B2268 B2268s B2268H 4G TD-LTE Outdoor CPE

Huawei B2268S/B2268H is a 4G TD-LTE outdoor CPE which works for TD-LTE Band 38/40/42/43. It's a LTE Category 4 CPE and could achieve peak download speed up to 150mbps and upload speed to 50mbps. Huawei B2268 CPE includes an outdoor unit (ODU) and an indoor unit (IDU). With Huawei Hisilicon Balong 720 chipset, Huawei B2268 could support up to 32 wireless devices simultaneously with two SMA connectors.

Huawei B2268S and B2268H Outdoor CPE Specifications:

* Type: LTE Outdoor CPE

* LTE Category: Cat.4

* Chipset/Platform: Hisilicon Balong 710

* Speed: DL 150Mbps/UL 50Mbps

* 4G Frequency bands: TD-LTE@B42(3500MHz)/B43(3600MHz)/B38(2600MHz)/B40(2300MHz)

* Bandwidth: 20MHz/10MHz

* MIMO: TM1/2/3/7

* External Antenna:

* Supports up to 32 devices

* SIM Slot: 1 x Standard Size SIM slot

* Wi-Fi: 802.11b/g/n; Encryption WEP, WPA and WPA2

* Tx Power: 23+/- 2 dBm

* 2 x 2 MIMO

* LAN: 2 x Auto-sensing Ethernet RJ45 interface

* Telephone: 1 x Phone jack RJ11 interface

* USB: 1 x USB 2.0 host port

* Main Functionality: Enhanced VoIP, L2/L3 VPN(L2TPv2, GRE), TR069; SNMP, 802.11 b/g/n, Dual APN

* Web Management Page: http://192.168.15.1

* IP Networking: Routing, DNS, Dynamic DNS, DHCP server, DHCP relay a NAT, IPv6

* Dimensions:

- Outdoor Unit: 282 mm x 254 mm x 48 mm
- Indoor Unit: 188 mm x 131 mm x 41 mm

* Weight:
- Outdoor Unit: <1500 g
- Indoor Unit: <310 g

* Other Features

- Firewall, Enhanced VoIP
- TR069 remote management, HTTP online upgrade
- QoS, USB share
- UPnP, IPv6, DLNA
- VPS, VLAN(option function)
- L2/L3 VPN(L2TPv2, GRE), SNMP
- Dual APN (User Defined / Auto APN)

* What's included in the package:

- HUAWEI B2268 ODU
- HUAWEI B2268 IDU

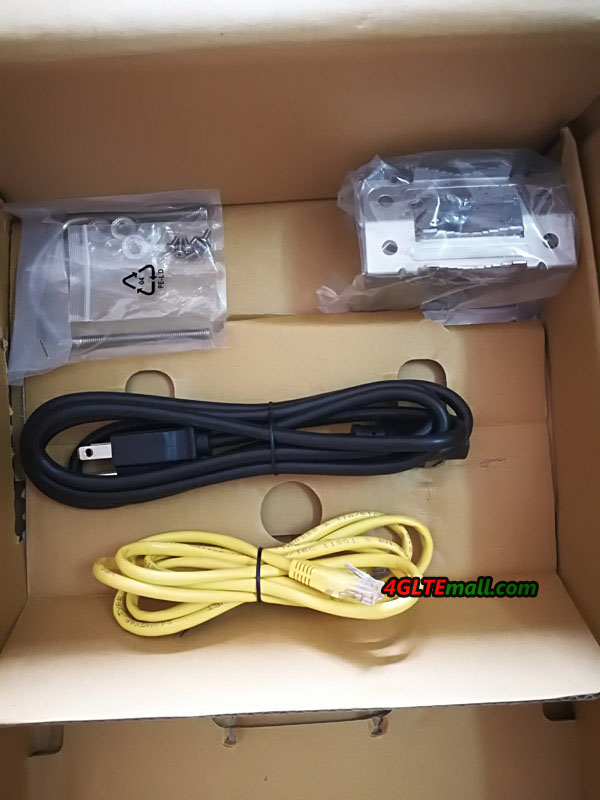

- Surge Protector with Grounding Kit
- Wall/Pole Metal Brackets and Mounting Kit
- LAN Cable

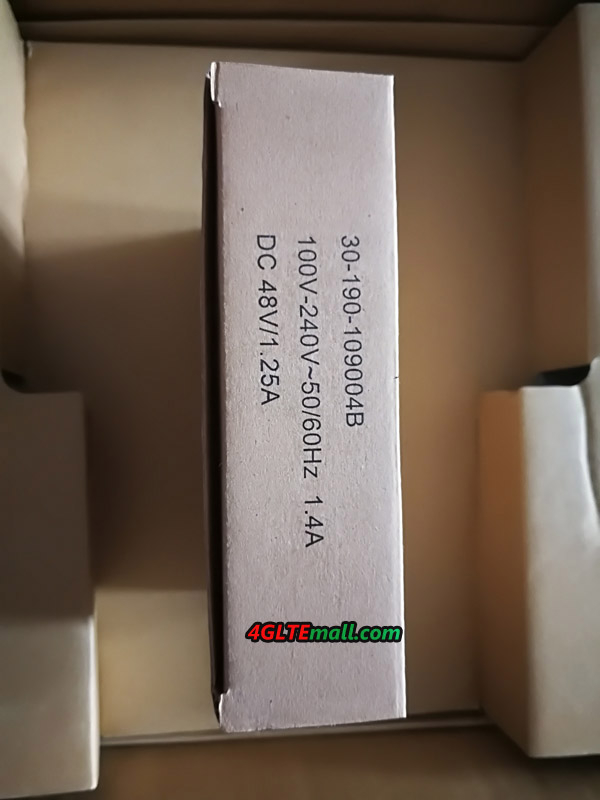

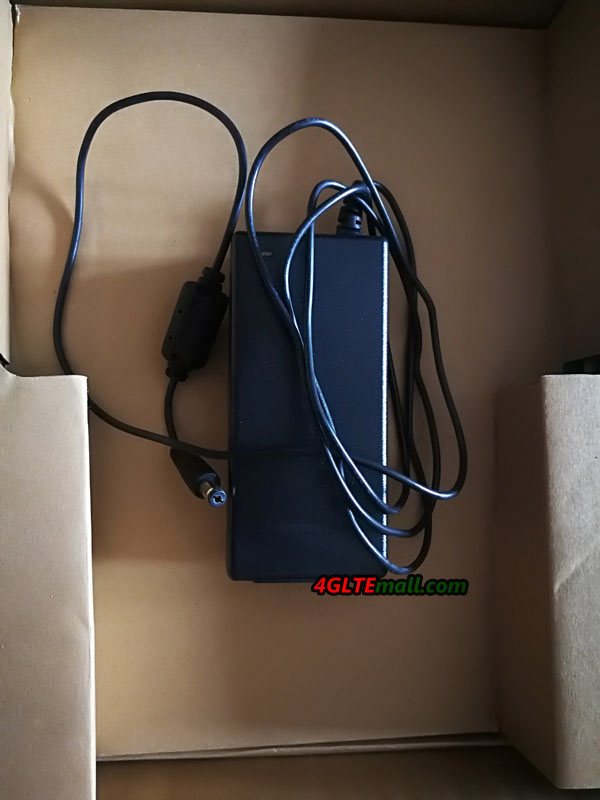

- 100-240V Power Adaptor EU 2-pin or UK 3-pin plug
- Quick Start & Safety Information

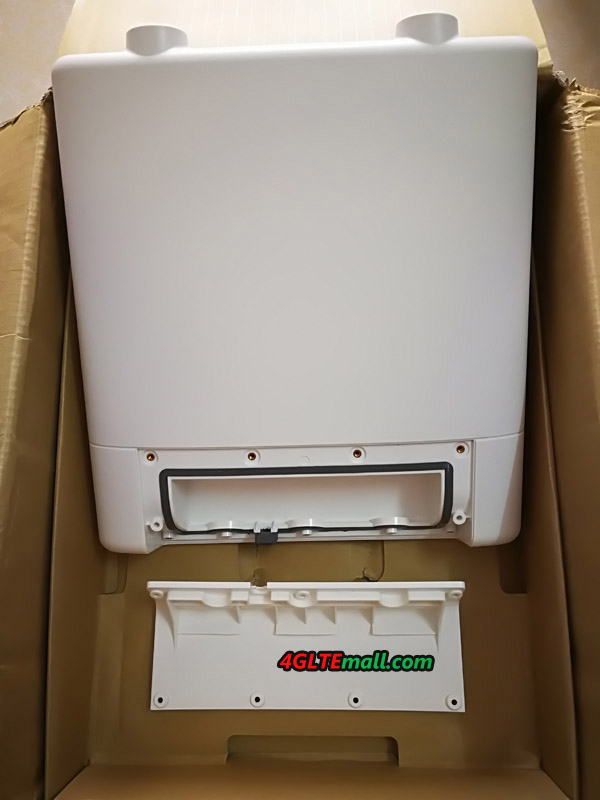

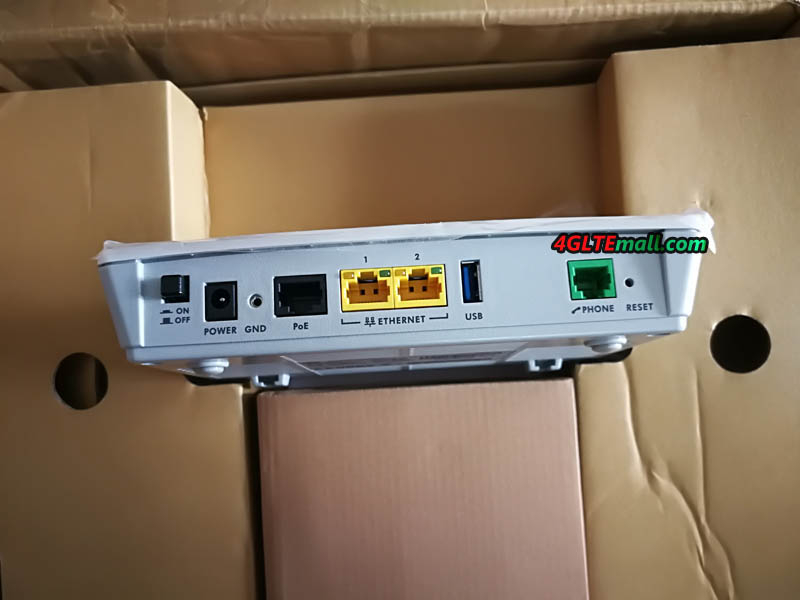

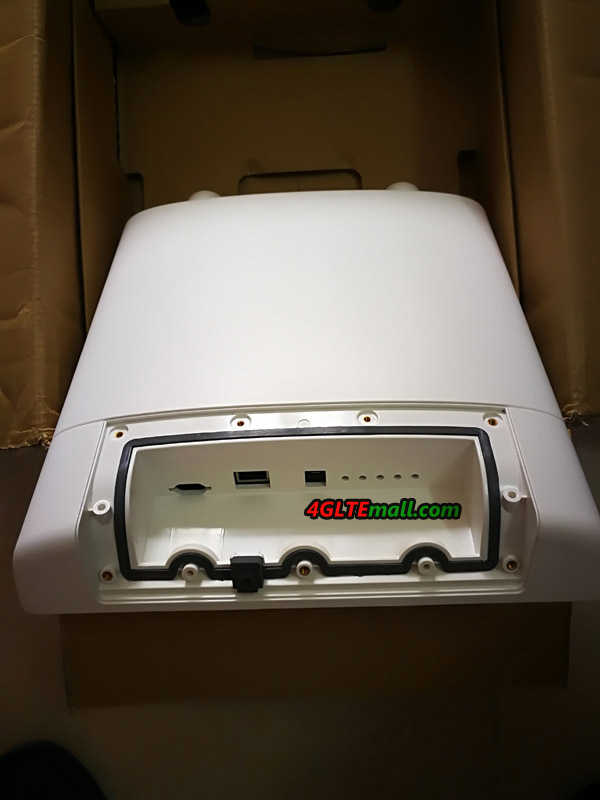

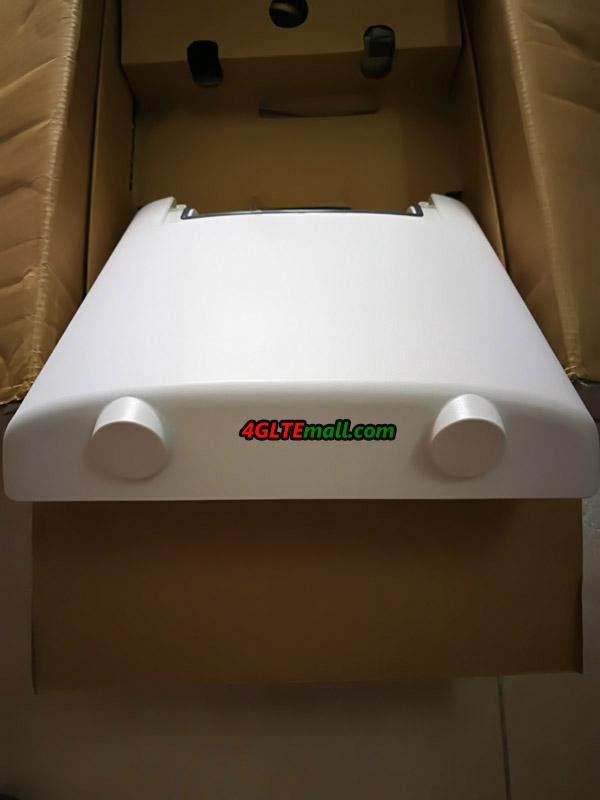

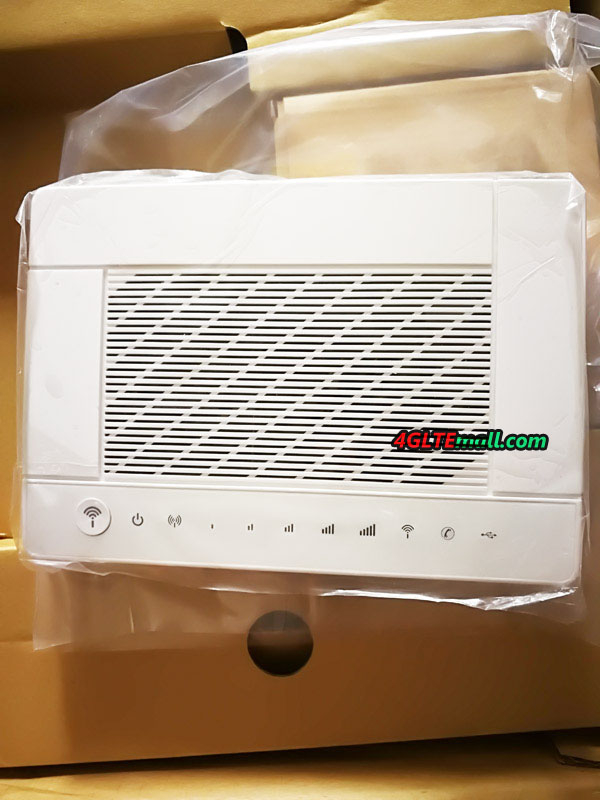

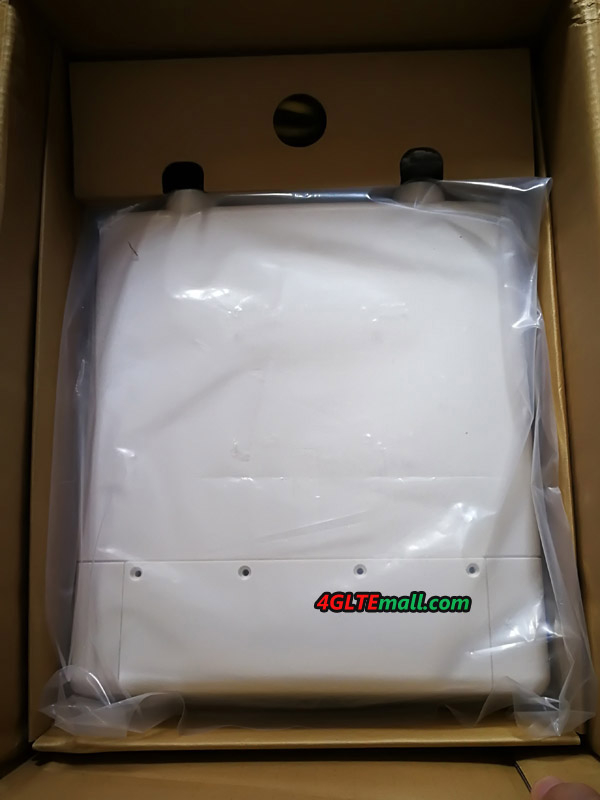

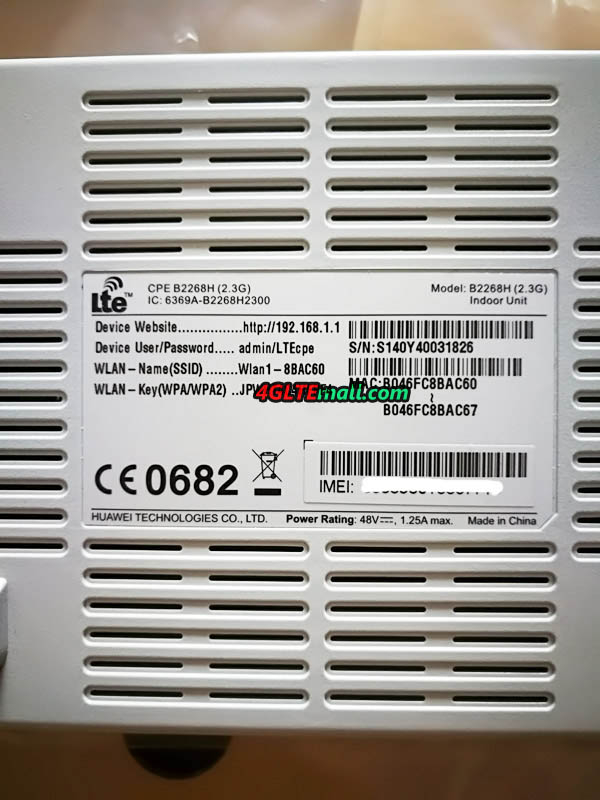

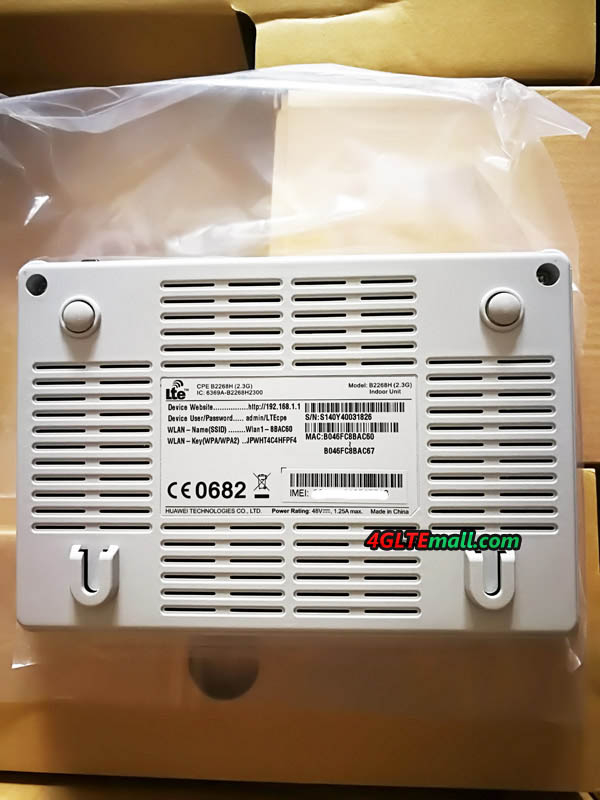

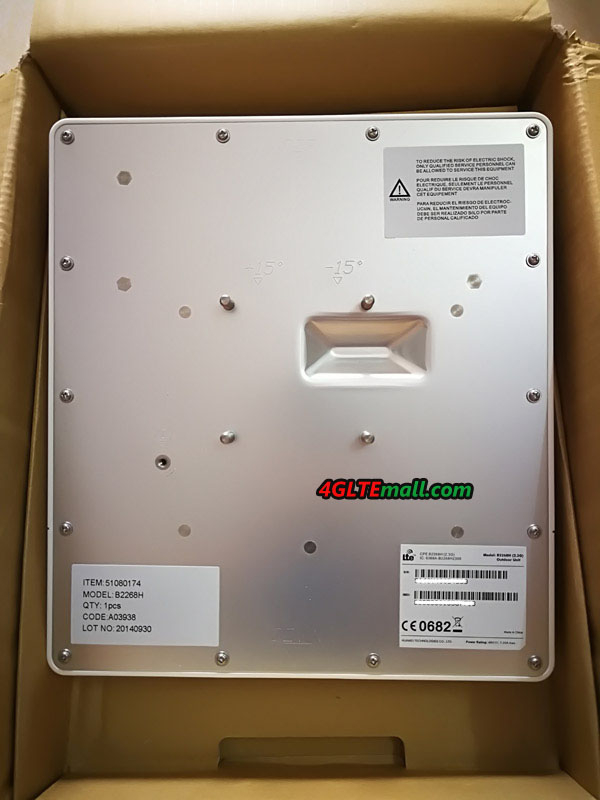

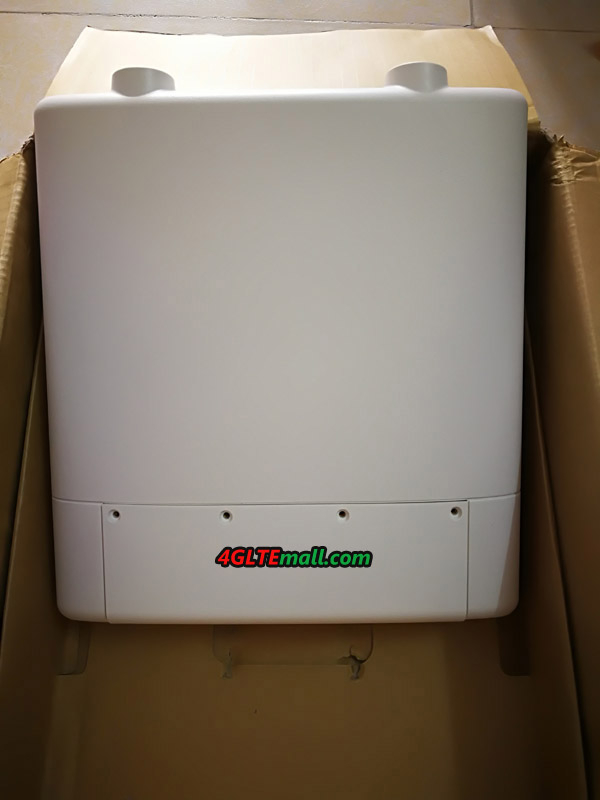

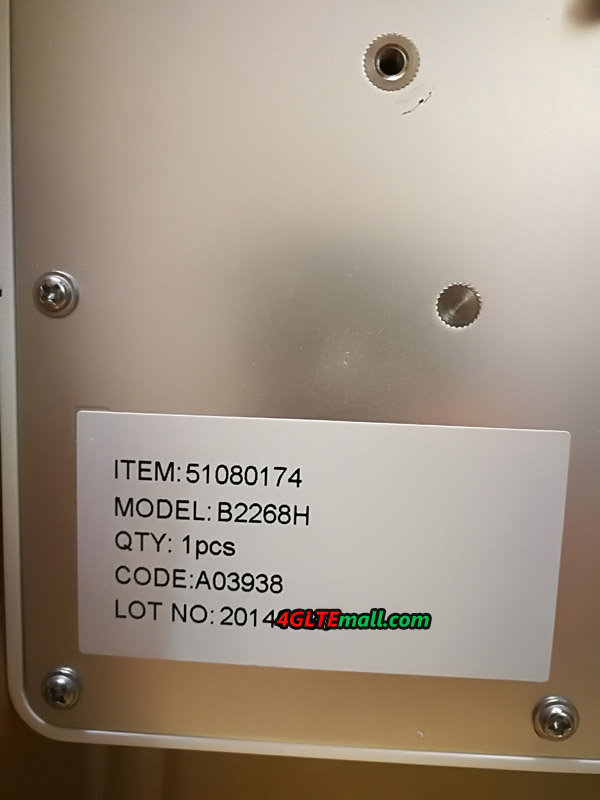

Huawei B2268H LTE CPE ODU & IDU & Accessories Detail images:
