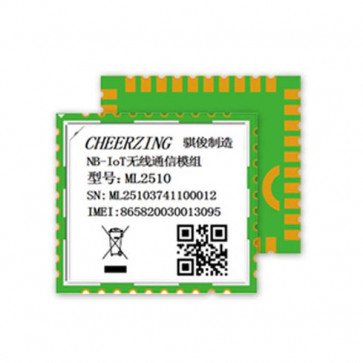

Cheerzing ML2510 LTE NB-IoT Module

Cheerzing ML2510 is a new ultra-small LTE Cat NB-IoT module in LCC form factor and has been designed to meet various demands of customer's needs for M2M applications. Smart metering, smart parking, smart manhole cover, smart lighting and asset management are perfect examples of applications where this module could be used.

Cheerzing ML2510 Specifications and features:

* Category: LTE Cat NB-IoT

* Chipset: RDA8908

* Package & Pin: 40pin LCC

* Frequency Bands: Band5 / Band8

* LTE NB1 Rate: 26Kbps（DL）／60Kbps（UL）

* Temperature Range: -25°C ~ 75°C

* Extended Temperature Range: -40°C ~ 85°C

* Network Protocol: UDP/TCP/CoAP/LWM2M/MQTT

* Interfaces:
- SIM: 3.0V
- UART ×2
- ADC ×1, 10 bit
- SPI: Support
- Antenna: Main

* Firmware Upgrade: Via UART / FOTA

* Supply Voltage Range: 3.1V~4.2V(typ.3.6V)

* Power Consumption: 5uA@PSM

* Size: 16.0mm × 18.0mm × 2.5mm

* Application Fields: Smart City，Smart City Council，Public Asset Tracking, Smart Lighting，Smart Manhole Cover
