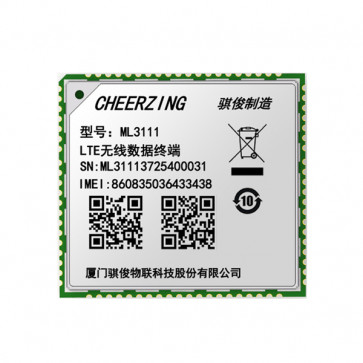

Cheerzing ML3111 LTE Cat4 LCC+LGA Embedded Module

* LCC + LGA package

* LTE Cat.4 Max 150Mbps(DL)Max 50Mbps(UL)

* Embedded various network protocols

* 8-wires UART

* Enhanced AT command

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Cheerzing ML3111 is a multi-mode embedded module with support of LTE-FDD & TDD networks in a LCC package. With 3GPP Rel.11 and LTE Cat4, which provides data transfer up to 150kbps for downlink and 50kbps for uplink. Cheerzing ML3111 module is the perfect choice for areas that do not yet have LTE coverage where backwards compatibility with 3G and 2G newwork is desired.

Cheerzing ML3111 module is able to utilize concurrent reception up to five GNSSS systems(GPS/GLONASS/BeiDou/Galileo/QZSS). It greatly improves accurate and reliable positioning information while simplifying the product design.

With abundant network protocols, Cheerzing ML3111 integrates insustry-standard interfaces and suports extended operating temperature which can be widely used in telematics, security monitoring, industrial router, CPE, data cards, tablet etc.

Cheerzing ML3111 Specifications and features:

* 4G LTE Cat4 module

* Package & Pin: 144pin LCC+LGA

* Support frequency bands:
- FDD LTE:B1/B3/B8
- TDD LTE:B38/B39/B40/B41
- TD-SCDMA:B34/39
- CDMA 2000 1X/EVDO:BC0
- GSM:900/1800

* LTE Cat.4 Max 150Mbps(DL)Max 50Mbps(UL)

* Embedded various network protocols

* Temperature Range: -35℃~75℃

* Extended Temperature Range: -40°C~-35°C and +75°C~ +85°C

* Storage Tempeture Range: -40°C ~ +85°C

* AT Commands
- Standard At command (3GPP TS 07.05、3GPP TS 07.07)
- CHEERZING AT command extension: Device control command, Protocol transmission command

* Data Transimission
- LTE Rate(Mbps)
> FDD LTE:Max 150(DL)/50(UL)
> TDD LTE:Max 130(DL)/35(UL)
- DC-HSPA+ Rate(Mbps): Max 42(DL)/5.76(UL)
- WCDMA Rate(Kbps): Max 384(DL)/384(UL)
- TD-SCDMA Rate(Mbps): Max 4.2(DL)/2.2(UL)
- EDGE Rate(Kbps): Max 236.8(DL)/236.8(UL)
- GPRS Rate(Kbps): Max 85.6(DL)/85.6(UL)
- EVDO Rate(Mbps): Max 3.1(DL)/1.8(UL)
- SMS: Support
- CSD: Support

* Inerfaces
- USIM: 1.8V/3.0V
- UART: 8-wires UART
- USB 2.0(High Speed 480Mbps,Full Speed 12Mbps), Used for commanding communication, data transimission, Software debugg and firmware upgrade
- I2C: Support
- PCM: Support
- Sleep/Wake-up Control: Optional
- Status Indication: Support
- SDIO: 2(for Wi-Fi and SD card)
- ADC: 2
- GPIO: Support
- Antenna: Main, Rx-diversity and GNSS

* Analog Audio
- Analog Audio Channel: Digital audio(PCM)
- Speech Coding & Decoding Schemes: HR/FR/EFR/AMR/AMR-WB
- Echo Algorithm: Echo cancellation/Noise suppression

* Product Features
- DTMF: Support
- SIM Hot Plug: Support
- Firmware Upgrade: USB interface

* Driver
- RIL Driver: Android 4.0 or later
- USB Driver: Windows 7
- Linux 2.6 or later,
- Android 2.3/4.0/4.2/4.4/5.0/6.0

* Size(mm): 32.0×29.0×2.6
