Alcatel Linkhub HH40

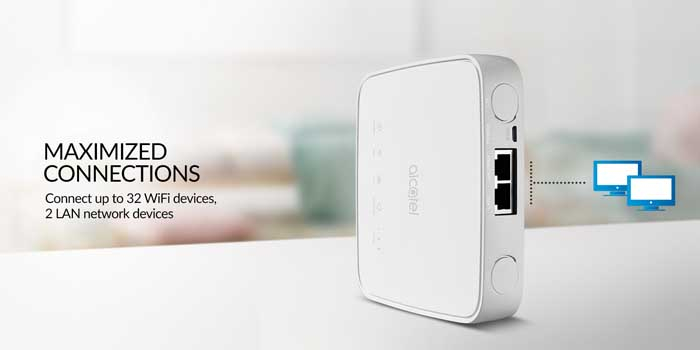

Alcatel Linkhub HH40 is a new 4G LTE Cat4 WiFi router with two Ethernet ports and one SIM card slot. Alcatel HH40 Linkhub could provide fast speed up to 150Mbps and upload speed to 50Mbps. The WiFi of Alcatel Linkhub HH40 could cover around strong 250 meters with single band 2.4GHz. Alcatel HH40 WiFi Router could connect up to 32 WiFi devices and 2 LAN network devices.

Thanks to the Alcatel WiFi Link App, users can easily manage and control your Linkhub straight from the smartphones. Linkhub HH40 is the best solution for small offices, frequency home movers and second houses. The functions of Alcatel Linkhub HH40 are very similar to Huawei E5770 functions. Here now, Alcatel LinkHub HH40 is available for network provider A1 in Austria and got a new name "A1 Net Cube 2". It's also available for Germany carrier congstar and got a new name "Homespot WLAN Router".

Alcatel Linkhub HH40 Router Specifications:

* LTE Cat4 Mobile WiFi Hotspot

* Network Frequency Bands:

- EU Version: Alcatel HH40V
> FDD LTE B1, 3, 7, 8, 20
> UMTS B1, 3, 8
> GMS: 850/900/1800/1900 MHz

- APAC/MEA Version: Alcatel HH40CM
> FDD LTE B1,3,5,(26),7,8,20,28
> TDD LTE B38,40,41
> UMTS B1,3,5,8
> GSM 850/900/1800/1900MHz

* Platform/Chipset: Qualcomm MDM9207

* Data Speed: DL up to 150Mbps, UL up to 50Mbps

* Display: LED lights(Power, Signal, WiFi, LAN, Network)

* Design: 134 x 134 x 31.5mm

* Weight: 310gram

* Memory: 2Gb NAND Flash + 1Gb LPDDR2

* Browser: IE, Safari, Firefox, Opera, Chrome

* Configuration: Web UI (Mobile and PC versions), APP (IOS 5.0 ~9.x and Android 4.2)

* Language: English, French, Italian, Spanish (for the generic version.)

* Other languages available: upon request.

* WLAN: Wi-Fi 802.11b/g/n, 2.4GHz, 2x2 MiMo

* Support Up to 32 WiFi users and 2 LAN network

* Interfaces:
- 1 x Micro SIM card slot (3FF)
- 2 x 100Mbps LAN (RJ45)
- 2 x external SMA LTE antenna connectors
- 1 x Micro USB for power supply
- 1 x WPS key
- 1 x Reset hole

* Technical features: firewall, port forwarding, DHCP server

* Supported OS: Windows10, 8/7, Vista, XP, Mac OS X(10.6.X-10.10.X-)

* Certifications: CE, RoHS, REACH, WEEE, WiFi alliance

----------------------------------------------------------------------------------------------------

If you need the external antenna for Alcatel Linkhub HH40 Router, we would like to recommend below the two LTE antennas. We had tested the antennas and they can work well with Alcatel HH40 LTE Router:

http://www.4gltemall.com/4g-antenna-two-sma-connector.html

If you prefer 4G/LTE outdoor antenna for Alcatel LinkHub HH40 to get a better signal, you could try below the antenna:

http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html
