Quectel L76 GNSS Module
* Quectel GNSS Module
* Ultra low power consumption
* Support QZSS
* Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)
* Anti-Jamming, Multi-tone Active Interference Canceller
* Balloon mode, for high altitude up to 80km
* PPS VS. NMEA can be used for time service
Availability: In stock
- Buy 5 for $35.00 each and save 11%
- Buy 10 for $32.00 each and save 18%
- Buy 15 for $30.00 each and save 24%
Product Downloads

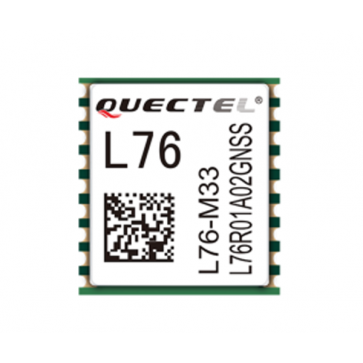

Quectel L76, the extremely compact GNSS module, is a concurrent GNSS receiver with multiple GNSS systems. It provides simultaneous GPS, GLONASS, BeiDou, Galileo and QZSS open service L1 reception capability. With 33 tracking channels, 99 acquisition channels, and 210 PRN channels, L76 GNSS Module can acquire and track any mix of multiple satellite signals.
Compared with using GPS only, enabling multiple GNSS systems generally increases the number of visible satellites, reduces the time to first fix and increases positioning accuracy, especially when driving in rough urban environments.
Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, Quectel L76 module achieves the highest performance and fully meets the industrial standard. The additional feature of embedded logger function called LOCUS allows L76 module to log position information to internal flash memory at default intervals of 15 seconds and provide typically more than 16 hours log capacity without adding cost.
Its super performance makes L76 GNSS Module ideal for automotive, industrial PDA, consumer and industry applications. Extremely low power consumption makes it easier to be applied to power sensitive devices, especially portable applications.
Key Benefits
* Extremely compact size, 10.1mm × 9.7mm ×2.5mm
* Multi-GNSS engine for GPS, GLONASS, BeiDou, Galileo and QZSS
* EASY™, an advanced AGPS technology without external memory
* Ultra-low tracking power consumption, 18mA
* AlwaysLocate™, an intelligent algorithm for power saving
* LOCUS, an embedded logger solution with no need for host and external flash
* High sensitivity, -165dBm @Tracking, -148dBm @Acquisition
* 99 acquisition/ 33 tracking channels and 210 PRN channels
* Support DGPS, SBAS (WAAS/ EGNOS/ MSAS/ GAGAN)
* Anti-Jamming, Multi-tone Active Interference Canceller
* Balloon mode, for high altitude up to 80km
* PPS VS. NMEA can be used for time service
Quectel GNSS L76 Module Specifications:
* GPS Features
- L1 Band Receiver (1575.42MHz):
> Channel: 33(Tracking)/ 99 (Acquisition)
> 210 (PRN)
> C/A Code
> SBAS: WAAS, EGNOS, MSAS, GAGAN
- Horizontal Position Accuracy:
> Autonomous: <2.5m CEP
- Velocity Accuracy:
> Without Aid: <0.1m/s
- Acceleration Accuracy:
> Without Aid: <0.1m/s2
- Timing Accuracy:
> 1PPS Out: 10ns
- Reacquisition Time: <1s
- TTFF @-130dBm with EASY:
> Cold Start: <15s
> Warm Start: <5s
> Hot Start: <1s
- TTFF @-130dBm without EASY:
> Cold Start: <35s
> Warm Start: <30s
> Hot Start: <1s
- Sensitivity:
> Acquisition: -148dBm
> Tracking: -165dBm
> Reacquisition: -160dBm
- Dynamic Performance:
> Maximum Altitude: Max. 18000m
> Maximum Velocity: Max. 515m/s
> Maximum Acceleration: 4G
* Interfaces
- Serial Interfaces:
> UART: Adjustable 4800bps~115200bps
> Default: 9600bps
- Update Rate:
> 1Hz (Default), up to 10Hz
- I/O Voltage:
> 2.7V~2.9V
- Protocols:
> NMEA 0183
> PMTK
* General Features
- Temperature Range: -40°C ~ +85°C
- Dimensions:10.1mm × 9.7mm × 2.5mm
- Weight: Approx. 0.6g
- Power Supply: 2.8V~4.3V
- Power Acquisition:
> 21mA (GPS)
> 25mA (GPS+GLONASS)
> 23mA (GPS+BeiDou)
- Power Tracking:
> 15mA (GPS)
> 18mA (GPS+GLONASS)
> 18mA (GPS+BeiDou)
- Power Saving:
> Typ. 1.4mA @AlwaysLocate (Note1)
> 7uA @Backup Mode
> 500uA @Standby Mode
> Periodic Mode
- Antenna Type: Active or Passive
- Antenna Power: External or Internal VCC_RF
