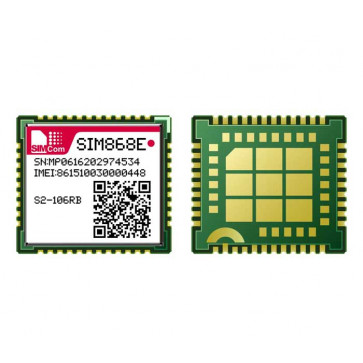

SIMCOM SIM868E GSM/GPRS + GNSS Module
* SIMCOM GSM/GPRS + GNSS Module
* Support 2G Quad-band 850/900/1800/1900MHz
* Support GPS/GLONASS/BD
* Control via AT commands
* BT4.0 Current Consumption
Availability: In stock
SIMCOM SIM868E module is a complete Quad-Band GSM/GPRS module which combines GNSS( GPS/GLONASS/BDS) technology for satellite navigation. The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. It is fully pin-to-pin compatible with SIM868 and supports both BT4.0 and BT3.0 specifications. BLE (Bluetooth Low Energy) technology features ultra-low peak, average and idel mode power consumption, Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
SIMCOM SIM868E module Specifications:
* Four band GSM 850/900/1800/1900 MHz
* Class of data transmission GPRS multi-slot class 12 (85.6 Kbps)
* Compliance with GSM standard phase 2/2 +
* Power class 4 (2 W in the 850/900 MHz bands)
* Power class 1 (1 W in the 1800/1900 MHz bands)
* Dimensions: 15.7 x 17.6 x 2.3 mm
* Weight: 1.5 g
* Management of AT commands (GSM 07.07, 07.05, as well as brand AT commands of SIMCom)
* Interfaces 2хUART (GSM / GPRS) + 1xUART (GNSS), USB, GPIO, ADC, SD, I2C, RTC, Analogue audio interfaces
* Support for 2 SIM-cards (DualSIM Dual Standby) (optional)
* Bluetooth standard 3.0 (profiles - SPP, HSP / HFP, A2DP, etc.) + 4.0 (BLE, profiles: GATT, PXP, FMP)
* PPP stack
* Built-in TCP / IP stack, UDP / IP
* Protocol for multiplexing MUX (07.10)
* HTTP and FTP, SSL (HTTPS, FTPS, SMTPS)
* Receiving and sending SMS (Text & PDU) and MMS
* Support SMS cell broadcast
* RTC GNSS backup
* Audio record
* AMR play - play audio files locally and in the direction of the remote subscriber
* GSM Location - locating base stations
* Decoding and formation of DTMF tones
* TTS (text to speech, optional)
* Embedded AT - work with custom software (optional)
* The supply voltage is 3.4 - 4.4 V
* Operating temperature range: -40 ° C to +85 ° C
* Combined housing with LCC contacts perimeter + LGA
* Sensitivity GPS / GLONASS receiver:
- Maintenance: -167 dBm
- Cold start: -149 dBm
* Start time:
- Cold Start: 29s
- Warm start: 22s
* Hot start: <1с
* Position accuracy: <2.5 m CEP, speed: 0.1m/s
* Optional: Cell Location (definition of coordinates by base stations)
