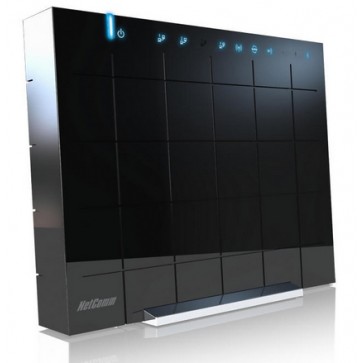

NetComm 4G100WV LTE WiFi Data and Voice Router

NetComm 4G100WV LTE WiFi Data and Voice Router is the 4G LTE CPE Router for WiFi Data and Voice. It lets the force of 4G LTE be with your Internet and phone connection for wireless speeds of up to 100Mbps. NetComm 4G100WV could automatically revert to a 3G/HSPA+ connection where LTE is unavailable; and lets you create a fibre / fixed line connection using the Gigabit WAN port if needed.

Bundle all of your online activities on a single data plan by sharing a high-speed 300Mbps WiFi network between up to 16 devices while making VoIP calls and networking your mass storage devices via the 2 USB 2.0 ports. The device also comes with 4 internal antennas to deliver optimal WiFi and 4G signals.

The LTE WiFi Data & Voice Router 4G100WV includes a phone port so you can make VoIP calls with a standard telephone over the world's most advanced wireless networks while saving on line rental and call costs without compromising quality.

4G100WV could save money and the frustration of managing multiple data plans by sharing a reliable and secure WiFi between up to 16 devices including your laptop, smart phone, tablet computer, gaming console and more. With WiFi speeds of 300Mbps, and 2 internal WiFi antennas, connecting all of your WiFi devices at once will not impact performance.

Technical Specifications:

* 4G100WV-01

4G LTE FDD Cat 3 (DL 100Mbps / UL 50Mbps) bands:

- Band 1 (2100)
- Band 3 (1800)
- Band 7 (2600)
- Band 8 (900)
- Band 20 (DD800)

3G WCDMA/DC-HSPA+ Network:

- Band 1 (2100)
- Band 8 (900)

-----------------------------------------------------------

* 4G100WV-02

4G LTE FDD Cat 3 (DL 100Mbps / UL 50Mbps) bands:

- Band 4 (AWS 1700/2100)
- Band 17 (700)

3G WCDMA/DC-HSPA+ Network:

- Band 1 (2100)
- Band 2 (1900)
- Band 5 (850)
- Band 6 (800)

-----------------------------------------------------------

4G LTE FDD Speed:

- Up to 100 Mbps downlink
- Up to 50 Mbps uplink

DC-HSPA+ Speed:

- Up to 42 Mbps downlink
- Up to 5.67 Mbps uplink

-------------------------------------------------------------

WWAN INTERFACE: 4G x 1

WAN INTERFACE: Gigabit Ethernet x 1 (Configurable WAN/LAN)

LAN INTERFACE: 10/100 Ethernet x 3

USB HOST: USB host ports x 2

VOIP: 1 x FXS port for VoIP calls

WLAN: MAC Address Filtering, WEP, WPA, IEEE 802.1X

Standard: IEEE802.11n, backward compatible with 802.11b/g

Encryption: WEP, WPA, WPA2

Channels

- 11 Channels (US, Canada)
- 13 Channels (Europe, Australia)
- 14 Channels (Japan)

WLAN Data Rate: Up to 300Mbps

WAN CONNECTION:

PPP/IP: Yes

ANTENNA

- Internal 4G Antennas x2
- External MS-147 switching antenna connectors

MANAGEMENT

- SNMP, SNTP, Telnet, Web-based management, Configuration backup and restoration
- Firmware upgrade via HTTP

SECURITY FUNCTIONS: Stateful Packet Inspection, Packet filtering, Denial Of Service protection, Management

Authentication protocols: PAP, CHAP

VPN: PPTP/L2TP/IPSec pass-through

LEDS: Power, LAN 4, LAN 3, LAN2, LAN 1, WLAN, Internet, Voice, 4G, Signal Strength for Low, Mid and High LEDs

POWER

- External power adapter
- 100-240VAC to 12VDC/1.5A

ENVIRONMENTAL CONDITIONS

Operating temperature: 0 ~ 50 degrees Celsius

Relative humidity: 5 ~ 90% (non-condensing)

DIMENSIONS: 205 mm (W) x 175 mm (H) x 31 mm (D)
