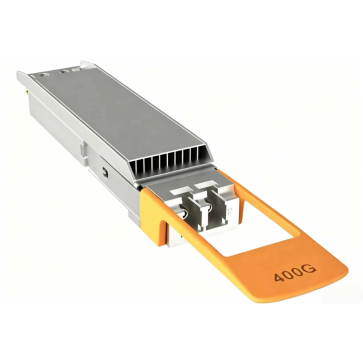

Eoptolink EOLO-134HG-5H-MXX 400G DR4 Optical Transceiver Module

The Eoptolink EOLO-134HG-5H-MXX is a 400G DR4 optical transceiver module in the OSFP form factor, designed for high-speed data center links over 500 meters of single-mode fiber.

Eoptolink EOLO-134HG-5H-MXX Technical Specifications
==================================================
Part Number: EOLO-134HG-5H-MXX
Form Factor: OSFP (MSA Compliant)
Data Rate: 400 Gbps (Aggregate)
Wavelength: 1310 nm
Reach: Up to 500 meters
Fiber Type: Single-Mode Fiber (SMF)
Optical Interface: MPO-12 Connector
----------------------------------------------------------------------
ELECTRICAL & OPERATIONAL PARAMETERS
----------------------------------------------------------------------
Electrical I/F: 8x 53.125 Gbps (PAM4) at host side
Optical I/F: 4x 106.25 Gb/s (PAM4)
Supply Voltage: Single 3.3V Power Supply
Power Dissipation: < 9W
Management I/F: CMIS 4.0 or later version
Operating Temp: 0°C to 70°C (Commercial Grade)
Safety Certs: TUV/UL/FDA
----------------------------------------------------------------------
APPLICATIONS & FEATURES
----------------------------------------------------------------------
* 400 Gigabit Ethernet & 400G NDR InfiniBand links
* Integrated GearBox converts 8 lanes of 53Gbps to 4 lanes of 106Gbps
* Supports "break-out" applications (e.g., 4x100G)
* Integrated PAM4 re-timer ASIC and EML laser
==================================================
