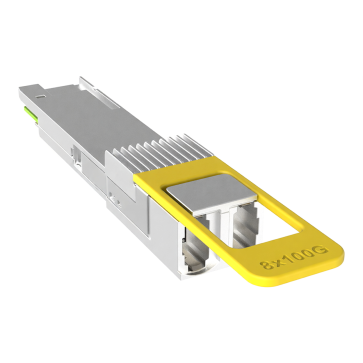

Eoptolink EOLD-138HG-5H-xDxLx 800G QSFP-DD800 Optics (LPO) Transceiver Module

The Eoptolink EOLD-138HG-5H-xDxLx is a high-performance 800G QSFP-DD800 Linear Pluggable Optics (LPO) transceiver module engineered for extreme-density AI data centers and next-generation cloud networks. It supports parallel 8x100G DR8 connections across single-mode fiber (SMF).

Eoptolink EOLD-138HG-5H-xDxLx Optics (LPO) Transceiver Module Specifications:
==========================================
Part Number: EOLD-138HG-5H-xDxLx
Form Factor: QSFP-DD800 (MSA Compliant)
Technology: Linear Pluggable Optics (LPO)
Data Rate: 800 Gbps (8x 106.25 Gbps PAM4)
Wavelength: 1310 nm
Reach: Up to 500 meters
Fiber Type: Single-Mode Fiber (SMF)
Optical Interface: Dual MPO-12 Connector
----------------------------------------------------------------------
ELECTRICAL & OPERATIONAL PARAMETERS
----------------------------------------------------------------------
Electrical I/F: 800GAUI-8 (8 Lanes PAM4)
Supply Voltage: 3.3V Single Power Supply
Management I/F: CMIS 5.0 (or later) with DDM
FEC Requirement: Host-driven KP4 FEC Supported
Operating Temp: 0 deg C to 70 deg C (Commercial Grade)
----------------------------------------------------------------------
APPLICATIONS
----------------------------------------------------------------------
* 800G Data Center Interconnects (DCI)
* AI/ML Compute Cluster Networking
* Breakout Configurations: 1x 800G / 2x 400G (DR4) / 8x 100G (DR1)
==============================================
