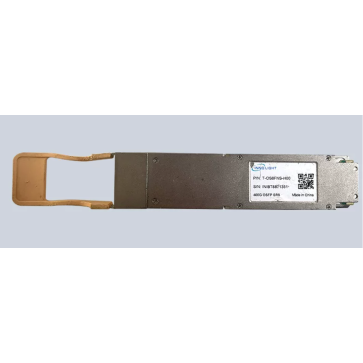

INNO Light T-OS8FNS-H00 800G OSFP Optical Transceiver Module

InnoLight T-OS8FNS-H00 is an 800G OSFP SR8 (Short Reach 8-lane) optical transceiver module designed for high-speed data communications over multimode fiber. It is primarily utilized in 800G systems for data centers, high-performance computing, and enterprise core applications.

Technical Specifications
---------------------------------------
Based on industry datasheets for this 800G SR8 OSFP model, the key specifications are as follows:

* Data Rate: 800 Gbps

* Form Factor: OSFP (Octal Small Form-factor Pluggable)

* Interface Type: SR8 / 2xSR4 (Short Reach 8-lane)

* Wavelength: 850 nm

* Reach: Up to 100 meters over OM4 multimode fiber

* Fiber Type: Multimode Fiber (MMF)

* Connector Type: Dual MTP/MPO-12

* Reach: 30m over OM3 or 50m over OM4

* Power Consumption: ≤16 W

* Operating Temperature: 0°C to 70°C

* Modulation: PAM4 (8x100G)

Key Features
---------------------------------------
* Performance Monitoring: Includes Digital Diagnostic Monitoring (DDM) accessible via an I2C interface, allowing real-time access to operating parameters as per the OSFP MSA.

* Architecture: Integrates eight parallel lanes, each typically operating at 106.25 Gbps (53.125 GBd) to achieve the 800G throughput.

* Error Correction: Designed to operate with host-system Forward Error Correction (FEC) to achieve maximum distance and reliability.

* Hot-Pluggable: Easy to install and hot-swappable for seamless network maintenance.
