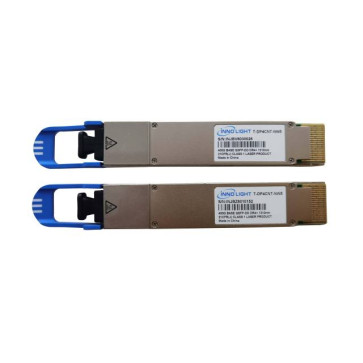

INNO Light T-DP4CNT-NW5 400G QSFP-DD Optical Transceiver Module

InnoLight T-DP4CNT-NW5 is a high-performance 400G QSFP-DD optical transceiver module designed for 2km data transmission over single-mode fiber (SMF). It utilizes a DR4+ interface and is typically used in enterprise networking environments, AI data centers, and high-performance computing (HPC) for reliable connectivity between switches and hubs.

Core Technical Specifications
-----------------------------------------
According to technical data from InnoLight and specialized hardware vendors, the module's primary specifications include:

* Form Factor: QSFP-DD (Quad Small Form-factor Pluggable Double Density)

* Data Rate: 400 Gbps (Aggregate)

* Interface/Type: 400G DR4+

* Wavelength: 1310 nm (4 parallel lanes)

* Maximum Reach: Up to 2 km on Single-Mode Fiber (SMF)

* Modulation: PAM4 (Pulse Amplitude Modulation 4-level)

* Connector Type: MPO-12 (APC)

* Power Consumption: Maximum 12W

* Operating Temp: Standard Commercial: 0°C to 70°C

Optical Performance
-----------------------------------------
* Transmitter (TX): Features a 1310nm EML (Electro-absorption Modulated Laser) with a power range of -2.4 dBm (min) to 4 dBm (max).

* Receiver (RX): Uses a PIN photodiode with a sensitivity range of -6.4 dBm (min) to 4.5 dBm (max).

* Forward Error Correction (FEC): Host-side FEC support is required to achieve the full 2km transmission distance.
