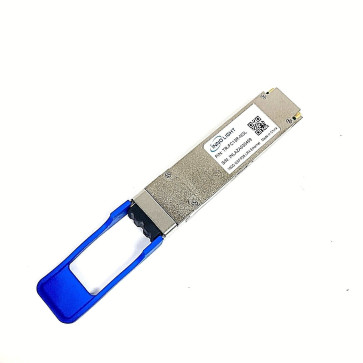

INNO Light TR-FC13R-NGL Optical Transceiver

InnoLight TR-FC13R-NGL is a high-performance 100G QSFP28 LR4 optical transceiver designed for enterprise networking, server applications, and data center interconnects. It provides fast, reliable connectivity over long distances using four wavelengths to achieve an aggregate data rate of 100Gbps.

Technical Specifications

Based on the TR-FC13R series and specific NGL model details:

* Form Factor: QSFP28 (Quad Small Form-factor Pluggable 28).

* Data Rate: 100 Gbps aggregate (4 channels at approximately 25Gbps each).

* Reach: Supports long-distance transmission up to 10 kilometers (km) over single-mode fiber (SMF).

* Wavelength: Operates in the 1310nm range (specifically LAN WDM wavelengths: 1295.56, 1300.05, 1304.58, and 1309.14nm).

* Connector Type: Duplex LC receptacle.

* Standard Compliance: Compliant with IEEE 802.3ba 100GBASE-LR4 requirements and QSFP28 MSA standards.

Optical & Electrical Characteristics

* Transmitter Type: Features four cooled DFB (Distributed Feedback) lasers packaged in a Transmitter
Optical Sub-Assembly (TOSA).

* Receiver Type: Employs four PIN receivers in a Receiver Optical Sub-Assembly (ROSA).

* Power Supply: Single +3.3V power supply.

* Power Consumption: Maximum power consumption is typically around 4.0W.

* Monitoring: Includes full real-time Digital Diagnostic Monitoring (DDM/DOM) to track parameters like temperature, laser bias current, and transmitted/received optical power.

Environmental & Physical

* Operating Temperature: Standard commercial case temperature range of 0°C to 70°C.

* Interface: 4x25G electrical interface (compliant with OIF CEI-28G-VSR).

* Reliability: Includes an automatic power control (APC) circuit to maintain constant optical output power for each channel.
