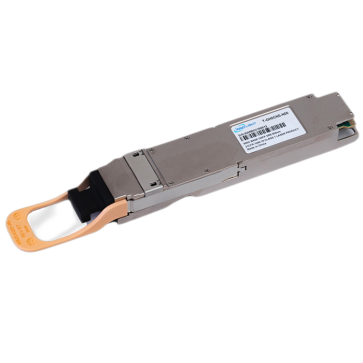

INNO Light T-OS8CNS-N00 800G OSFP Optical Transceiver Module

InnoLight T-OS8CNS-N00 is an 800G OSFP (Octal Small Form-factor Pluggable) SR8 optical transceiver module designed for short-reach, high-performance data center applications, such as AI compute centers and InfiniBand XDR networks.

Technical Specifications
---------------------------------------
According to specifications provided by Alibaba and other networking sources, the T-OS8CNS-N00 features the following technical attributes:

* Data Rate: 800 Gbps

* Form Factor: OSFP (Octal Small Form-factor Pluggable)

* Interface Type: SR8 / 2xSR4 (Short Reach 8-lane)

* Wavelength: 850 nm

* Reach: Up to 100 meters over OM4 multimode fiber

* Fiber Type: Multimode Fiber (MMF)

* Connector Type: Dual MPO-12

* Power Consumption: ≤15 W

* Operating Temperature: 0°C to 70°C

* Modulation: PAM4 (8x100G)

Key Features
---------------------------------------
* AI and HPC Optimization: This module is specifically tailored for AI compute centers requiring high-throughput and low-latency connections, often used to connect massive data transfers between compute nodes and storage systems.

* Infiniband Compatibility: It supports 800G InfiniBand XDR (Extremely Fast Data Rate) and is compatible with platforms such as NVIDIA MQM9790-NS2F.

* Design: The OSFP form factor typically includes an integrated heat sink to manage the thermal demands of 800G operations, supporting modules that can consume up to 16–18W typically.

* Breakout Capability: The eight-lane architecture (8x100G) can often be configured for native 800G operation or breakouts into 2x400G and 8x100G links depending on the network configuration.
