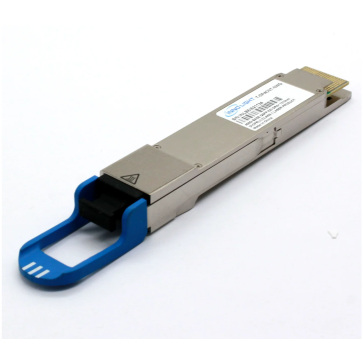

INNO Light T-DP4CNT-NWD 400G QSFP-DD DR4+ Optical Transceiver Module

InnoLight T-DP4CNT-NWD is a high-speed, 400Gb/s QSFP-DD DR4+ optical transceiver module designed for data center and enterprise networking applications. As a "DR4+" variant, it offers an extended transmission reach of up to 2km over single-mode fiber (SMF), significantly exceeding the standard 500m reach of standard DR4 modules.

Core Technical Specifications
-----------------------------------------
According to technical data from InnoLight and specialized hardware vendors, the module's primary specifications include:

* Form Factor: QSFP-DD (Quad Small Form-factor Pluggable Double Density)

* Data Rate: 400 Gbps (Aggregate)

* Electrical Interface: 8x 50Gb/s (PAM4) input/output (400GAUI-8).

* Optical Interface: 4x 100Gb/s parallel optical

* Interface/Type: 400G DR4+

* Wavelength: 1310 nm (4 parallel lanes)

* Maximum Reach: Up to 2 km on Single-Mode Fiber (SMF)

* Modulation: PAM4 (Pulse Amplitude Modulation 4-level)

* Connector Type: MPO-12 (APC)

* Power Consumption: Maximum 12W

* Transmitter Type: EML (Electro-absorption Modulated Laser).

* Operating Temp: Standard Commercial: 0°C to 70°C

Optical Performance
-----------------------------------------
* Power Consumption: Maximum of 10.5W.

* Operating Case Temperature: Commercial grade, ranging from 0°C to 70°C.

* Laser Technology: Uses EML (Electro-absorption Modulated Laser) technology for high-speed transmission.

* Compliance: Complies with QSFP-DD MSA and IEEE 802.3bs 400GBASE-DR4 standards.

Applications and Features
-----------------------------------------
* Connectivity: Ideal for high-bandwidth connectivity for switches and hubs in demanding enterprise environments.

* Monitoring: Supports real-time Digital Diagnostic Monitoring (DDM/DOM).

* Design: Designed for the harshest external operating conditions, including humidity and EMI interference.
