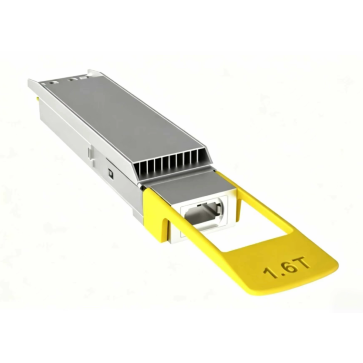

Eoptolink EOLO-13T-5H-XDX Optical Transceiver Module

The Eoptolink EOLO-13T-5H-XDX is an ultra-high-speed 1.6T OSFP DR8 pluggable optical transceiver module designed for massive-scale AI/ML compute clusters and next-generation cloud data centers. It delivers a total throughput of 1.6 Terabits per second while utilizing an optical configuration optimized for breakout applications.

Eoptolink EOLO-13T-5H-XDX Optical Transceiver Module Specifications:
=================================================
Part Number: EOLO-13T-5H-XDX
Form Factor: OSFP (MSA Compliant)
Generation: Gen2 1.6T Optical Transceiver (3nm DSP Optimized)
Total Bandwidth: 1.6 Tbps (Supports 1x 1.6TbE or 2x 800GbE Breakout)
Optical Interface: Dual MPO-12 Connector (2x MPO-12)
Lane Configuration: 8 Channels x 212.5 Gbps PAM4 Optical Interfacing
Wavelength: 1310 nm Center Wavelength
Reach: Up to 500 meters
Fiber Type: Single-Mode Fiber (SMF)
----------------------------------------------------------------------
ELECTRICAL & OPERATIONAL PARAMETERS
----------------------------------------------------------------------
Electrical I/F: 8 Lanes Host Interfacing (212.5 Gbps PAM4 per lane)
Supply Voltage: 3.3V Single Power Supply
Management I/F: CMIS 5.0 (or later version)
DSP Technology: Integrated Next-Gen Low-Power 3nm DSP Retimer
FEC Requirement: Supported at Host Side (No optical-side FEC regeneration)
Power Dissipation: Optimized <14.5W (Approx. 20% lower than Gen1)
Operating Temp: 0 deg C to 70 deg C (Commercial Grade)
Compliance: RoHS, TUV, UL, FDA Certified
----------------------------------------------------------------------
APPLICATIONS & BREAKOUT OPTIONS
----------------------------------------------------------------------
* 1.6 Terabit Ethernet AI/ML Compute Cluster Architectures
* 2x 800GbE Breakout Networking (via Dual MPO-12 Front-Port Design)
* Ultra-Low Latency Next-Gen Cloud Data Center Core Interconnects
=================================================
