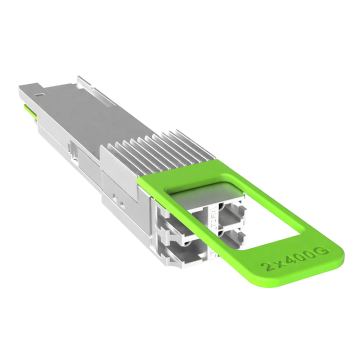

Eoptolink EOLD-168HG-02-SLx 800G QSFP-DD800 Optical Transciver Module

The Eoptolink EOLD-168HG-02-SLx is a high-performance 800G QSFP-DD800 Linear Pluggable Optics (LPO) transceiver module designed for data center interconnects and AI networking. It operates as a 2x400G FR4 module over single-mode fiber (SMF), offering an integrated driver/TIA setup built for maximum efficiency and ultra-low latency.

Eoptolink EOLD-168HG-02-SLx Optical Transciver Module Specifications:
===================================================
Part Number: EOLD-168HG-02-SLx
Form Factor: QSFP-DD800 (MSA Compliant)
Technology: Linear Pluggable Optics (LPO)
Architecture: 2x400G FR4 Coaxial / Linear Architecture
Data Rate: 850 Gbps Total (8x 106.25 Gbps PAM4)
Wavelength: CWDM4 Grid (Near 1310nm)
Reach: Up to 2 Kilometers (2km)
Fiber Type: Single-Mode Fiber (SMF)
Optical Interface: Dual Duplex LC / Dual SN / Dual CS (SLx Variant dependent)
----------------------------------------------------------------------
ELECTRICAL & OPERATIONAL PARAMETERS
----------------------------------------------------------------------
Electrical I/F: 800GAUI-8 (8 Lanes PAM4)
Supply Voltage: 3.3V Single Power Supply
Management I/F: CMIS 5.0 (or later) with Integrated DDM
FEC Requirement: Host-driven KP4 FEC Supported
Power Dissipation: Optimized <16W (significantly lower than DSP versions)
Operating Temp: 0 deg C to 70 deg C (Commercial Grade)
Compliance: RoHS, TUV, UL, FDA Certified
----------------------------------------------------------------------
APPLICATIONS
----------------------------------------------------------------------
* 800G to 2x400G Breakout Data Center Interconnects (DCI)
* Next-Gen AI/ML Cloud Compute Clusters
* High-Density Switch-to-Switch Core Routing
===================================================
