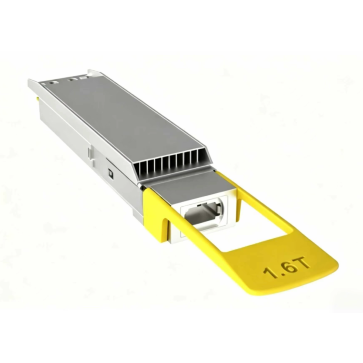

Eoptolink EOLO-16T-02-XXX 1.6T OSFP 2xFR4 Optical Transceiver Module

The Eoptolink EOLO-16T-02-XXX is a cutting-edge, fully retimed 1.6T OSFP 2xFR4 pluggable optical transceiver module designed to power AI/ML clusters and next-generation cloud architectures. By adopting a 2xFR4 design over a CWDM grid, it allows 1.6 Terabits of throughput using only 2 pairs of single-mode fibers, delivering a massive 50% fiber plant reduction compared to DR8 alternatives.

Eoptolink EOLO-16T-02-XXX Optical Transceiver Module Specifications:
==================================================
Part Number: EOLO-16T-02-XXX
Form Factor: OSFP (MSA Compluggable)
Generation: Gen2 1.6T Optical Transceiver (3nm DSP Core)
Total Bandwidth: 1.6 Terabits per second (1.6 Tbps)
Optical Interface: Dual Duplex LC Connectors
Configuration: 2x 800GbE FR4 Breakout / Multi-rate Mode
Wavelength: CWDM4 Grid (Near 1310nm)
Reach: Up to 2 Kilometers (2km)
Fiber Type: Single-Mode Fiber (SMF)
----------------------------------------------------------------------
ELECTRICAL & OPERATIONAL PARAMETERS
----------------------------------------------------------------------
Electrical I/F: 8 Lanes Host Interfacing (212.5 Gbps PAM4 per lane)
Optical I/F: 4 Channels per FR4 engine (212.5 Gbps PAM4 per lane)
Supply Voltage: 3.3V Single Power Supply
Management I/F: CMIS 5.0 (or newer) with comprehensive DDM
DSP Architecture: Integrated Next-Gen Low-Power 3nm DSP Retimer
FEC Architecture: Host-driven FEC (No optical-side FEC regeneration)
Power Saving: ~20% power reduction vs Gen1 1.6T DSP models
Operating Temp: 0 deg C to 70 deg C (Commercial Grade)
Compliance: RoHS, TUV, UL, FDA Certified
----------------------------------------------------------------------
APPLICATIONS & ADVANTAGES
----------------------------------------------------------------------
* Next-Gen AI/ML Cloud Compute Clusters & Core Switching
* 2x 800G Breakout Networking over legacy LC single-mode fiber plants
* Ultra-Low Latency Switch-to-Switch Core Data Center Interconnects
* Advanced VDM (Versatile Diagnostics Monitoring) for pre/post FEC assessment
==================================================
