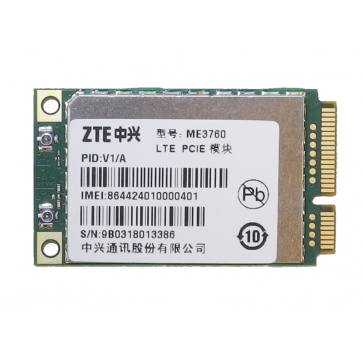

ZTE ME3760 Mini PCIe 4G LTE Wireless Module

ZTE ME3760 is the new 4G LTE Module from ZTE, it has Mini PCI Express interface and is widely used in CE products such as Ultrabook, Notebook, Tablet and CPE etc..The 4G LTE Module ME3760 ZTE could support 4G LTE FDD and TD-LTE network, and TD-SCDMA & HSPA networks are backward compatible. The peak download speed on LTE could reach 100Mbps and upload speed could reach 50mbps.

ZTE Module ME3760 Technical Specifications:

* Network: TDD-LTE/FDD-LTE/TD-SCDMA HSPA

* Frequency band

- TDD-LTE 1900MHz(Band39)/2300MHz(Band40)/2600MHz(Band38)
- FDD-LTE 2600MHz(Band 7)
- TD-SCDMA HSPA1900/2100MHz

* Data rate: DL 100Mbps/UL 50Mbps

* Interface: Mini PCIE 52Pin

* Function: Data

* Commands: Standard AT commands/ZTE exclusive commands

* Certifications: TBD

* Highlights: Support dual antenna diversity recption

* Support TDD and FDD dual mode

* Dimensions: 51*30*5.05mm

* Temperature: -10℃ to +60℃

* Voltage: 3.0V~3.6V/typical 3.3V

* USB interface USB 2.0

* OS Support: Windows XP/Vista/7, Linux 2.6.20 and later, WinCE6.0
