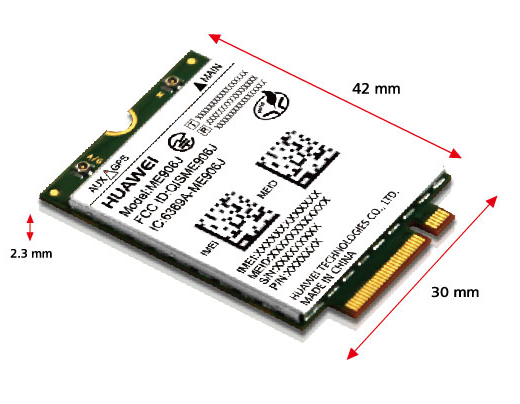

HUAWEI ME906J LTE NGFF M.2 4G Module
* LTE (FDD) B1/B11/B18/B19/B21
* CDMA/EVDO BC0/BC6
* Quad-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B6/B19
* WCDMA PS: UL (384 kbps)/ DL (384 kbps)
* DC-HSPA+: UL (5.76 Mbps)/ DL (42 Mbps)
* LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)
Availability: In stock
Regular Price: $258.00
Special Price $168.00
HUAWEI ME906J is an LTE module with NGFF interface, supporting LTE (FDD) B1/B11/B18/B19/B21, Quad-band DC-HSPA+/HSPA+/HSPA/UMTS, CDMA/EVDO for Japan network coverage, low power consumption, Global Navigation Satellite System(GNSS), and Japan carrier certifications, enabling easier and more flexible design and integration into end devices.
In addition, the HUAWEI ME906J supports NGFF features to optimize performance, power consumption, and usability. HUAWEI ME906J is the ideal choice for Ultrabook, notebook, tablet etc. Like Huawei ME906J, Huawei ME909J module is also for Japan market.
Huawei ME906J LTE Module Specifications:
Bands:
* LTE (FDD) B1/B11/B18/B19/B21
* CDMA/EVDO BC0/BC6
* Quad-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B5/B6/B19
Data Transfer Rate:
* 1x: UL (153.6 kbps)/ DL (153.6 kbps)
* EVDO Rev.B: UL (5.4 Mbps)/ DL (14.7 Mbps)
* WCDMA PS: UL (384 kbps)/ DL (384 kbps)
* DC-HSPA+: UL (5.76 Mbps)/ DL (42 Mbps)
* LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)
Interface
* l Antenna interfaces x 2
* l M.2 Socket 2
* USB 2.0 interface high speed
* Power supply
* UICC interface
Power Supply
* Supply voltage range:3.135V~4.4V (3.3 V recommended)
Temperature Range
* Normal operation: -10°C to +55°C
* Extended operation: -20°C to +70°C
* Storage: -40°C to +85°C
GPS/Glonass
* GNSS: GPS Standalone, A-GPS, GPS XTRA, Glonass
Special Features
* SIM Hotswap
* IPV6
* BodySAR
* Ultrabook feature support(ACT, WiFi Offload , DPTF)
* Tunable Antenna
* Supporting MO and MT
* Supporting formats of PDU
* Point-to-point and cell broadcast
Operating System
* OS: Windows 7/Windows 8/Android 4.0 or above
Approvals
* GCF
* TELEC/JATE
* ROHS/Halogen free
* Operator TA: KDDI, NTT DOCOMO
