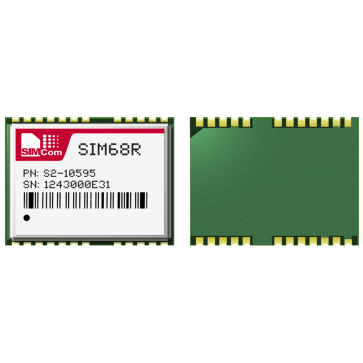

SIMCOM SIM68R GNSS Module
* Support GPS/GLONASS/Galileo/QZSS
* Support EASYTM self-generated orbit prediction
* Support EPOTM orbit prediction
* Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
* Support Jamming removing function
* Support DGPS (RTCM)
Availability: In stock
SIMCom presents a high performance and reliable GNSS module - SIM68R. This is a standalone L1 frequency GNSS module in a SMT type with MTK's high sensitivity navigation engine, which allows you to achieve the industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
SIMCOM SIM68R Features
* Support GPS/GLONASS/Galileo/QZSS
* Support EASYTM self-generated orbit prediction
* Support EPOTM orbit prediction
* Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
* Support Jamming removing function
* Support DGPS (RTCM)
SIMCOM SIM68R Technical Specifications:
Interfaces
* Serial interfaces
- UART
- I2C
* Digital I/O
- EINT0 input
- AADET_IN
- Pulse-per-second (PPS)
* Protocols
- NMEA
- PMTK
Support evaluation products
* SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
* Power supply (VCC): +2.8V ~4.3V
* Backup power: +2.3V ~4.6V
* Power consumption2,6
- Acquisition: 34mA
- Tracking: 30mA
- AlwaysLocateTM: <440uA
- Backup: 14μA
* Antenna type
- Active and Passive
* Antenna power
- External or internal VCC_RF Performance data
* Receiver type
- 33 tracking / 99 acquisition- channel GNSS receiver
* Max. update rate
- 10Hz
* Sensitivity1
- Tracking: -167 dBm
- Reacquisition: -160 dBm
- Cold starts: -148 dBm
* Time-To-First-Fix1,2
- Cold starts: 28s
- Warm starts: 26s
- Hot starts: <1s
- EPO Assist: 13s (CTTFF)
* Accuracy
- Automatic Position3: 2.5m CEP
- Speed4: 0.1m/s
* Operation temperature: -40℃~+85 ℃
Mechanical data
* Dimensions: 22.4*17*2.7 mm
* Weight: 2g
Certifications
* CE
