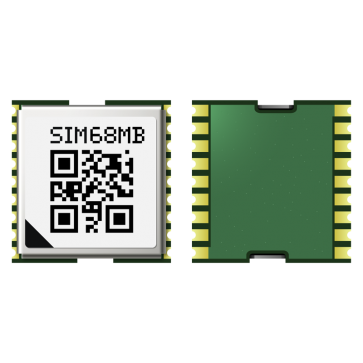

SIMCOM SIM68MB GPS GNSS Module
* Support GPS/BD2
* Support EASYTM self-generated orbit prediction
* Support EPOTM orbit prediction
* Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
* Support DGPS (RTCM)
* Support Jamming Removing
* Low-noise amplifier has been integrated
Availability: In stock
SIMCom presents a high performance and reliable GNSS module-SIM68MB. This is a standalone GPS L1 frequency and BD2 GNSS module in a SMT type with MTK’s high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
SIMCOM SIM68MB Features:
* Support GPS/BD2
* Support EASYTM self-generated orbit prediction
* Support EPOTM orbit prediction
* Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
* Support DGPS (RTCM)
* Support Jamming Removing
* Low-noise amplifier has been integrated
SIMCOM SIM68MB Technical Specifications:
Interfaces
* Serial interfaces
- UART
- Digital I/O
- EINT0 input
- Pulse-per-second (PPS)
* Protocols
- NMEA
- PMTK
- PSIM
Support product
* SIM68 EVB KIT with USB V2.0 full speed interface
Performance data
* Receiver type
- 33tracking/99 acquisition-channel GNSS receive
* Max. update rate: 10Hz
* Sensitivity1
- Tracking:-165 dBm
- Reacquisition: -160 dBm
- Cold starts: -148 dBm
* Time-To-First-Fix2
- Cold starts: 28 s
- Warm start:26 s
- Hot starts: <1s
- -EPO Assist: 13s(CTTFF)
* Accuracy
- Automatic Position3:<2.5m CEP
- peed4: 0.1m/s
* Operation temperature5: -40℃~+85 ℃
Electrical data
* Power supply 2.8V~4.3V
* Backup power 2.3V~4.6V
* Power consumption2,6
- Acquisition 25mA
- Tracking 18mA
- AlwaysLocateTM 340uA
- Backup 14uA
* Antenna type
- Active and passive
* Antenna power
- External or internal VCC_RF
Mechanical data
* Dimensions: 10.1*9.7*2.5mm
* Weight: 1g
