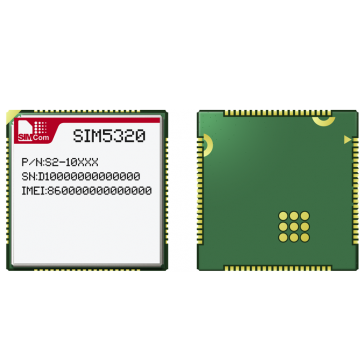

SIMCOM SIM5320 SIM5320A SIM5320E SIM5320J

* Dual-Band UMTS/HSDPA 850/1900MHz or 900/21000MHz or 850/2100MHz


* Sub-models: SIM5320E, SIM5320A, SIM5320J


* Control Via AT Commands


* Support LUA Script Language


* HSDPA: Max. 3.6Mbps(DL)


* Support GPS, SMS, NITZ

Sign up for price alert

Availability: In stock

$89.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

* Required Fields

Details
Details

SIMCOM SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer's application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.


SIMCOM SIM5320 Technical Specifications:


* SIM5320A:
- Dual-Band UMTS/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* SIM5320E:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* SIM5320J:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12

* EDGE multi-slot class 12

* Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W

* Control Via AT Commands

* Supply voltage range: 3.4~ 4.2V

* Operation temperature: -30℃ to +80℃

* Extended operation temperature: -40℃ to +85℃

* Dimension: 30 * 30 * 2.9 mm

* Weight: 5.6g



Support embedded Script Language: LUA Script Language


Specifications for GPS/Location

* CELL assistant Location (No GPS)

* A-GPS: MS-Based, MS-Assisted

* Stand-alone GPS

* QUALCOMM XTRA GPS mode



Specifications for Data transfer

* HSDPA: Max. 3.6Mbps(DL)

* WCDMA: Max.384Kbps(DL), Max.384Kbps(UL)

* EDGE Class: Max. 236.8Kbps(DL),Max.118Kbps(UL)

* GPRS: Max. 85.6Kbps(DL), Max.42.8Kbps(UL)

* CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call

* Multi-PDP connect application



Specifications for SMS

* Point to point MO and MT

* Text and PDU mode



Specifications for Network Identity and Time zone (NITZ)

* Support in GSM and WCDMA



Other features

* USB Driver for Microsoft Windows 2000/XP/Vista

* USB Driver for Windows CE/Mobile

* USB Driver for Linux 2.6/Android

* Firmware update via USB

* MMS

* TCP/IP

* MUX protocol over UART

* FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS

* FOTA

* eCall Ready

* Jamming detection support



Interfaces

* USB2.0

* UART

* SIM card

* SPI

* I2C

* Keypad

* Constant current sink

* GPIO

* RTC

* ADC

* PCM



Certifications

* SIM5320A
- FCC
- PTCRB
- IC
- ROHS,
- REACH

* SIM5320E

- CE
- GCF
- ROHS
- REACH
- NCC


Carrier Approvals

* SIM5320A: AT&T, Rogers

* SIM5320E: TIM

* SIM5320J: Telec, JATE
