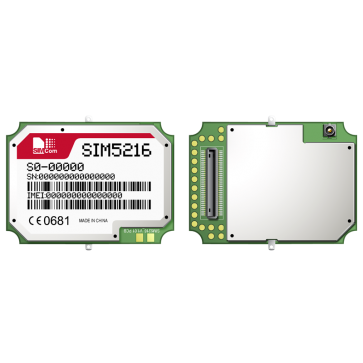

SIMCOM SIM5216 SIM5216A SIM5216E SIM5216J

SIMCOM SIM5216 series is Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE module solution which supports HSDPA up to 3.6Mbps for downlink data transfer. With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application. Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.

SIMCOM SIM5216 Technical Specifications:

* SIM5216A:
- Dual-Band UMTS/HSDPA 850/1900MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* SIM5216E:
- Dual-Band UMTS/HSDPA 900/2100MHz
- Tri-Band GSM/GPRS/EDGE 850/900/1800MHz

* SIM5216J:
- Dual-Band UMTS/HSDPA 850(800)/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

* GPRS multi-slot class 12

* EDGE multi-slot Class 12

* WCDMA 3GPP release 5

* Output power:
- UMTS 1900/850: 0.25W (for SIM5216A)
- UMTS 2100/900: 0.25W (for SIM5216E)
- GSM850/GSM900: 2W
- DCS1800: 1W
- PCS1900: 1W (for SIM5216A)

* Control Via AT Commands:

* Supply voltage range: 3.3V~ 4.2V

* Operation temperature: -30 ? to +80 ?

* Dimension: 36mm × 26mm × 4.7mm

* Weight: 7g

* Support embedded Script Language: LUA Script Language

* Specifications for Data transfer:

- HSDPA - Max.3.6Mbps(DL)
- WCDMA - Max.384Kbps(DL), Max.384Kbps(UL)
- EDGE Class - Max. 236.8Kbps(DL),Max.118Kbps(UL)
- GPRS - Max. 85.6Kbps(DL), Max.42.8Kbps(UL)
- CSD
- GSM data rate 14.4Kbps
- WCDMA data rate 57.6Kbps

* Specifications for SMS:

- Point to point MO and MT
- Text and PDU mode

* Specifications for CSD:

- Support in GSM and WCDMA

* Specifications for Network Identity and Time zone (NITZ):

- Support in GSM and WCDMA

* Specifications for video call:

- DTMF on H245
- Support standard WCDMA 64kbps(CS) Video call

* Other features:

- USB Driver for Microsoft Windows 2000/XP/Vista
- USB Driver for Linux 2.6.16
- Firmware update via USB
- MMS
- TCP/IP
- FTP/HTTP/SMTP/POP3
- FOTA
- USB Audio

* Interfaces:

- USB2.0
- UART
- USIM card
- ADC
- Digital Camera
- GPIO
- I2C
