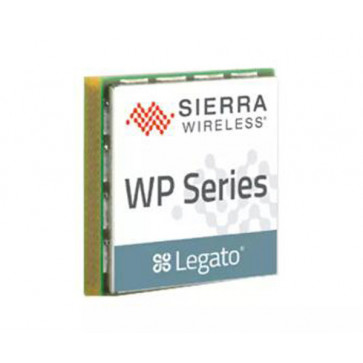

Sierra Wireless AirPrime WP7608-1
* Category: LTE Cat.1 embedded module
* CF3 Form Factor: LGA
* Chipset: Qualcomm
* Target Region: India/China
* Support LTE frequency bands: B1, B3, B5, B8, B40, B41*
* Data Speed: DL 10mbps, UL 5mbps
* Location Service: GPS, Galileo, Glonass, Beidou
Availability: In stock
Product Downloads
Sierra Wireless AirPrime WP7608-1 is a new LTE Category 1 module on LGA CF3 form factor targeted at India/China region. AirPrime WP7608-1 supports LTE frequency band B1/B3/B5/B8/B40/B41*. It could achieve download speed up to 10mbps and upload speed to 5mbps. And it could support GPS, Galileo, Glonass, Beidou location service. The Sierra WP7608-1 is similar to the brother model LTE Cat.1 cellular module Sierra WP7607-1(for EMEA region).
Sierra AirPrime WP7608-1 Specifications:
* Category: LTE Cat.1
* CF3 Form Factor: LGA
* Chipset: Qualcomm
* Snap-in socket option: Yes
* Target Region: India/China region
* Support LTE frequency bands: B1, B3, B5, B8, B40, B41*
* Support 3G frequency bands: HSPA+, UMTS (B1, B8)
* Support 2G frequency bands: EDGE, GSM, GPRS (900/1800Mhz)
* Data Speed: DL 10mbps, UL 5mbps
* Location Service: GPS, Galileo, Glonass, Beidou
* Application Core: ARM® Cortex™- A7(1.3GHz)
* Telecom Core: Dual QDSP6 (600MHz)
* Embedded Software: Secure boot, Pre-cetified firmware
* Embedded Platform: Legato open source
* Linux Distribution: Yocto, Long-term supported Linux Kernel (LTSI)
* Audio Codecs:
- Digital audio
- PCM/12S
- Codec: HR, FR, EFR, AMR
- Echo cancellation & noise reduction
- DTMF
* USB Drivers: Windows 7 and 8, Linux
* Interfaces:
- UART x 2
- USB x 1
- 12C x 1
- ADC x 4
- GPIO x 18
- Tx ON Indicator x 1
- SIM Interface 1.8V/3V x 1
* Dimensions: 22 x 23 x 2.5mm
* Antenna: Diversity, MIMO
* Temperature range: -40°C to +85°C (Industrial Grade)
* Approvals: CCC, GCF Regulatory
* Optional Ready-to-Connect Sierra Wireless embedded SIM
* Cloud Services:
- Free Unlimited FOTA upgrades
- Device Management option
- Application Enablement option
- Connectivity Management option
