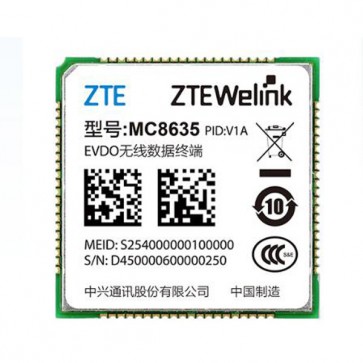

ZTE MC8635 CDMA2000 1X/EV-DO Module

ZTE MC8635 is one of the CDMA2000 1X/EVDO modules in LCC castellation packaging with ultra low power consumption and extended temperature range. ZTE MC8635 features data-rates of 3.1Mbps (DL) and 1.8Mbps (UL) which can provide users with reliable mobile data connections. With compact package, industral temperature range as well as reliable hardware and software, MC8635 is ideal for a wide range of industrial applications such as smart meters, In-vehicle infotainment system, tele-medicine, POS, industrial handheld devices, etc..

ZTE MC8635 highlights:

* LCC 30*30 Form factor, compatible with vlink family products

* Control Via AT Commands according to 3GPP TS27.005, 27.007 and ZTEWelink extended AT commands

* Drivers for WIN XP/7, Android, Linux, WinCE OS

* Support a rich set of internet protocols (TCP/UDP protocols,), industry-standard interfaces (UART) and abundant functions

ZTE MC8635 technical specifications:

* Network: CDMA 2000 1X/EV-DO

* Frequency band: CDMA 2000 EV-DO Rev.A 800MHz

* Dimensions: 30×30×2.4 mm

* Temperature: -40℃ to +85℃

* Voltage Range：3.3V~4.2V

* Typical Value：3.8V

* Consumption: About 3.5mA standby current

* Interface: LCC 80Pin

* USB interface: USB 2.0

* Driver
- Windows XP/7
- Android 2.3/4.0
- Linux 2.6.20 and later
- WinCE 5.0/6.0

* Data rate
- DL: 3.1Mbps
- UL: 1.8Mbps

* Function: Data/SMS

* Commands: Standard AT commands/ZTE exclusive commands

* Certifications: CCC/CMIIT/RoHS
