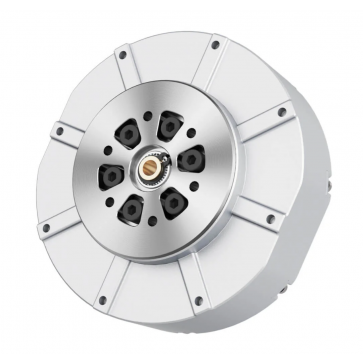

Unitree GO-M8010-6 Motor
* Brushless High Speed Motor
* Strong Driving Force, Longer Service Life
* Excellent in Black Technology
* Temperature Monitoring Sensor
* Professional Magnetic Circuit Design
* Stable with High Performance
* Motor Streamline Calculation
Availability: In stock
A$567.22
Details
Details
Unitree GO-M8010-6 permanent magnet synchronous motor is designed for high-performance robots and provides a strong driving force with a high level of integration.
- Bionic Robot Joint Motor
- Flexible Adaptive Joints
- Strong Driving Force
- Highly Integrated
- Precision Bearing
- Temperature Sensor and Position Sensor
- Low Copper Consumption Coil
- High-speed Communication
The motor is perfectly matched to the reduction. It has a built-in FOC control algorithm, a built-in temperature sensor and an absolution value encoder.
It is the first choice for robot competitions, DIY creation, scientific research and education, robotics field, etc.
Unitree GO-M8010-6 Motor Specifications:
* Model number: GO-M8010-6
* Weight: around 530g
* Maximum current: 40A
* Max speed: 30rad/s(24V power supply)
* Reduction ratio: 1:6.33
* Communication frequency band: 6000Hz
* Working temperature: -5℃ ~ 40℃
* Maximum torque: 23.7NM
* Torque constant: 0.63895Nm/A
* Dimensions: 96.5 x 92.5 x 42.3mm
* Voltage: 12V ~ 30VDC, 24VDC(recommend)
