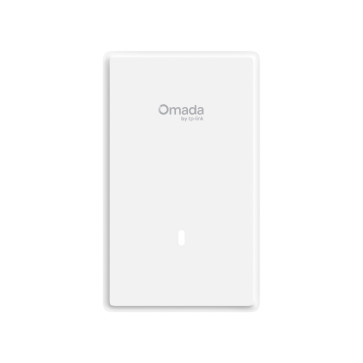

TP-Link EAP725-Wall BE5000 Wall Plate Wi-Fi 7 Access Point

Highlights:

* Dual-Band Wi-Fi 7: 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.†

* Versatile Ports with PoE Flexibility: 1× 2.5G PoE Input port, 1× 2.5G PoE pass-through port, and 2× Gigabit downlink ports.

* Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.‡

* Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 750ft² (70 ㎡).*

* Flexible Deployment and Easy Setup: Supports 802.3at/bt PoE for flexible installation with Omada SDN for one-click setup.

* Advanced Features: Supports centralized cloud management, Mesh, and Seamless Roaming.△

* More Connections: Supports 250+ concurrent connections.

TP-Link EAP725-Wall Omada Wi-Fi 7 Access Point Specifications:

HARDWARE FEATURES
---------------------------------------------------------
* Interface：
• Uplink: 1× 2.5G Ethernet Port
• Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through.)

* Physical Security Lock: No

* Button: Reset, LED

* Power Supply：802.3at/bt PoE

* PoE Out
PoE Passthrough (Pins 1,2-; 3,6+)
The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.

* Max. Power Consumption:
• 802.3bt: 17W (PoE Out support 15.4W)
• 802.3at: 17W (PoE Out support 7W)

* Dimensions ( W x D x H ): 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in)

* Antenna Type：
4× Internal Antennas
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

* Bluetooth：V5.2

* Mounting: Wall Mounting (Screws included)

WIRELESS FEATURES
---------------------------------------------------------
* Coverage: 750ft² (70 ㎡)*

* Concurrent Clients: 250+

* Wireless Standards： IEEE 802.11 a/b/g/n/ac/ax/be

* Frequency：2.4GHz, 5GHz

* Signal Rate
• 5 GHz: Up to 4324 Mbps
• 2.4 GHz: Up to 688 Mbps

* Wireless Functions：
• MLO‡
• 4K-QAM‡
• Multi-RUs‡
• 240 MHz Bandwidth‡
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming△
• Beamforming
• Rate Limit (Based on SSID/Client)
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

* Wireless Security
• Captive Portal Authentication△
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

* Transmission Power
4-22 dBm (2.4GHz)
4-22 dBm (5GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM)

MANAGEMENT
---------------------------------------------------------
* Omada App：Yes

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

* Cloud Access：Yes. Require the use of an Omada controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: System Log

* SSH: Yes

* Web-based Management: Yes

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
---------------------------------------------------------
* Certification: CE, RoHS

* Package Contents
• EAP725-Wall
• Installation Guide
• Mounting Screws

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
