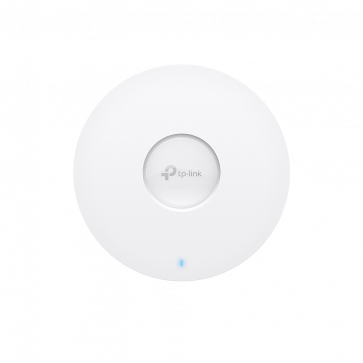

TP-Link Omada EAP673 AX5400 Ceiling Mount WiFi 6 Access Point

Highlights:

* Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).†

* Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.

* 160 MHz Channel double the data at peak transmission times on a single stream.‡

* Advanced features: Supports seamless roaming§,Omada Mesh§, and more.

* Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

TP-Link Omada EAP673 Access Point Specifications:

HARDWARE FEATURES

* Interface：1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

* Button：Reset

* Power Supply：802.3at PoE or 12V/2A DC (Power adapter not included)

* Power Consumption：
• EU: 20.8 W
• US: 22.3 W

* Dimensions ( W x D x H )：8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

* Antenna Type：
- Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi

* Bluetooth: Yes

* Mounting:
• Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

* Coverage: 140㎡(1500 ft²)

* Wireless Client Capacity: 250+

* Wireless Standards：IEEE 802.11ax/ac/n/g/b/a

* Frequency：5 GHz and 2.4 GHz

* Signal Rate:
• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps

* Wireless Functions：
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)
• Seamless Roaming
• Omada Mesh
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

* Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

* Transmission Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)

MANAGEMENT

* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH： Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller.

OTHERS

* Certification: CE, FCC, RoHS

* Package Contents
• EAP673
• Ceiling/Wall Mounting Kits
• Installation Guide

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

* Environment
- Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity: 10%–90% non-condensing;
- Storage Humidity: 5%–90% non-condensing;
