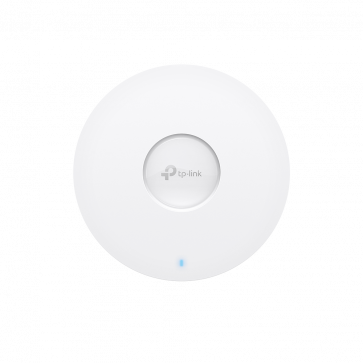

TP-Link Omada EAP670 AX5400 Ceiling Mount WiFi 6 Access Point
* TP-Link Wireless Access Point
* Interface:1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
* Wireless Standards:IEEE 802.11ax/ac/n/g/b/a
* Frequency:2.4GHz, 5GHz
* Mounting: Ceiling /Wall Mounting (Kits included)
Availability: In stock
Highlights:
* Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).
* Integrated into Omada SDN, supporting centralized cloud Management, ZTP*, and more.
* 160 MHz Channel double the data at peak transmission times on a single stream.
* Advanced features: Supports seamless roaming§,Omada Mesh, and more.
* Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
TP-Link Omada EAP670 Access Point Specifications:
HARDWARE FEATURES
* Interface:1× 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
* Button:Reset
* Power Supply:
• 802.3at PoE
• 12V/2A DC (Power Adapter included)
* Power Consumption:
• EU: 20.8 W
• US: 22.3 W
* Dimensions ( W x D x H ):8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
* Antenna Type:
- Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi
* Bluetooth: Yes
* Mounting:
• Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
* Coverage: 140㎡(1500 ft²)
* Wireless Client Capacity: 250+
* Concurrent Clients: 250+
* Wireless Standards:IEEE 802.11ax/ac/n/g/b/a
* Frequency:2.4GHz, 5GHz
* Signal Rate
- 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
* Transmit Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz)
* Wireless Functions:
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
* Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
* Omada App:Yes
* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
* Cloud Access:Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
* Email Alerts: Yes
* LED ON/OFF Control: Yes
* Management MAC Access Control: Yes
* SNMP: v1, v2c, v3
* System Logging Local/Remote Syslog: Local/Remote Syslog
* SSH: Yes
* Web-based Management: HTTP/HTTPS
* L3 Management: Yes
* Multi-site Management: Yes
* Management VLAN: Yes
* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
* Certification: CE, FCC, RoHS
* Package Contents
- EAP670
- Power Adapter
- Ceiling/Wall Mounting Kits
- Installation Guide
* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
