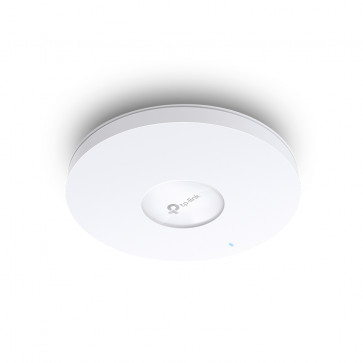

TP-Link Omada EAP650 AX3000 Ceiling Mount WiFi 6 Access Point

Highlights：

* Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

* High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

* Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

* 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.

* Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.

* Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.

* PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

* Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

TP-Link Omada EAP650 Access Point Specifications:

HARDWARE FEATURES

* Interface：1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE)

* Button：Reset

* Power Supply：
• 802.3at PoE
• 12V DC (Power Adapter included)(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC)
• 48V Passive PoE

* Power Consumption：
• EU: 13.5 W
• US: 14.7 W

* Dimensions ( W x D x H )：6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

* Antenna Type：
- Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

* Bluetooth: Yes

* Mounting:
• Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

WIRELESS FEATURES

* Coverage: 140㎡(1500 ft²)

* Wireless Client Capacity: 250+

* Concurrent Clients: 250+

* Wireless Standards：IEEE 802.11ax/ac/n/g/b/a

* Frequency：2.4GHz, 5GHz

* Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps

* Transmit Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)

* Wireless Functions：
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- HE160 (160 MHz Bandwidth)‡
- Seamless Roaming §
- Omada Mesh§
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client

* Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT
* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

* Certification: CE, FCC, RoHS

* Package Contents
- EAP650
- Power Adapter
- Ceiling/Wall Mounting Kits
- Installation Guide

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
