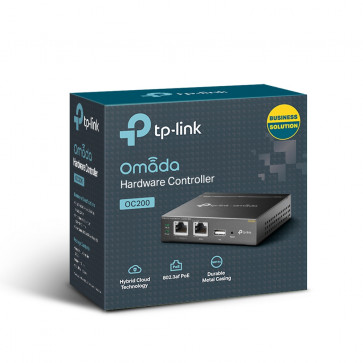

TP-Link Omada OC200 Hardware Controller

Highlights:

* Centralized Management: Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers.

* Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.

* On-Premises Management: Locally monitor and manage devices with the ultimate security and stability.

* Industry-Leading Hardware Design: A powerful chipset, durable metal casing, USB 2.0 port for auto backup, and two Fast Ethernet ports.

* Flexible Power Supply: 802.3af/at PoE or Micro USB (DC 5V/Minimum 1A) for flexible installation.

* Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see the real-time network status and traffic distribution.

* Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.

* Easier Network Maintenance: WiFi heatmap simulator, visualizable network report, and batch & multi-site management benefit network maintenance.

TP-Link Omada OC200 Hardware Controller Specifications:

HARDWARE FEATURES

* Interface:
- 2 × 10/100Mbps Ethernet Port
- 1 × USB 2.0 Port for configuration backup
- 1 × Micro USB Port for power

* Power Supply: 802.3af/at PoE or Micro USB（DC 5V/1A）

* Dimensions: 3.9 × 3.9 × 1.0in.(100 × 98 × 25mm)

MANAGEMENT

* Omada App: Yes

* Centralized Management
• Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
• Up to 1,000 Clients

* Cloud Access: Yes

* L3 Management: Yes

* Multi-site Management: Yes

* Management Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

OTHERS

* Certification: CE, FCC, RoHS

* Package Contents
• Omada Hardware Controller OC200
• Quick Installation Guide
• Ethernet Cable

* System Requirements: Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
