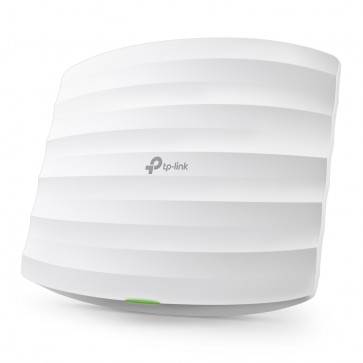

TP-Link Omada EAP115 N300 Wireless N Ceiling Mount Access Point

Highlights：

* Omada cloud software controller center controls hundreds of EAPs

* Powered by standard 802.3af PoE for convenient installation

* Simple mounting design for easy attachment to a wall or ceiling

* Web captive portal provides a professional and convenient way to get the Wi-Fi access

* Advertising page, Facebook Wi-Fi and SMS authentication help to boost your business

* Enterprise-class Wi-Fi security help to lower network security threats

* Multi-SSIDs separates the different groups of users with different resource privileges

* Supports management VLAN for an enhanced network management

TP-Link Omada EAP115 Access Point Specifications：

HARDWARE FEATURES

* Interface: Fast Ethernet (RJ-45) Port x 1(IEEE802.3af PD)

* Physical Security Lock: Kensington Lock Slot

* Button：Reset

* Power Supply：802.3af PoE or external 9VDC/0.6A power supply

* Power Consumption： 2.8 W

* Dimensions ( W x D x H )：7.5×6.7×1.2 in (189.5×170.5×29.7mm)

* Antenna Type：2 x Internal 4dBi Omni

* Mounting：Ceiling /Wall Mounting(mounting kit included)

WIRELESS FEATURES

* Coverage: 60㎡(650ft²)

* Wireless Client Capacity：100+

* Concurrent Clients：100+

* Wireless Standards：IEEE 802.11n/g/b

* Frequency：2.4-2.4835GHz

* Signal Rate
- 11n: Up to 300Mbps*
- 11g: Up to 54Mbps*
- 11b: Up to 11Mbps*

* Reception Sensitivity
- 300M: -71dBm@10% PER
- 150M: -75dBm@10% PER
- 54M: -78dBm@10% PER
- 11M: -93dBm@8% PER
- 6M: -92dBm@10% PER
- 1M: -96dBm@8% PER

* Transmit Power：<21dBm max.

* Wireless Functions：
- Multiple SSIDs (Up to 8 SSIDs)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (adjustable on 1 dBm step)
- QoS (WMM)
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID, AP, and Client

* Wireless Security
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

* Omada Controller Software: Yes

* Cloud Access: Yes (Through OC300, OC200, or Omada Software Controller)

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c

* System Logging Local/Remote Syslog: Local and Remote Syslog

* Telnet: Yes

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

OTHERS

* Certification: FCC, RoHS

* Package Contents
- 300Mbps Wireless N Ceiling Mount Access Point EAP115
- Power Adapter
- Mounting Kit
- Installation Guide

* System Requirements: Microsoft Windows 11/10/8/7/Vista/XP, Linux

* Environment
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
