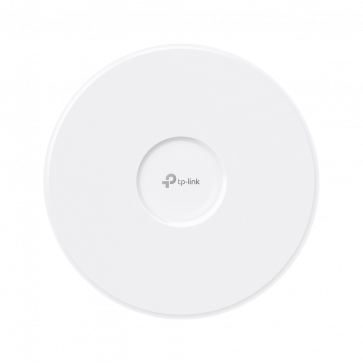

TP-Link Omada EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Highlights:

* BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.†

* 1× 10G Port: Unlock the full potential of Wi-Fi 7.

* Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.

* 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.‡

* Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.‡

* Advanced Functions：Supports centralized management, mesh, and AI roaming.

TP-Link Omada EAP773 Access Point Specifications:

HARDWARE FEATURES

* Interface：1× 10G Ethernet Port

* Button：Reset

* Power Supply：802.3at PoE or 12V/2.5A DC

* Power Consumption：
Support Smart Power Comsuption Management
• 25.94 W (802.3bt, full functionality);
• 22.57 W (12/2.5A, full functionality);
• 23.4 W (802.3at decrease 6GHz Power);
• 10.1 W (802.3af, radio off, only main chip and LAN working)

* Dimensions ( W x D x H )：8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

* Antenna Type：
- Internal Omni
• 2.4 GHz: 2× 3.0 dBi
• 5 GHz: 2× 3.0 dBi
• 6 GHz: 2× 3.0 dBi

* Bluetooth: 1 × 4.0 dBi, Bluetooth 5.2(*Firmware update may be required.)

* Mounting:
• Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

* Coverage: 140㎡(1500 ft²)

* Wireless Client Capacity: 380+

* Wireless Standards：IEEE 802.11a/b/g/n/ac/ax/be

* Frequency：6 GHz, 5 GHz, and 2.4 GHz

* Signal Rate: 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†

* Transmit Power
< 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)

* Wireless Functions：
• MLO
• 4K-QAM
• MU-MIMO
• HE320
• Mesh
• BSS Coloring
• OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

* Wireless Security
• Captive Portal Authentication
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Yes

* Web-based Management: Yes

OTHERS

* Certification: CE, FCC, RoHS, IC

* Package Contents
- EAP773
- Installation Guide
- Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.

* Environment
- Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
- Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
- Operating Humidity: 10%–90% non-condensing;
- Storage Humidity: 5%–90% non-condensing;
