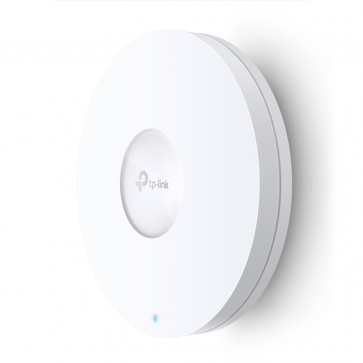

TP-Link Omada EAP660 HD AX3600 High Density Multi-Gigabit Ceiling Mount Wi-Fi 6 Access Point

Highlights：

* Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†

* High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡

* Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.

* Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

* 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.

* Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△

* PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.

* Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

TP-Link EAP660 HD AX3600 Access Point Specifications:

HARDWARE FEATURES

* Interface：1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

* Button：Reset

* Power Supply：
• 802.3at PoE
• 48 V Passive PoE
• 12 V /DC

* Power Consumption：
• EU: 18.5 W
• US: 21.5 W

* Dimensions ( W x D x H )：9.6 × 9.6 × 2.5 in.(243 × 243 × 64 mm)

* Antenna Type：
- Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi

* Mounting：
• Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

* Wireless Client Capacity: 1,000+

* Wireless Standards：IEEE 802.11ax/ac/n/g/b/a

* Frequency：2.4GHz, 5GHz

* Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 1148 Mbps

* Wireless Functions：
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- MU-MIMO
- Omada Mesh
- Seamless Roaming
- Omada Mesh
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client

* Wireless Security
- Captive Portal Authentication**
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

* Transmit Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz)

MANAGEMENT
* Omada App：Yes

* Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller

* Cloud Access：Yes, Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

* Certification: CE, FCC, RoHS

* Package Contents
• EAP660 HD
• Power Adapter
• Ceiling / Wall Mounting Kits
• Installation Guide

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
