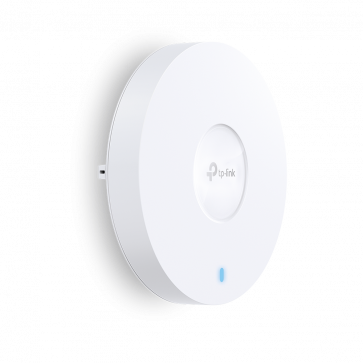

TP-Link Omada EAP690E HD AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point

Highlights:

* Ultra-Fast Wi-Fi 6E Speeds: Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps WiFi speeds, bringing more bandwidth, faster speeds, near-zero latency and eliminates interference.†

* High-Density Connectivity up to 2000 Clients: Improves WiFi performance in dense environments with OFDMA, MU-MIMO, BSS Coloring, and powerful chipset.†

* 10G Wired Connection: Boosts overall throughput with a 10 Gbps Ethernet port supported by an 802.3bt PoE++ power supply.

* 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.

* Advanced Wireless Tech: Supports Mesh Wi-Fi, Seamless Roaming§, WPA3, Band Steering, Load Balancing, and Airtime Fairness technologies.

* Smart Antennas: Professional antennas with high-power amplifiers provide strong wireless coverage in high-density environments.

* Integrated into Omada SDN: Supports Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.*

* Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.

TP-Link Omada EAP690E HD AXE11000 Access Point Specifications:

HARDWARE FEATURES

* Interface：1× 10Gbps Ethernet Port (supports IEEE802.3bt PoE++)

* Button：Reset

* Power Supply：802.3bt PoE or 12V/4.5A DC

* Power Consumption：
- Supports Smart Power Consumption Management
US:
- 50.5 W (802.3bt, full functionality);
- 44.2 W (12/4.5A, full functionality);
- 25.5 W (802.3at, 5GHz-2 and 6 GHz off);
- 12.95 W (802.3af, radio off, only main chip and LAN working)

* Dimensions ( W x D x H )：11.0 × 11.0 × 2.3 in (280 × 280 × 59.1 mm)

* Antenna Type：
- Internal Omni
• 2.4 GHz: 4 × 4.0 dBi
• 5 GHz_1: 4 × 5.0 dBi (Smart Antennas)
• 5 GHz_2: 4 × 5.5 dBi (Smart Antennas)
• 6 GHz: 4 × 5.0 dBi

* Bluetooth: Yes

* Mounting:
• Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

* Coverage: 200㎡ (2150 ft²)

* Wireless Client Capacity: 2000+

* Concurrent Clients: 2,040+

* Wireless Standards：IEEE 802.11ax/ac/n/g/b/a

* Frequency：6 GHz, 5 GHz, and 2.4 GHz

* Signal Rate:
• 6 GHz:4804 Mbps
• 5 GHz_1: 2402 Mbps
• 5 GHz_2: 2402 Mbps
• 2.4 GHz: 1148 Mbps

* Transmit Power
• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz_1, EIRP)
<30 dBm(5 GHz_2, EIRP)
<23 dBm(6 GHz, EIRP)

• FCC:
<26 dBm (2.4 GHz)
<26 dBm (5 GHz_1)
<26 dBm (5 GHz_2)
<25 dBm (6 GHz)

* Wireless Functions：
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

* Wireless Security
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

OTHERS

* Certification: CE, FCC, RoHS, IC

* Package Contents
• EAP690E HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
