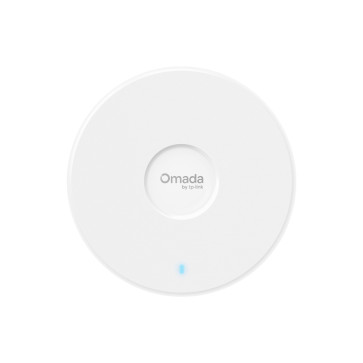

TP-Link EAP720 BE5000 Ceiling Mount Wi-Fi 7 Access Point

TP-Link Omada EAP720 Access Point Specifications:

HARDWARE FEATURES
-------------------------------------------------------------
* Interface：1× 2.5G Ethernet Port

* Button：Reset

* Power Supply：802.3at PoE or 12V/1.5A DC (Power Adapter Included)

* Max. Power Consumption
• 17.83 W (For PoE);
• 13.99 W (For DC)

* Dimensions ( W x D x H )：6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)

* Antenna：
• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi

* Mounting: Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES
-------------------------------------------------------------
* Coverage: 140㎡(1500 ft²)

* Wireless Client Capacity: 250+

* Wireless Standards：IEEE 802.11 a/b/g/n/ac/ax/be

* Frequency：2.4 GHz and 5 GHz

* Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)

* Wireless Functions：
• MLO‡
• 4K-QAM‡
• Seamless Roaming
• 240 MHz Bandwidth‡
• Mesh△
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:16(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

* Wireless Security
• Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

* Transmission Power
< 25 dBm (2.4 GHz)
< 25 dBm (5 GHz, UNII-1&UNII-4)
< 24 dBm (5 GHz, UNII-2&UNII-3)

MANAGEMENT
-------------------------------------------------------------
* Omada App：Yes

* Centralized Management
• Omada Central (Cloud-Based)
• Omada Hardware Controller
• Omada Software Controller

* Cloud Access：Yes. Require the use of Omada Controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Yes

* Web-based Management: Yes

OTHERS
-------------------------------------------------------------
* Certification: CE, FCC, RoHS, IC

* Package Contents
• Omada Wi-Fi 7 Ceiling Mount Access Point EAP720
• Installation Guide
• Ceiling/Wall/Juntion Box Mounting Kit
• Power Adapter

* Environment
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;
