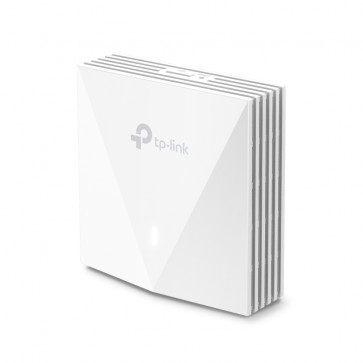

TP-Link EAP650-Wall AX3000 Wall Plate WiFi 6 Access Point

Highlights:

* Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.

* Higher Network Efficiency: Deliver data to more devices at the same time with less lag.

* Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.

* Gigabit Port: Connect wired devices with one downlink gigabit port.

* Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.

* Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.

* Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.

TP-Link EAP650-Wall AX3000 WiFi 6 Access Point Specifications:

HARDWARE FEATURES

* Interface：
• Uplink: 1× 10/100/1000 Mbps Ethernet Port
• Downlink: 1× 10/100/1000 Mbps Ethernet Port

* Physical Security Lock: No

* Button：Reset, LED

* Power Supply：802.3af/at PoE

* Power Consumption：
• EU: 11.5W

* Dimensions ( W x D x H )：86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in)

* Antenna Type：
- Dual-Band Antennas
• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi

* Mounting: Wall Plate Mounting (Kits included)

WIRELESS FEATURES

* Coverage: 40㎡(450 ft²)

* Wireless Client Capacity: 100+

* Concurrent Clients: 100+

* Wireless Standards：IEEE 802.11ax/ac/n/g/b/a

* Frequency：2.4GHz, 5GHz

* Signal Rate
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 574 Mbps

* Transmit Power
• CE:
<20 dBm (2.4GHz, EIRP)
<22 dBm (5GHz band1 & 2, EIRP)
<22 dBm (5GHz band3, EIRP)

* Wireless Functions：
• 16 SSIDs (Up to 8 SSIDs on each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming
• Beamforming
• Rate Limit
• Load Balance
• Airtime Fairness
• Band Steering
• Reboot Schedule
• Wireless Schedule
• RADIUS Accounting
• MAC Authentication
• Wireless Statistics
• Static IP/Dynamic IP

* Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

* Omada App：Yes

* Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller

* Cloud Access：Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

* Email Alerts: Yes

* LED ON/OFF Control: Yes

* Management MAC Access Control: Yes

* SNMP: v1, v2c, v3

* System Logging Local/Remote Syslog: Local/Remote Syslog

* SSH: Yes

* Web-based Management: HTTP/HTTPS

* L3 Management: Yes

* Multi-site Management: Yes

* Management VLAN: Yes

* Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

* Certification: CE, RoHS

* Package Contents
- AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall
- Installation Guide
- Mounting Kits

* System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

* Environment
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
